8
INSTALLATION INSTRUCTIONS
Electrical Requirements
A three-wire or four-wire, single phase
120/240-volt, 60-Hz., AC-only, electrical
supply is required on a separate 30-ampere
circuit, fused on both sides of the line. A
time-delay fuse or circuit breaker is
recommended.
This dryer is manufactured with the 3-wire,
frame-grounding conductor connected to the
NEUTRAL (center) of the wiring harness of
the terminal block. Do not have a fuse in the
neutral or grounding circuit. A fuse in the
neutral or grounding circuit could result in an
electrical shock.
Use a 4-conductor cord when the dryer is
installed in a mobile home or an area where
local codes do not permit grounding through
the neutral.

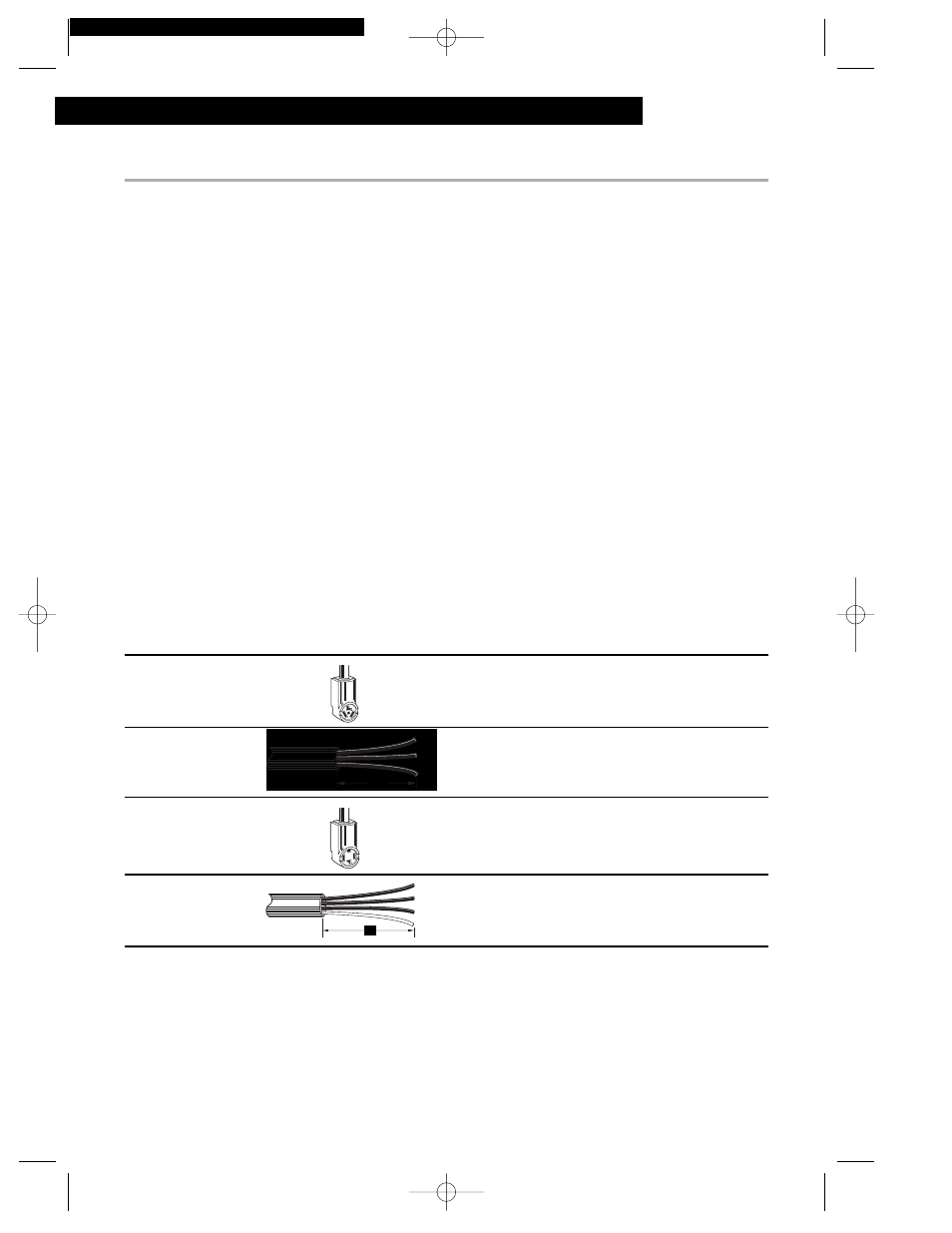

If Your Home Has:
3-wire electrical
receptacle
(NEMA Type 10-30R)
3-wire direct
4-wire electrical
receptacle
(NEMA Type 14-30R)
4-wire direct
A U.L.-listed, 120/240-volt
minimum, 30-amp., dryer
power supply cord.*
A fused disconnect or
circuit breaker box.*
A U.L.-listed, 120/240-volt
minimum, 30-amp., dryer
power supply cord.
A fused disconnect or
circuit breaker box.
11
And You Will Be
Connecting To:
14
16
9
3 1 / 2 "
5"
Electrical Connection Options
*If local codes do not permit the connection of a frame-grounding conductor to the neutral wire, see the
instructions for “Alternate Connection”.
Go To
Page:
5"
