12
2. Remove hold-down screw and terminal
block cover.
3. Attach a 3 ⁄
4
-inch, U.L.-listed, strain relief to
the hole below terminal block opening.
Strain relief should have a tight fit with
dryer cabinet and be in a horizontal
position. Put the direct wire cable through
the strain relief.
4. Loosen or remove terminal block screws.
Connect the neutral wire (white or center)
of direct wire cable under the center screw
of the terminal block.
• Place the hook-shaped end of the wire
over the terminal block screw. The open
side of the hook should face to the right.
Squeeze hook end of wire together to
form a loop.
Center silver-colored
terminal block screw
Neutral
wire
(white)
External ground
connector
Neutral grounding
wire (green/yellow)
3 ⁄
4
", U.L.-listed,
strain relief

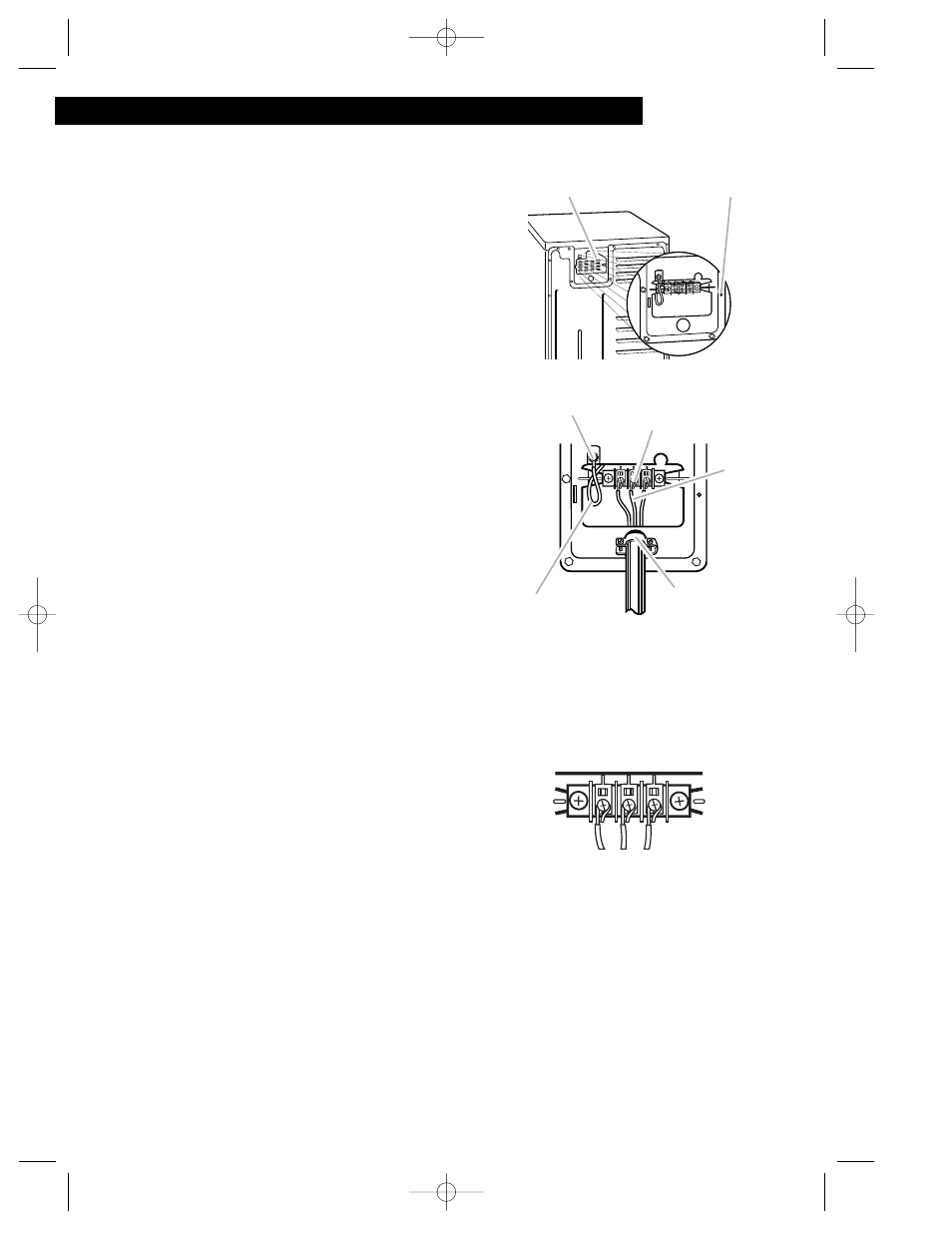

3-Wire Connection with Direct Wire
and Frame-Grounding Conductor
INSTALLATION INSTRUCTIONS
Terminal block cover Hold-down screw
