18

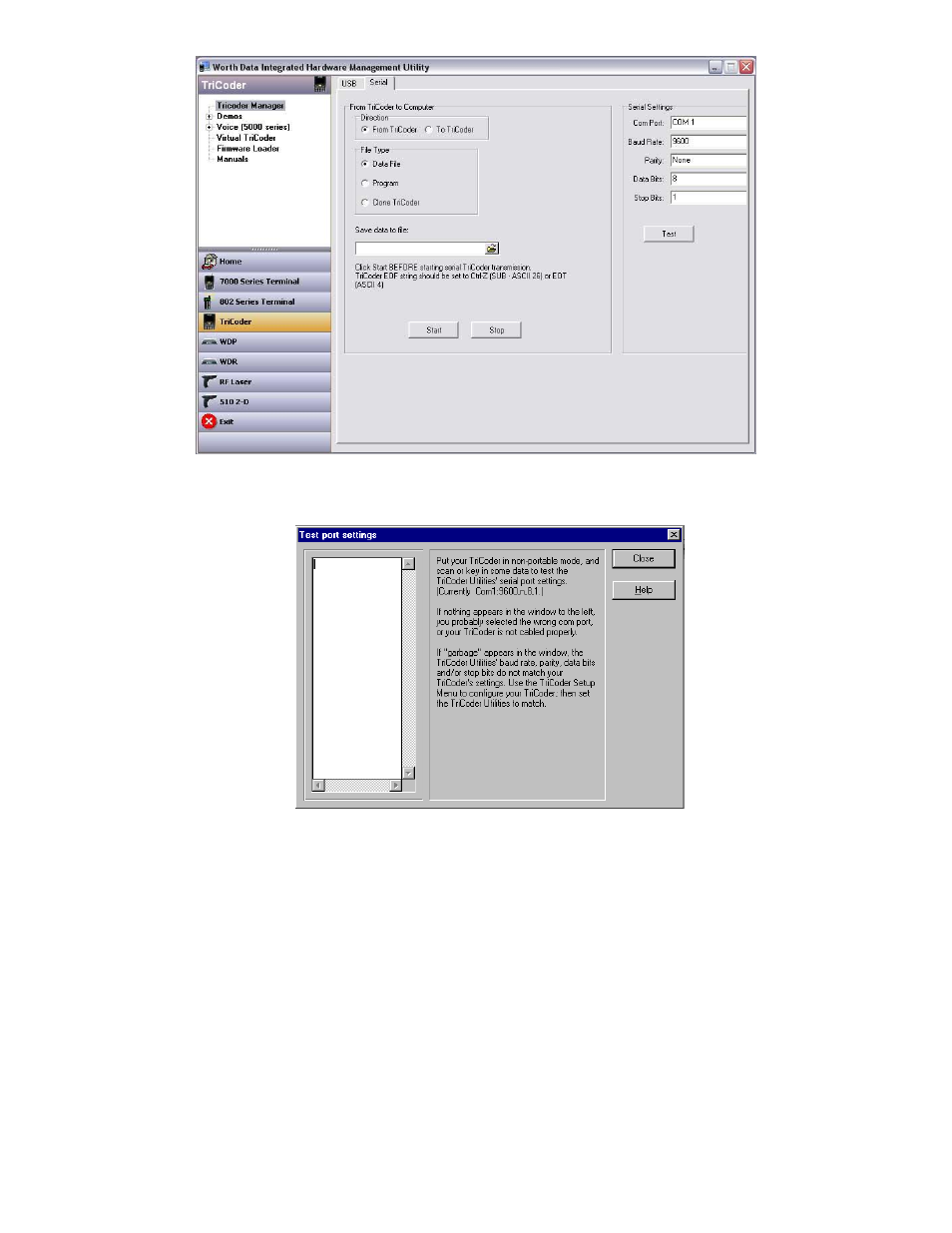

Hardware Utilities Serial Settings
Once the serial port configuration is finished, click on the "Test" button. Click on the test window so that a flashing cursor appears.
Scan the test label or, if you have no scanner, type 123 on the TriCoder keypad, then press the TriCoder ENTER key.
Hardware Utilities Serial Port Test Screen
You should see the data displayed both on the TriCoder display and in the test window on the PC. If you do not see the data displayed
on your PC, follow the Integrated Hardware Utilities suggestions on the screen, check your TriCoder Setup and try again. If you still
have problems, go to the Troubleshooting section of this manual. Otherwise, you are ready to move on with your data collection or
custom programming.
