Weider CORe 600 831.15715.0 User Manual
Page 7

7

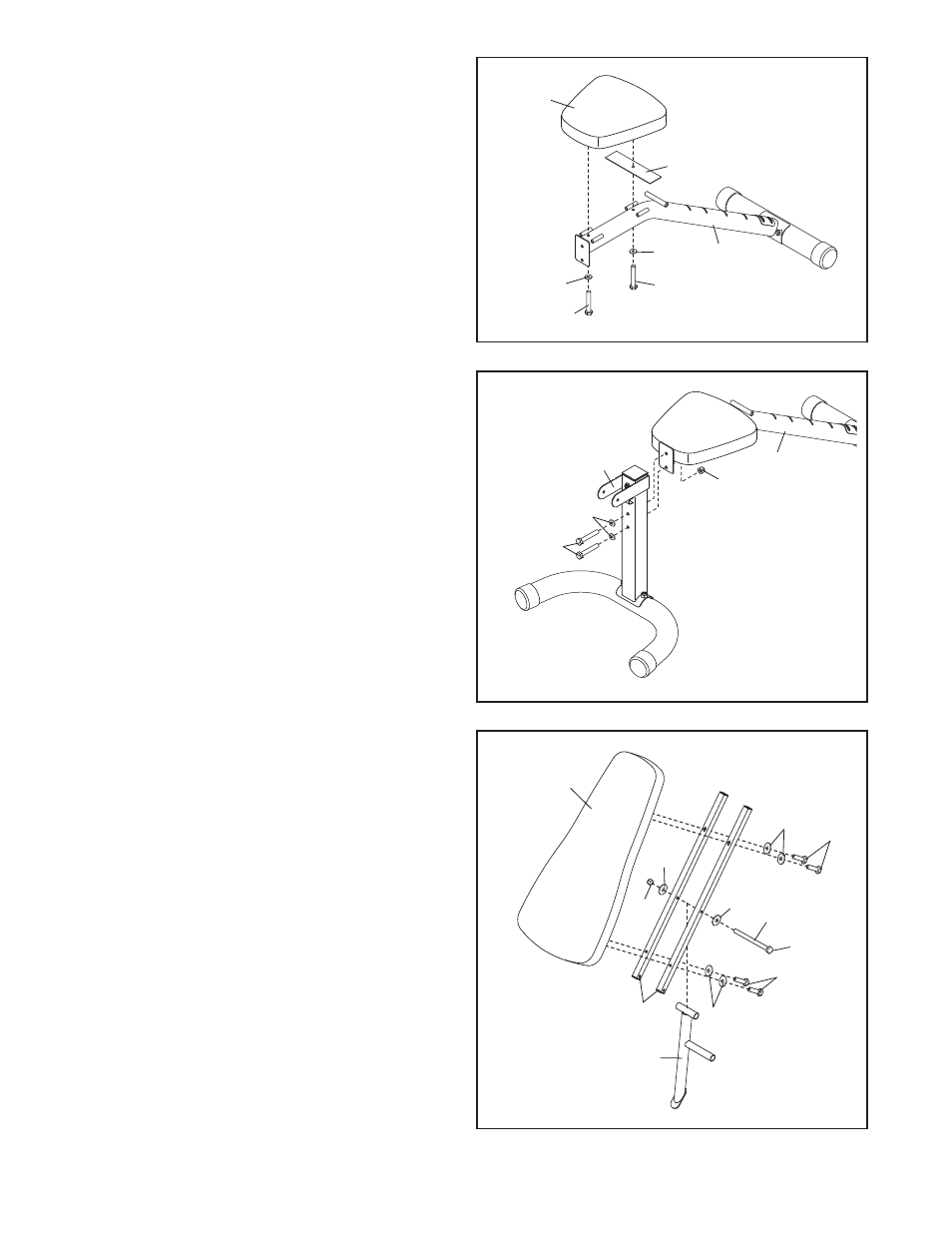

3.
Attach the Seat (18) and the Seat Bracket (38)
to the Frame (1) with two M6 x 80mm Screws
(48) and two M6 Washers (32).
3
4.
Attach the Front Leg (4) to the Frame (1) with
two M10 x 85mm Bolts (44), two M10 Washers
(55), and an M10 Nylon Locknut (42).
See steps 1 and 2. Tighten the M10 Nylon
Locknuts (42).
4
1
1
4
42
44
55
18
38
48
48
32
32
5.
Apply a portion of the included grease to an
M10 x 165mm Bolt (50). Attach the Backrest
Post (15) to the Backrest Frames (16) with the
Bolt, two M10 Washers (55), and an M10 Nylon
Locknut (42).
Do not tighten the Nylon
Locknut yet.
Attach the Backrest (19) to the Backrest
Frames (16) with four M6 x 40mm Screws (51)
and four M6 Washers (32).
Do not tighten the
Screws yet.
5
19
50
16
32
32
55
55
15
51
51
42
Grease
