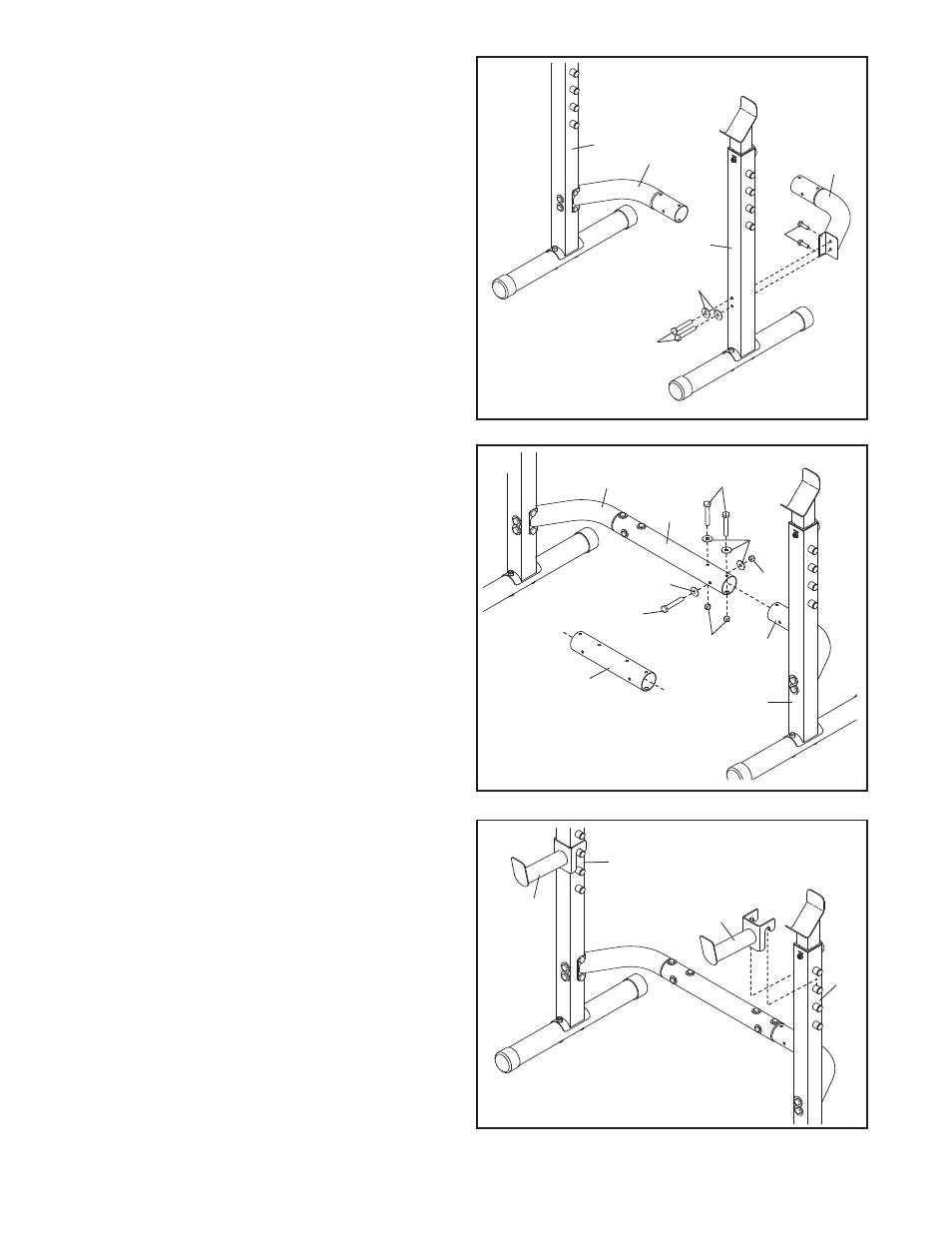

12. Attach a Connector (28) to the Left Upright (11)
with two M5 x 19mm Screws (52), two M10 x
90mm Bolts (45), and two M10 Washers (55).
Do not tighten the Screws yet.
Attach the other Connector (28) to the Right
Upright (10) in the same way.
13. Note: If you have Olympic weights, use the
longer Olympic Extension (8) for this step; if
you have standard weights, use the shorter
Standard Extension (7).
Attach the Olympic Extension (8) or the
Standard Extension (7) to the Connector (28)
on the Left Upright (11) with three M10 x 90mm
Bolts (45), four M10 Washers (55), and three
M10 Nylon Locknuts (42).
Attach the Olympic Extension (8) or the
Standard Extension (7) to the other
Connector (28) in the same way.
See step 12. Tighten the M5 x 19mm Screws
(52).
15. Make sure that all parts have been properly
tightened. The use of the remaining parts will
be explained in ADJUSTMENT, beginning on
the following page.
12
13
45
45
45
28
28
28
55
55
55
42
42
11
10
28
7
11
8
14
13
13
11
10
14. Set a Safety Spotter (13) on a set of pegs on
the Left Upright (11). Set the other Safety
Spotter (13) on a set of pegs on the Right
Upright (10).
Make sure that both Safety
Spotters are at the same height.
52
