Step 1: Installing the ECR Lock

CAUTION

DO NOT DRILL LOCK SECTION

OR INSTALL LOCK ON DOORS WITH OPENERS.
THE DOOR AND/ OR OPENER MAY BE DAM-
AGED IF THE OPENER IS USED WHILE THE
DOOR IS LOCKED.
NOTE: Common practice for doors with the odd
number of raised panels is to mount the lock towards
the right side of the section when looking out.
IMPORTANT: Remove all burrs from the drilled
holes before installing the lock to the section.

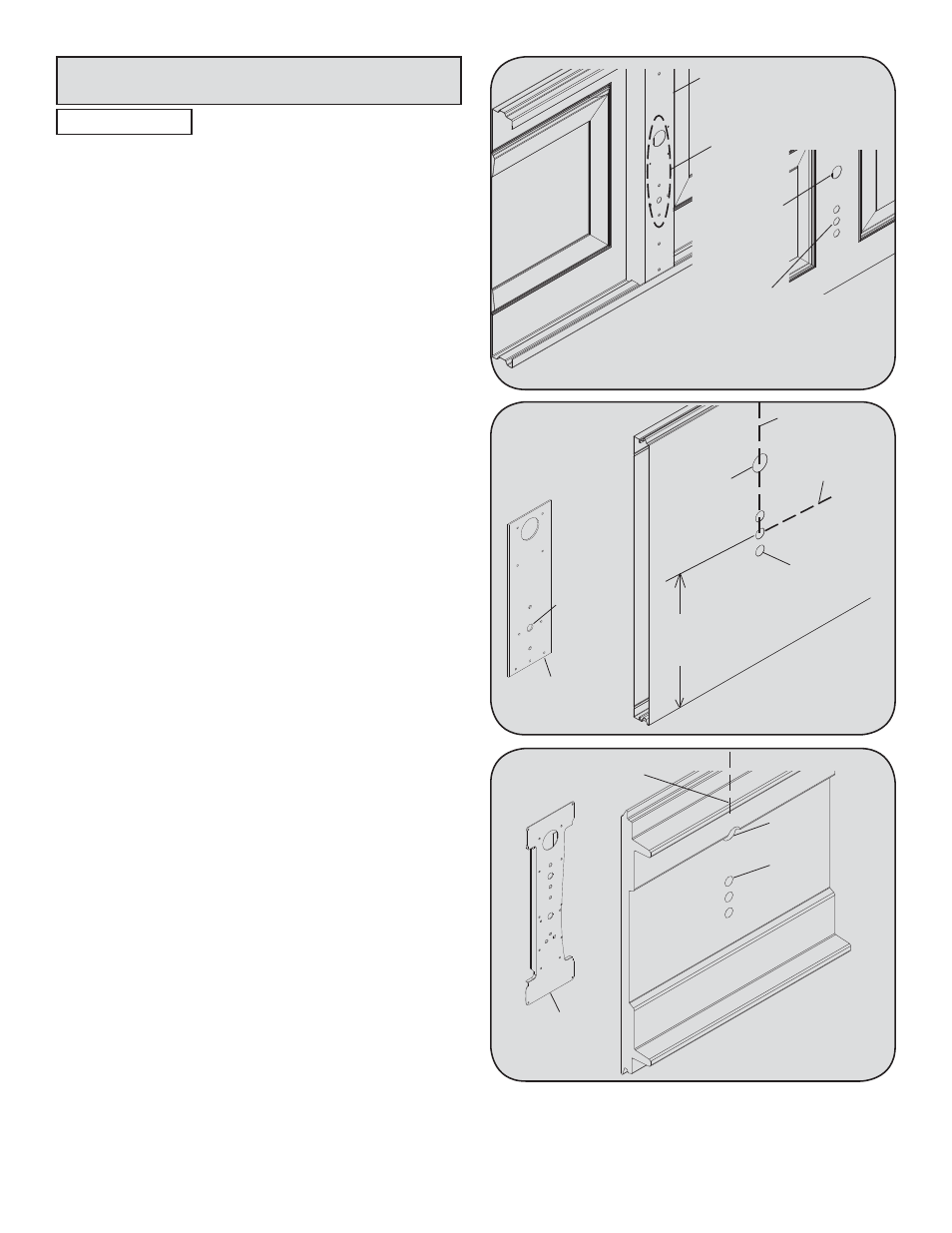

8000/8100/8200/PR9000 & PR9050 Series doors (see
Fig.1), place the lock section face down on (2) padded
sawhorses for a single car door or (3) padded sawhorses
for a double car door. locate the (4) hole pattern in the
center stile of the lock section. Use the (4) holes as a
template to drill (4) 1/8” holes through the section. Flip
the section over, face up. With the section face up, en-
large the (3) bottom holes to 3/4” diameter and the top
hole to 1-1/4” diameter, pay close attention not to drill
completely through the section into the center stile.
NOTE: Do not drill through or enlarge holes in the
center stile.

8300/8500/9700 Series & Wood doors (see Fig.2), place
the lock section face up on (2) padded sawhorses for a
single car door or (3) padded sawhorses for a double
car door. Locate the middle of the center stile, measure
the distance from the end of the section to the middle of
the center stile. Turn the section face down, transfer the
measurement and mark a light vertical line, then mark a
horizontal line at half the section height. Align the 7/16”
diameter hole of the lock backup plate at the intersection
point of the horizontal and vertical marks, use the lock
backup plate as a template to mark the (4) holes, remove
the lock backup plate and drill the (3) bottom holes to
3/4” diameter and the top hole to 1-1/4” diameter, drilling
all (4) holes completely through the section.

9000 Series doors (see Fig.3), place the lock section
face up on (2) padded sawhorses for a single car door or
(3) padded sawhorses for a double car door. Locate the
middle of the center stile, measure the distance from the
end of the section to the middle of the center stile. Turn
the section face down, transfer the measurement and mark a light vertical line. Align the center of the lock stile with
vertical mark, use the lock stile as a template to mark the (4) holes, remove the lock stile and drill the (3) bottom
holes to 3/4” diameter and the top hole to 1-1/4” diameter, drilling all (4) holes completely through the section.
