L OW- P R O F I L E

A N D

2 4 " ( 6 1 0 )

H O O D S

Always install a roof or wall cap if you are not
installing a remote blower. Connect 8" (203)
round metal ductwork for low-profile hoods or
10" (254) round metal ductwork for 24" (610)
deep hoods to the cap and work back towards
the hood. Use duct sealing tape on joints
between ductwork sections.

IMPORTANT NOTE: Do not use ducting
smaller than 8" (203).

Wolf Pro wall hoods come standard with a
backdraft damper included in the transition
assembly. Local codes may require the use of
an additional backdraft damper. Contact your
local HVAC professional for specific require-
ments. In cold weather installations, a back-
draft damper is necessary to minimize the
backflow of cold air into the room.

Local building codes may require the use of
make-up air. Consult your local HVAC profes-
sional for specific requirements in your area.

Dimensions in parentheses are in
millimeters unless otherwise specified.

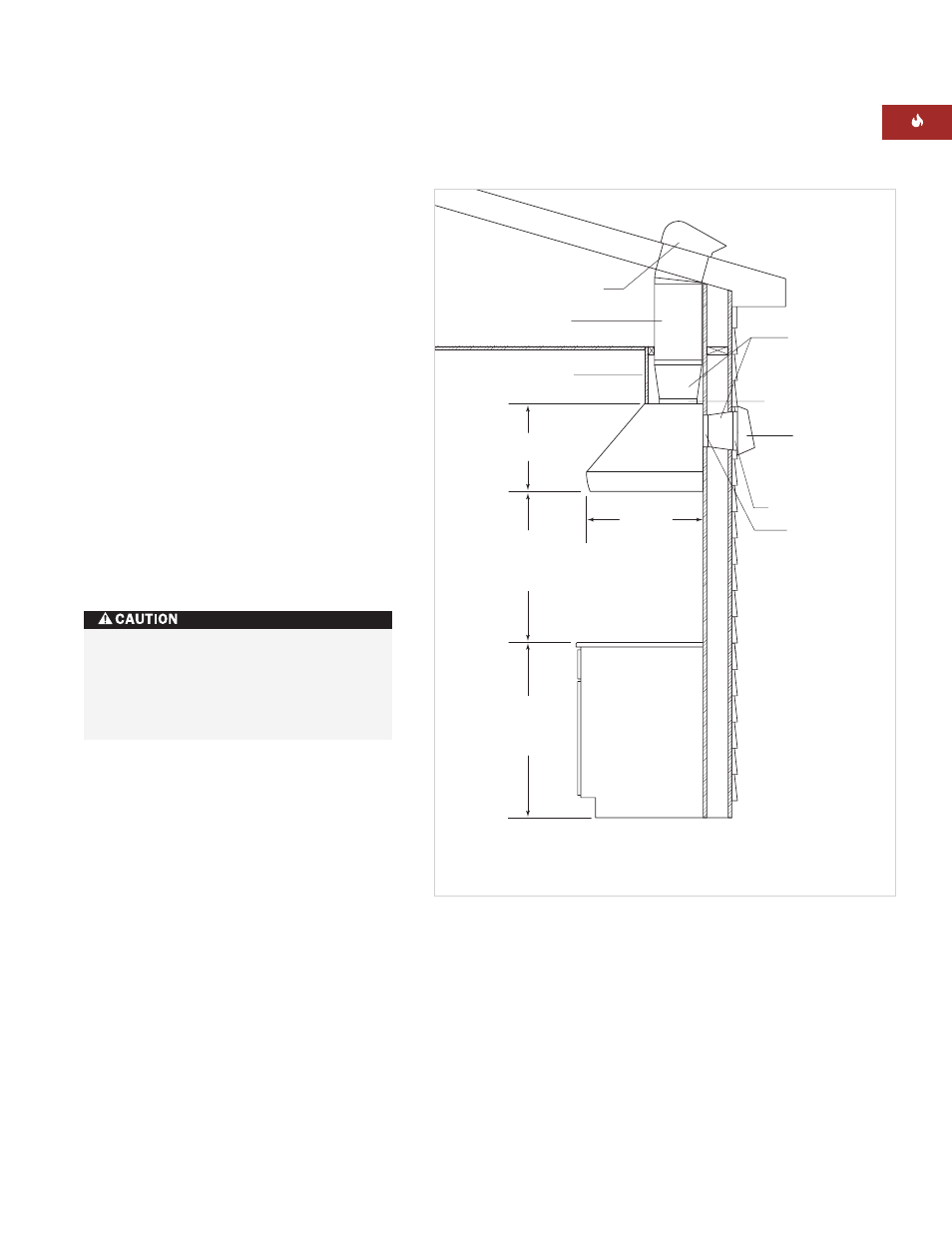

DUCTWORK INSTALLATION

THROUGH ROOF

24"

(610)

DEPTH OF HOOD

ROOF CAP OR REMOTE BLOWER

10" ROUND DUCT

SOFFIT OR CABINET

OR DUCT COVER

WALL CAP

OR REMOTE BLOWER

*HORIZONTAL DISCHARGE IS APPLICABLE ON 24" (610) DEEP WALL HOODS USED WITH

WBLOWER-60INT, WBLOWER-120INT OR ANY WOLF REMOTE BLOWER. WBLOWER-90INT

AND IN-LINE BLOWERS ARE NOT FOR USE IN HORIZONTAL DISCHARGE APPLICATIONS.

DUCTWORK INSTALLATION

THROUGH WALL

DISCHARGE COLLAR

HORIZONTAL

DISCHARGE*

VERTICAL DISCHARGE

TRANSITION

"W x 9"D TO 10" ROUND

10"H (INCLUDING FLANGES)

30"

36"

(762–914)

COUNTERTOP

TO BOTTOM OF

VENTILATION HOOD

36"

(914)

STANDARD

FLOOR TO

COUNTERTOP

HEIGHT

18"

(457)

HEIGHT OF HOOD

WALL HOOD

To reduce the risk of fire and electric
shock, install this ventilation hood only
with a blower manufactured by Wolf.
Blower model numbers are listed on
page 20.

I N S TA L L AT I O N

I N S T R U C T I O N S

Ducting options for 24" (610) deep wall hoods
