5
Dimensions in parentheses are in
millimeters unless otherwise specified.
I N S TA L L AT I O N
I N S T R U C T I O N S
10"
(254)
OVERALL
HEIGHT
OVERALL WIDTH
4"
(102)
22"
(559)
OVERALL DEPTH
12"
(305)
2"
(51)
3
/
4
"
(19)
DIAMETER
OF RAIL
OVERALL WIDTH
4"
(102)
24"
(610)
OVERALL DEPTH
12"
(305)
18"
(457)
OVERALL
HEIGHT
2"
(51)
3
/
4
"
(19)
DIAMETER
OF RAIL
OVERALL WIDTH
27"
(686)
OVERALL DEPTH
12"
(305)
18"
(457)
OVERALL
HEIGHT
2"
(51)
4"
(102)
3
/
4
"
(19)
DIAMETER
OF RAIL

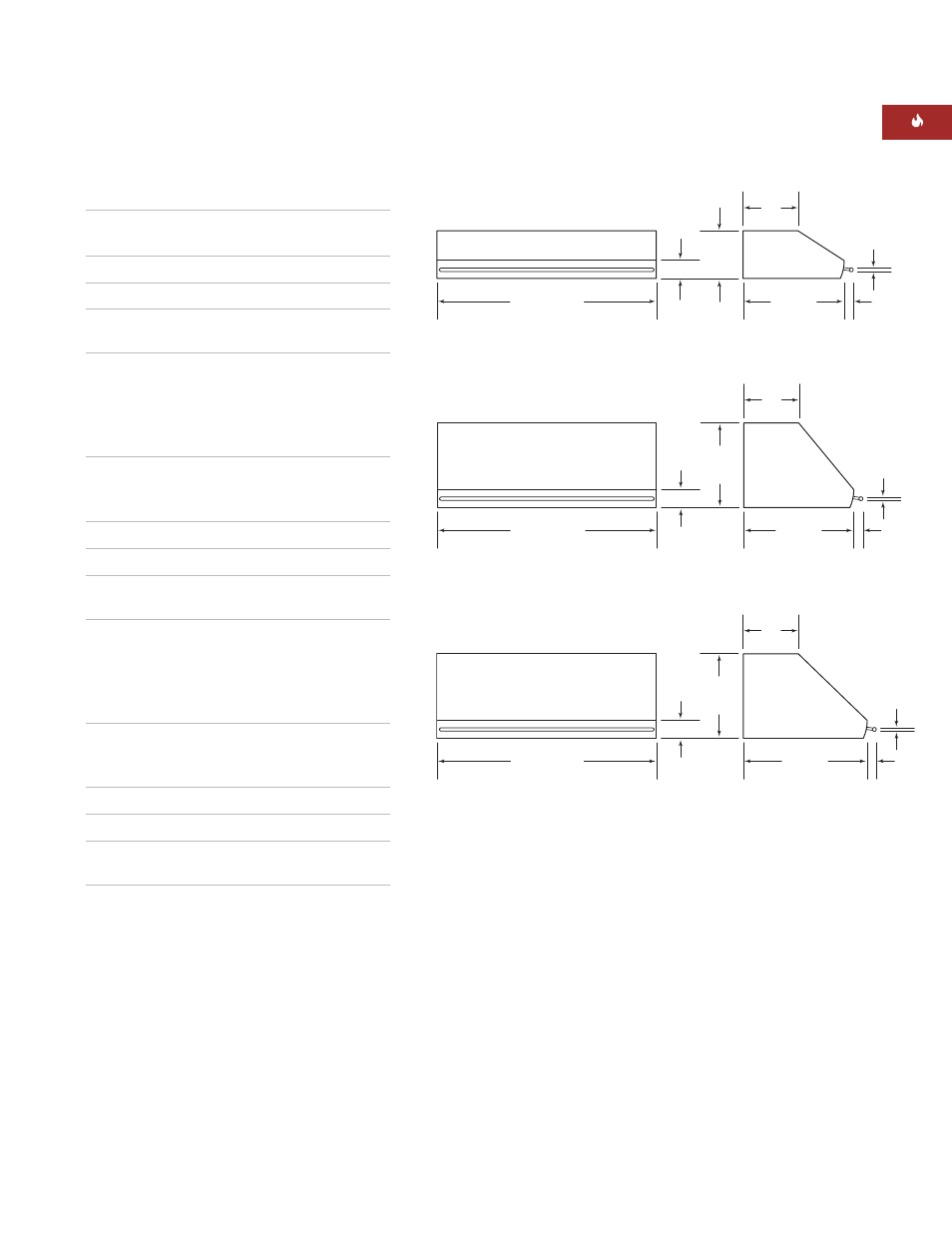

OV E R A L L
D I M E N S I O N S
L O W - P R O F I L E W A L L H O O D S
Overall Widths
30" (762), 36" (914),
42" (1067) and 48" (1219)
Overall Height
10" (254)
Overall Depth (excluding rail)
22" (559)
Shipping Weight (shell only)
39–55 lbs
(18–25 kg)
Dimensions may vary to ±
1
/
8
" (3).
2 4
"
( 6 1 0 ) D E E P W A L L H O O D S
Overall Widths
30" (762), 36" (914),
42" (1067), 48" (1219), 54" (1372),
60" (1524) and 66" (1676)
Overall Height
18" (457)
Overall Depth (excluding rail)
24" (610)
Shipping Weight (shell only)
67–126 lbs
(30–57 kg)
Dimensions may vary to ±
1
/
8
" (3).
2 7
"
( 6 8 6 ) D E E P W A L L H O O D S
Overall Widths
30" (762), 36" (914),
42" (1067), 48" (1219), 54" (1372),
60" (1524) and 66" (1676)
Overall Height
18" (457)
Overall Depth (excluding rail)
27" (686)
Shipping Weight (shell only)
69–128 lbs
(31–58 kg)
Dimensions may vary to ±
1
/
8
" (3).
Low Profile Wall Hood
shown with (R) rail option
24" (610) Deep Wall Hood
shown with (R) rail option
27" (686) Deep Wall Hood
shown with (R) rail option
