STEP 1
UNPACKING DOORS
Before removing the door from any packaging, inspect the packaging for visible signs of damage. If damage is
noted, file a freight claim with the freight company immediately. Remove the door from the packaging.
Do not cut tape that holds door in a roll. You will be told in
STEP #7 when to cut the tape.
No guarantee will be given by Wayne-Dalton if the door is not installed as instructed. Please review all
instructions thoroughly before starting installation. For proper operation, follow these instructions step by step.
Right and Left hand is determined by facing the door opening, on the coil
side.
STEP 2
CHECKING THE DOOR OPENING
Verify the opening measurements with the door packing slip. Consult the factory if the actual opening width varies
from that shown on the packing slip by more than 2 inches. Check to make certain that the door opening is square
and plum and that the floor is level. Check to be certain there is sufficient clearance from the opening to the ceiling
and the sidewalls (see Required Clearances below).

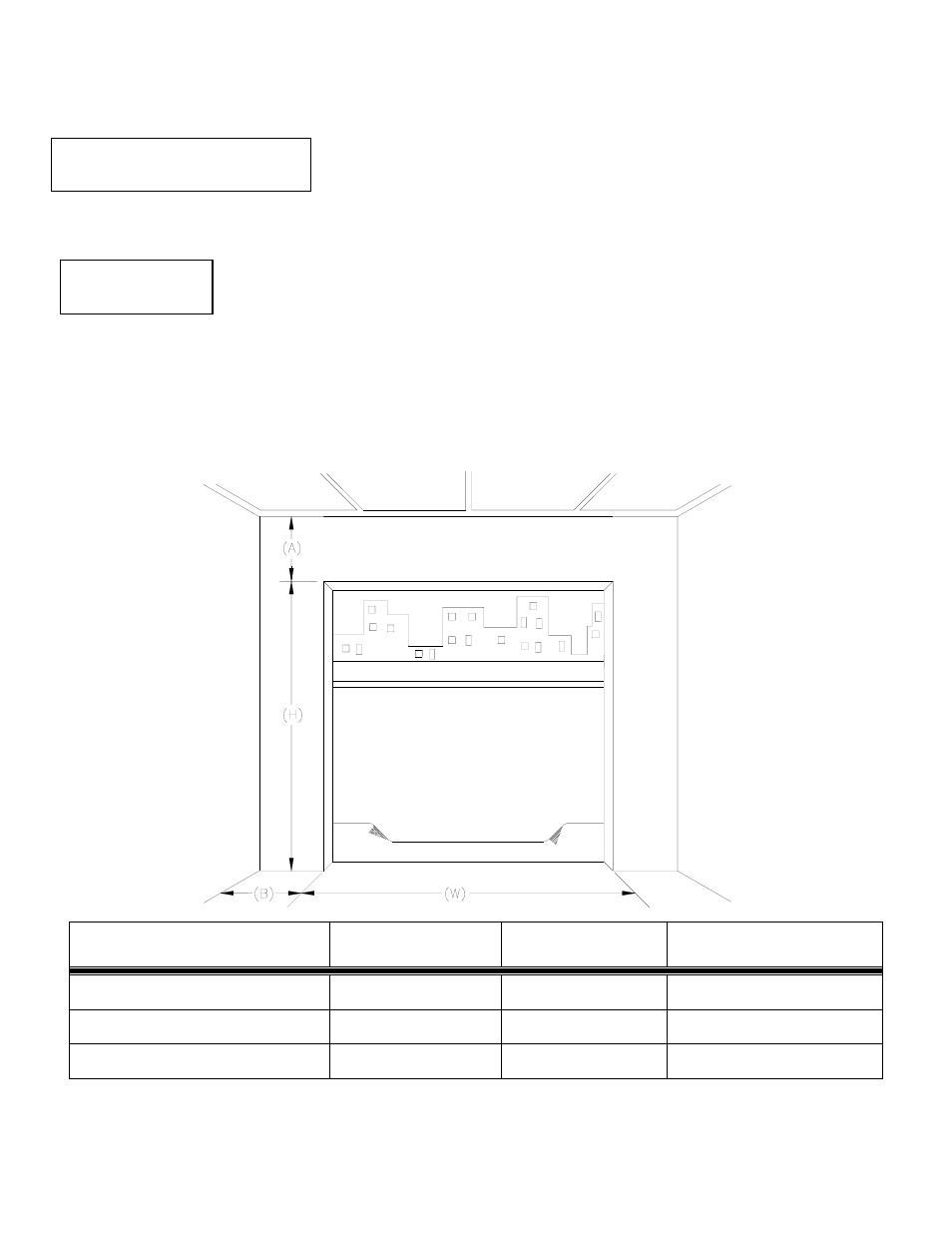

OPENING HEIGHT HEADROOM (A)
SIDE ROOM (B)
STEEL JAMBS
SIDE ROOM (B)
MASONRY JAMBS
UP TO 6’8” HIGH 13” 4-1/2” 6”
FROM 6’8-1/4” TO 8’ HIGH 14” 4-1/2” 6”
OVER 8’ HIGH 16” 4-1/2” 6”
NOTE:
IMPORTANT!
REQUIRED CLEARANCES - MINIMUM INDICATED
