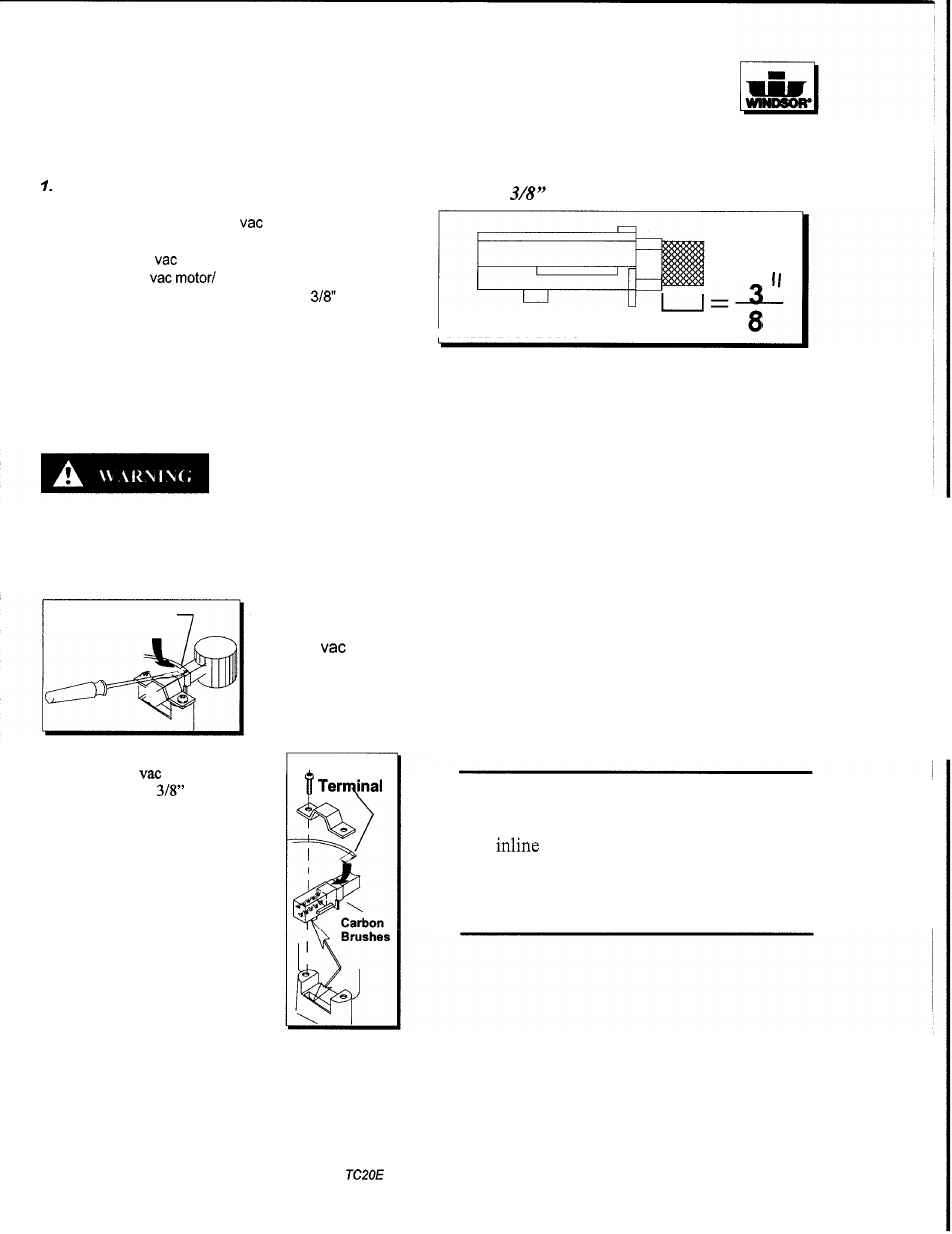

MAINTENANCE

VACUUM

MOTOR

2.

3.

4.

After the machine has been used for any wet pick-
up, allow the vacuum motor to

run

1-2 minutes, to

help reduce moisture build-up in the vacuum mo-
tor. Drying out the vacuum motor after each use
will extend the life of your vacuum motor.

Disconnect battery leads and remove batteries

from compartment.

Remove

(6)

bolts holding

motor/ plate

assembly to recovery tank.
Disconnect

motor lead from connector

and

lift

out

plate assembly.

Check motor brushes. When wom to

replace

both brushes.

Hazardous Voltage. Shock can result. Discon-
nect batteries before working on machine. Only

qualified personnel should work inside ma-
chine.

Wire Terminal

Important:

Replace carbon

motor brushes

if worn down

to

in length.

These brushes wear quicker

as

the

length shortens due to increased
heat.
Spring inside brush housing will
damage motor if brushes are al-
lowed to completely wear away

Note: Place stop

in groove.

Important:

When replacing
carbon

motor

brushes loosen wire

terminal

BEFORE

re-

moving

screws

on

bracket.

Wire

NOTE: Periodically check the length of the car-

bon brushes. Replace carbon brushes which are
less than

long.

I

PART NO. 14695

BRUSH

Brush

Installation:

1.

Slide brush or pad driver under drive plate.

2.

Align one metal lug on the brush or
pad driver with the scrub deck sight hole and a
keyhole in the drive plate.

3.

Raise the brush or pad driver upward
and twist clockwise until locked.

Brush

Removal:

1.

Raise brush or pad driver off floor.

2.

Reach under brush or pad driver and rotate
so

that the metal lug in the drive plate is visible

through the scrub deck sight hole.

3.

Quickly twist brush or pad driver counterclockwis
to release.

SOLUTION STRAINER

1.

An

solution strainer is located under chassis

behind left wheel. Remove sediment bowl and

screen periodically and rinse clean with hot water.
Be careful not to misplace the gasket.

8

98447 7/1/97
