Part number 550-110-266/0601
5
GOLD GV Series 3 & 4 — Z-Vent II Venting Supplement

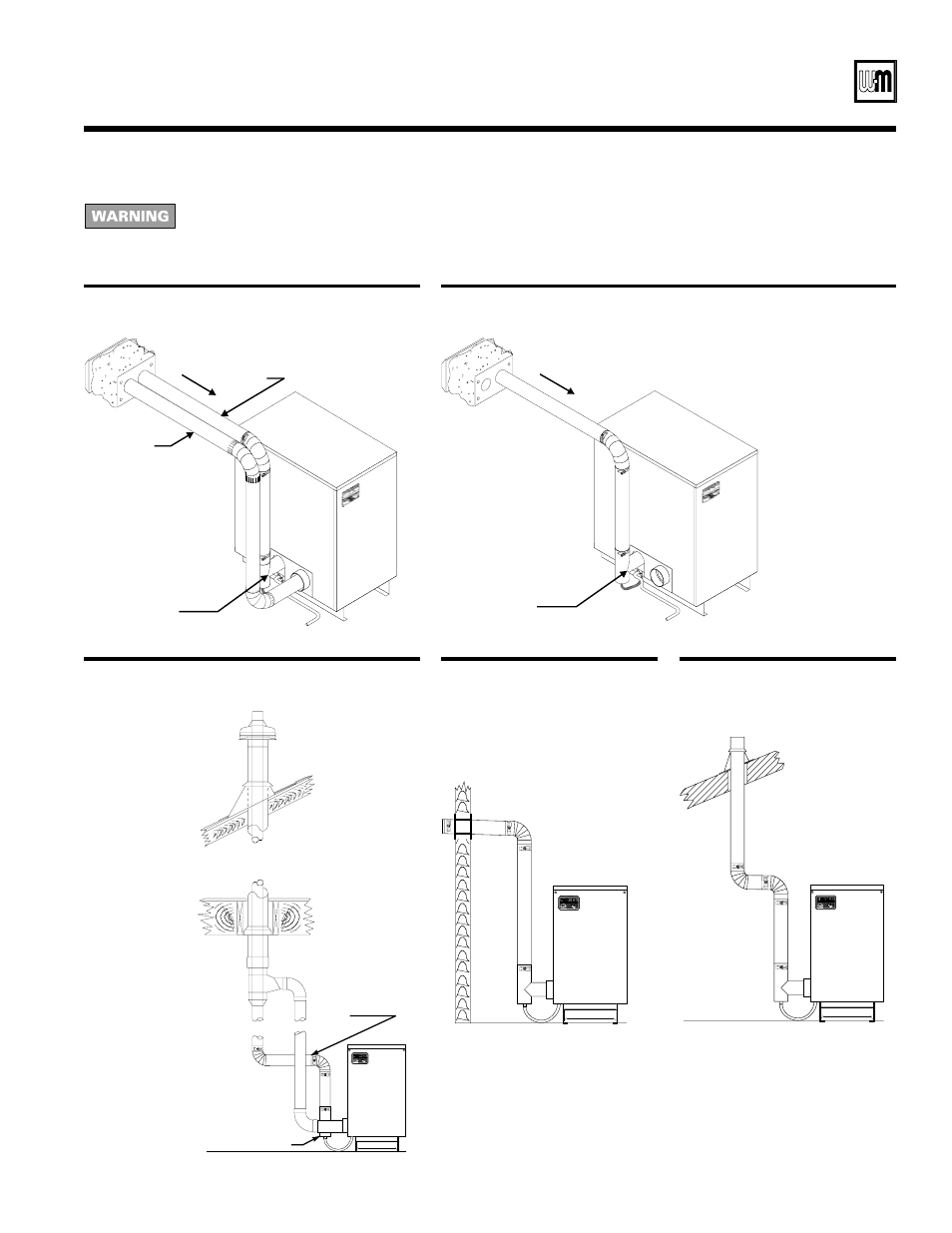

Figure 3 GV direct vent through sidewall
(using Weil-McLain Vent/Air Intake Termination Kit)
Installation
continued
For altitudes more than 5,500 feet above sea level — Do not use non-direct vent through sidewall methods as
shown in Figures 4 and 6 below. Can cause severe personal injury, death or substantial property damage if ignored.
Figure 4 GV non-direct vent through sidewall (using Weil-
McLain Vent/Air Intake Termination Kit) (See WARNING above.)
Figure 5 GV direct vent (using Weil-McLain
Through-Roof or Through-Unused Chimney
Termination Kit)
Figure 6 GV non-direct vent
through sidewall (using termina-
tion coupling) (See WARNING
above.)
Figure 7 GV non-direct vent
through roof (See WARNING
above.)
26601
Air pipe
Vent pipe
Z-Vent II
vent starter tee
Slope vent pipe downward, toward
boiler, minimum ¼” per foot.
Slope
26603
Slope vent
pipe
downward,
toward
boiler,
minimum
¼” per foot.
Z-Vent II
vent starter tee
26602
Z-Vent II
vent starter tee
Slope vent pipe
downward, toward
boiler, minimum ¼”
per foot.
Slope
26604
Slope vent pipe
downward, toward
boiler, minimum
¼” per foot.
Z-Vent II
vent starter tee
Select vent method
26605b
Z-Vent II
vent starter tee
