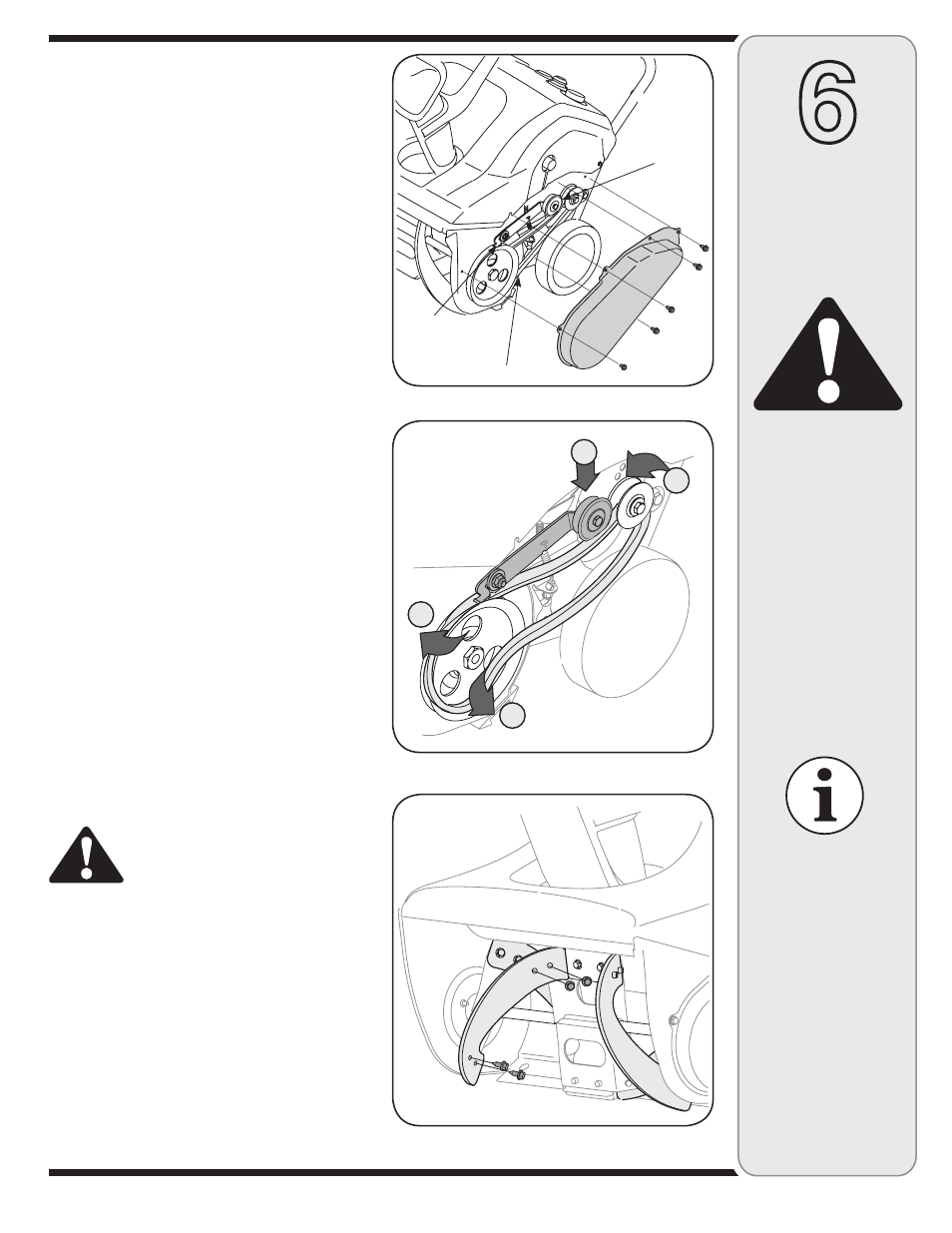

Remove the belt cover by removing five hex screws. See
Figure 6-3. Then simply pull the belt off by grasping it from
the bottom of the auger pulley and pulling off. Once you
remove the belt from the pulleys, you can push down on the
idler pulley to release the belt from under the belt keeper.
To replace the belt follow these instructions and refer to
Figure 6-4:
1. Push down on the Idler pulley.
2. Put belt on top of the auger pulley, under belt keeper.
3. Thread belt around engine pulley.
4. Push belt over bottom of auger pulley.
Reinstall the belt cover removed earlier.
Replacing Auger Paddles
The snow thrower auger’s rubber paddles are subject to
wear and should be replaced if any signs of excessive
wear is present.
IMPORTANT: Do NOT allow the auger’s rubber paddles
to wear to the point where portions of the metal auger
itself can come in contact with the pavement. Doing so
can result in serious damage to your snow thrower.
To change the rubber paddles, proceed as follows:
1. Remove the existing rubber paddles by unscrewing the
self-tapping screws which secure them to the auger.
See Figure 6-5.
2. Secure the replacement rubber paddles to the auger
using the hardware removed earlier.
Engine
1. Refer to the separate engine manual for all engine
maintenance procedures.
2. Check engine and snow thrower frequently for loose
hardware, and tighten as needed.
Carburetor
WARNING: If any adjustments need to
be made to the engine while the engine
is running (e.g. carburetor), keep
clear of all moving parts. Be careful of
muffler, engine and other surrounding
heated surfaces.
1. Refer to the separate engine manual, packed with
your unit, for carburetor adjustment information.
Figure 6-4
Figure 6-5
To remove, pull belt off here
Belt Keeper
Idler Pulley
