Wagner HIGH PERFORMANCE AIRLESS SPRAYER - Manual (Page 30)

30
1
2
3
9
12
11
10
ITEM PART NO. DESCRIPTION QTY. ITEM PART NO. DESCRIPTION QTY.
7 0270371 Housing, Filter 1
8 0270369 Filter 1
9 0090621 Washer 1
10 0088715 Fitting, Return Hose 1
11 0089096 Clamp 1
12 0270363 Tubing, Return 1
1 0270133 Suction Tube Complete 1
(Includes Items 2 thru 10)
2 0090622 Nut, Suction 1
3 0281314 Elbow, Adapter, 3/4" x 1" 1
4 0088931 Ring, Snap 1
5 0089882 Clamp 2
6 0270360 Hose, Suction 1

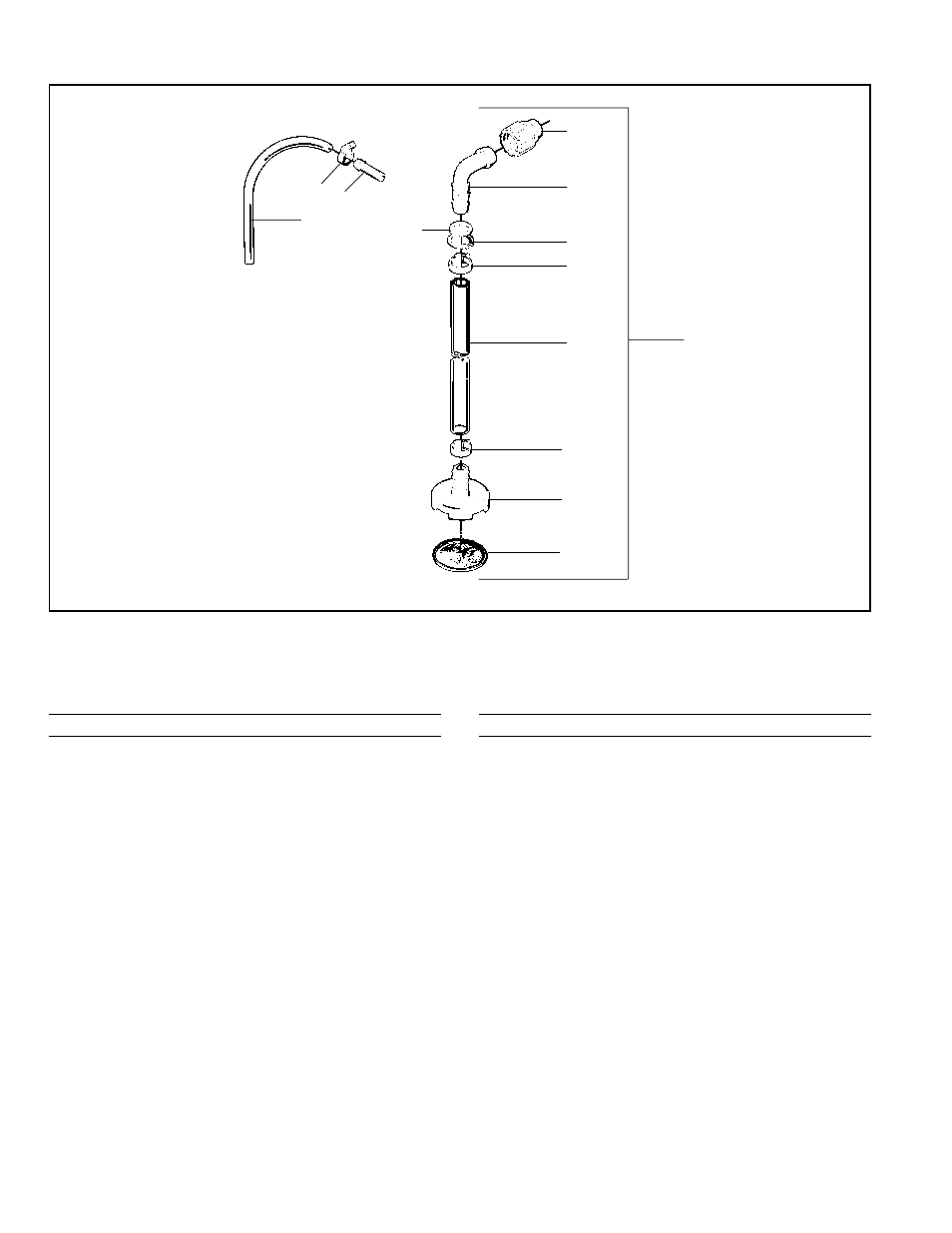

Parts Diagram – Suction Set Assembly
0270174
6
5
4
5
7
8
