15. Attach paint hose to gun,tighten with two wrenches.
CLEAN UP
14. Clean spray tip and gun filter with a soft brush.
Reassemble spray tip in cleaning position. (Arrow
points to back of the gun.)
16. Turn the unit on and unlock gun trigger. Turn to
Spray B and point gun to side of cleaning bucket.
18. Release and lock trigger, reduce pressure, turn to
prime A A A A A . Turn unit off.
19. Remove tip assembly. Raise the suction set above
the cleaning solution. Turn unit on, turn to spray B B B B B
increase pressure and allow suction tube to run dry.
20. Remove large suction tube from inlet valve, See
Figure 42 and point gun into cleaning bucket, See
Figure 41. Reduce pressure about 1/2, unlock gun,
trigger gun until hose is pumped dry.

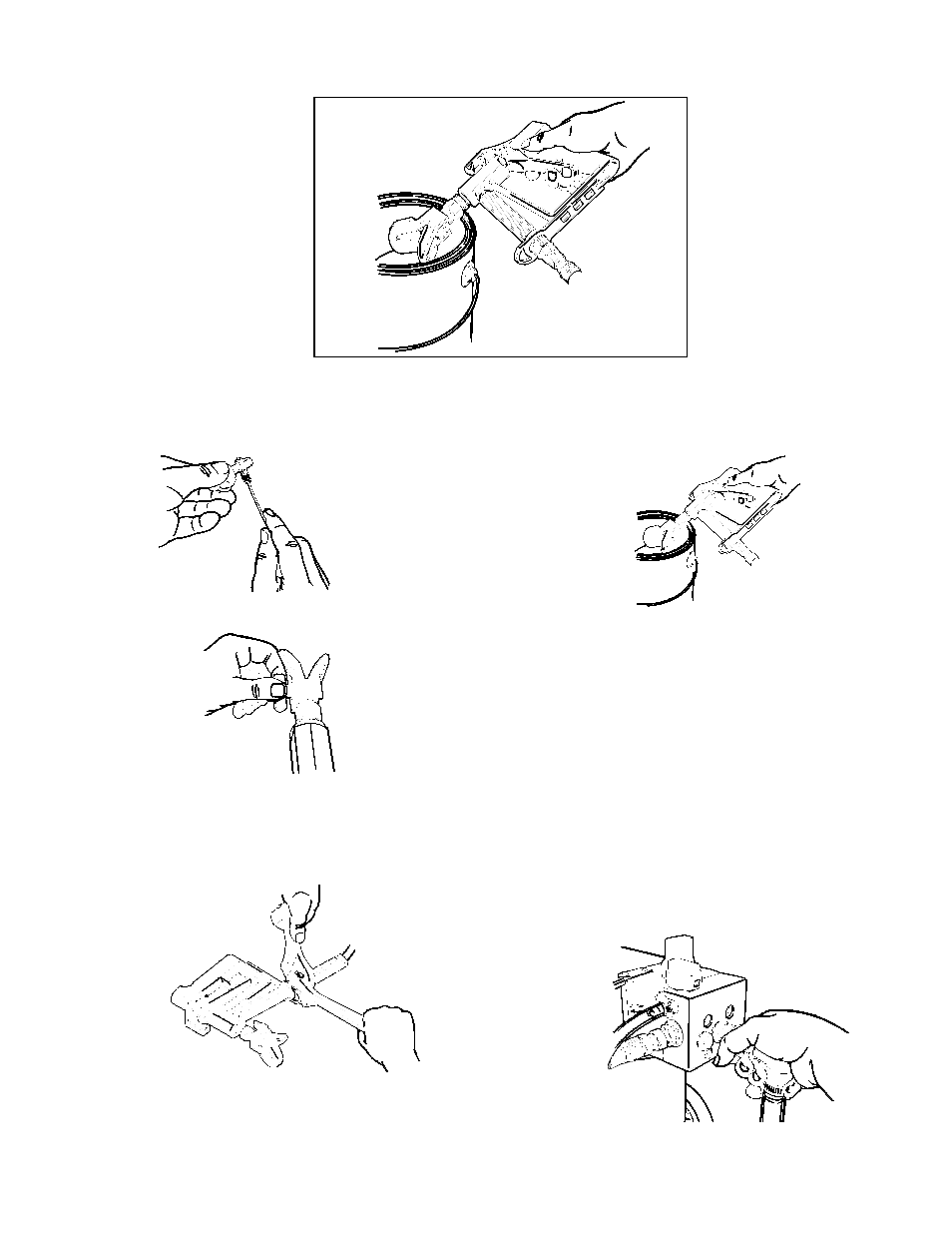

Figure 42 - Removing Large Suction Tube
Figure 40 - Attach Paint Hose to Gun
Figure 41 - Cleaning Bucket
17. Trigger gun and gradually turn pressure knob clock-
wise to 1/2 pressure. Continue for approximately 30
seconds.
