Visioneer Patriot 680 User Manual
Page 146
R
EPLACING
THE
ADF P
AD
A
SSEMBLY
139

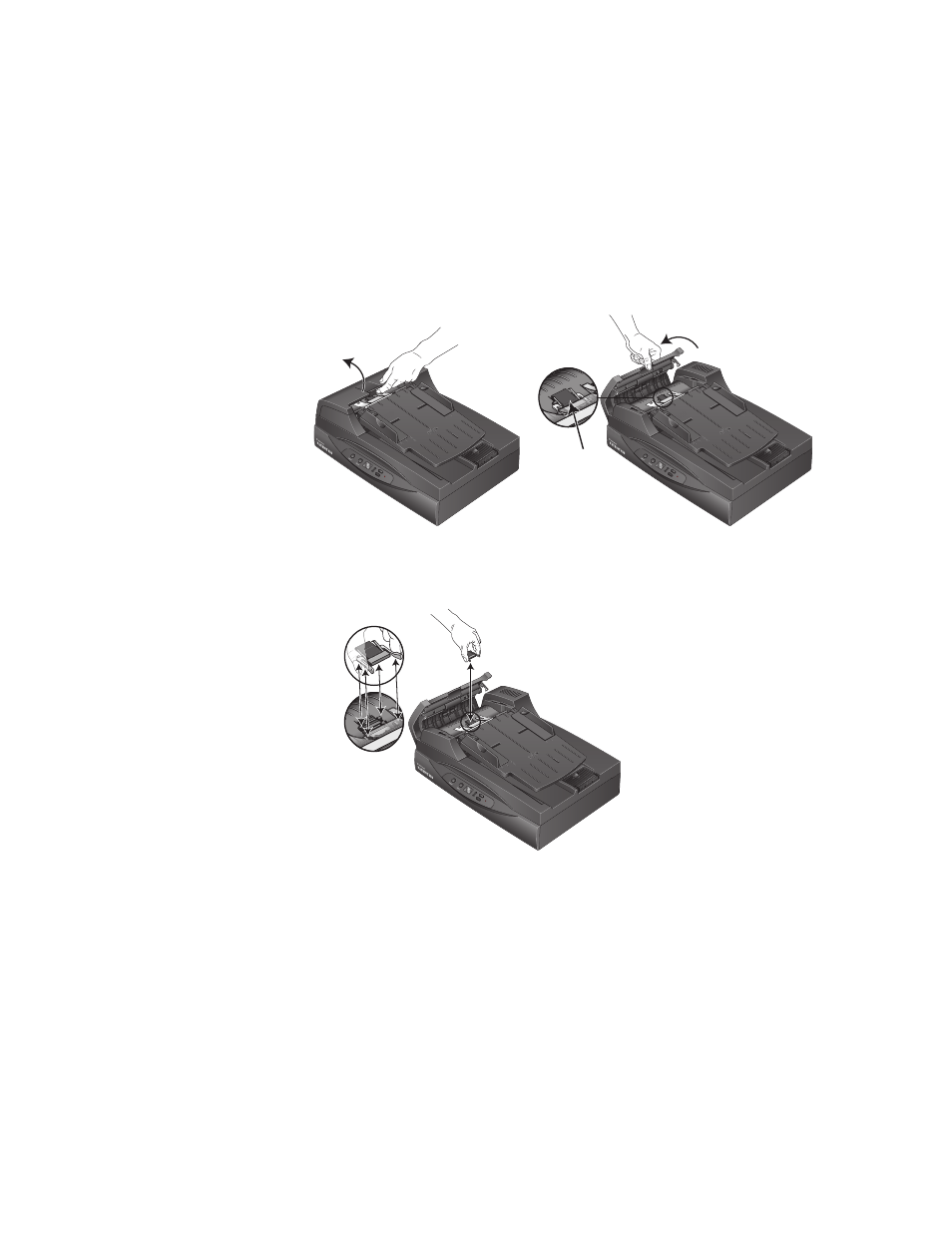

To replace the ADF Pad assembly:
1. Press the ADF cover release on the top of the scanner body to open
the Automatic Document Feeder cover. The pad is located in the
middle of the ADF.
2. Squeeze the plastic clamps that hold the pad assembly in place and
lift the pad up and out.
3. Reverse the procedure to replace the new pad into its slots.
