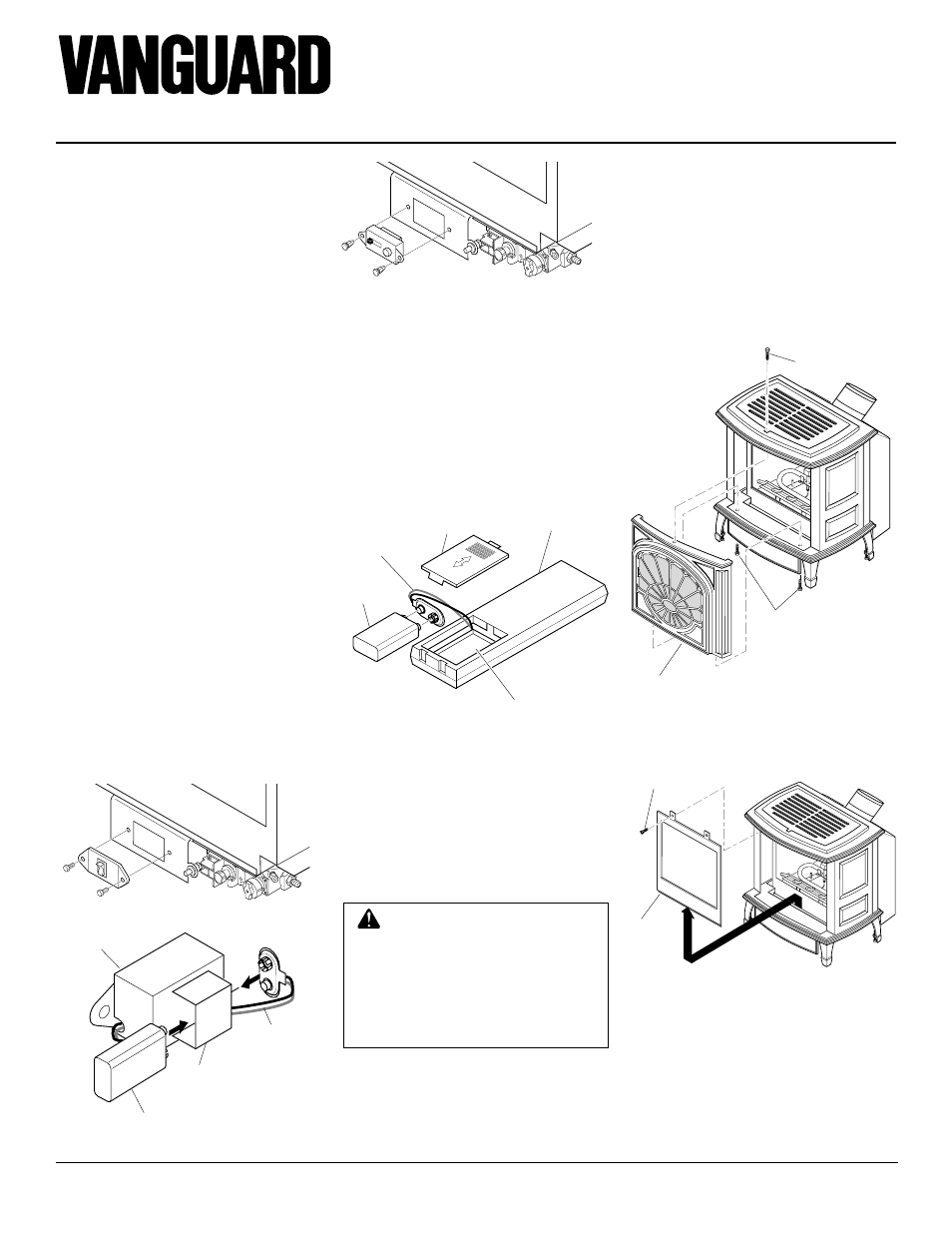

CAST IRON STOVE AND BURNER SYSTEM
105499
SDVBN(A) AND SDVBP(A)
REMOVING/REPLACING
GLASS DOOR
CAUTION: Do not operate this
burner system with a broken
glass door panel or without the
glass door panel securely in
place. For replacement part in-
formation see
Replacement
Parts, page 31.
1. Remove 2 bolts from bottom of stove
and one from the top of stove to remove
front panel (see Figure 51).
You must remove glass door to install logs,
lava rock, and ember material. To remove
glass door, you must first remove the front
panel on stove body.
Figure 52 - Removing Glass Door from
Burner System
STOVE AND
DIRECT-VENT
BURNER SYSTEM
INSTALLATION
Continued
INSTALLING OPTIONAL
WIRELESS HAND-HELD
REMOTE CONTROL
ACCESSORIES - GHRC AND
GHRCT SERIES
Installing Remote Receiver
1. Open bottom door on stove body and
locate the switch plate on the left of the
valve bracket.
2. Unscrew switch plate (see Figure 47).
3. Disconnect wires from THTP and TH
on control valve that lead to the switch
(see Figure 44, page 21). Discard
switch plate, screws, and nuts.
4. Install battery into receiver battery clip
and connect to terminals (see Figure 48).
5. Place receiver into valve bracket and
align holes (see Figure 49).
6. Use push-in fasteners included with
receiver to secure to bracket.
7. Connect the wires from the receiver to
the valve at TH and THTP (see Figure
44, page 21).
Figure 51 - Removing Front Panel from
Stove
Figure 48 - Installing Battery in Receiver
Figure 50 - Installing Battery in Hand-
Held Remote Control Unit
Installing 9-Volt Battery in Hand-
Held Remote Control Unit
1. Remove battery cover on back of re-
mote control unit
2. Attach terminal wires to a 9-volt bat-
tery (not included). Place battery into
the battery housing.
3. Replace battery cover onto remote con-
trol unit.
Terminal
Wires
Battery
Cover
9-Volt
Battery
Remote
Control Unit
Battery Housing
9-Volt Battery
Receiver
Battery
Clip
Terminal
Wires
Screw
Glass
Door
Bolt
Bolt
Stove Front Panel
L O H I
P IL O T OFF ON
Figure 49 - Installing Remote Receiver
Figure 47 - Removing Switch Plate
L O H I
P IL O T OFF ON
2. Remove the screws from the 2 tabs at
the top of the glass door while holding
door securely keeping it from falling
forward (see Figure 52).
3. Grasp door by both sides and ease it
upward off of the lower bracket (see
Figure 52).
4. To replace glass door, follow the above
instructions in reverse.
