17 105499
OWNER’S MANUAL

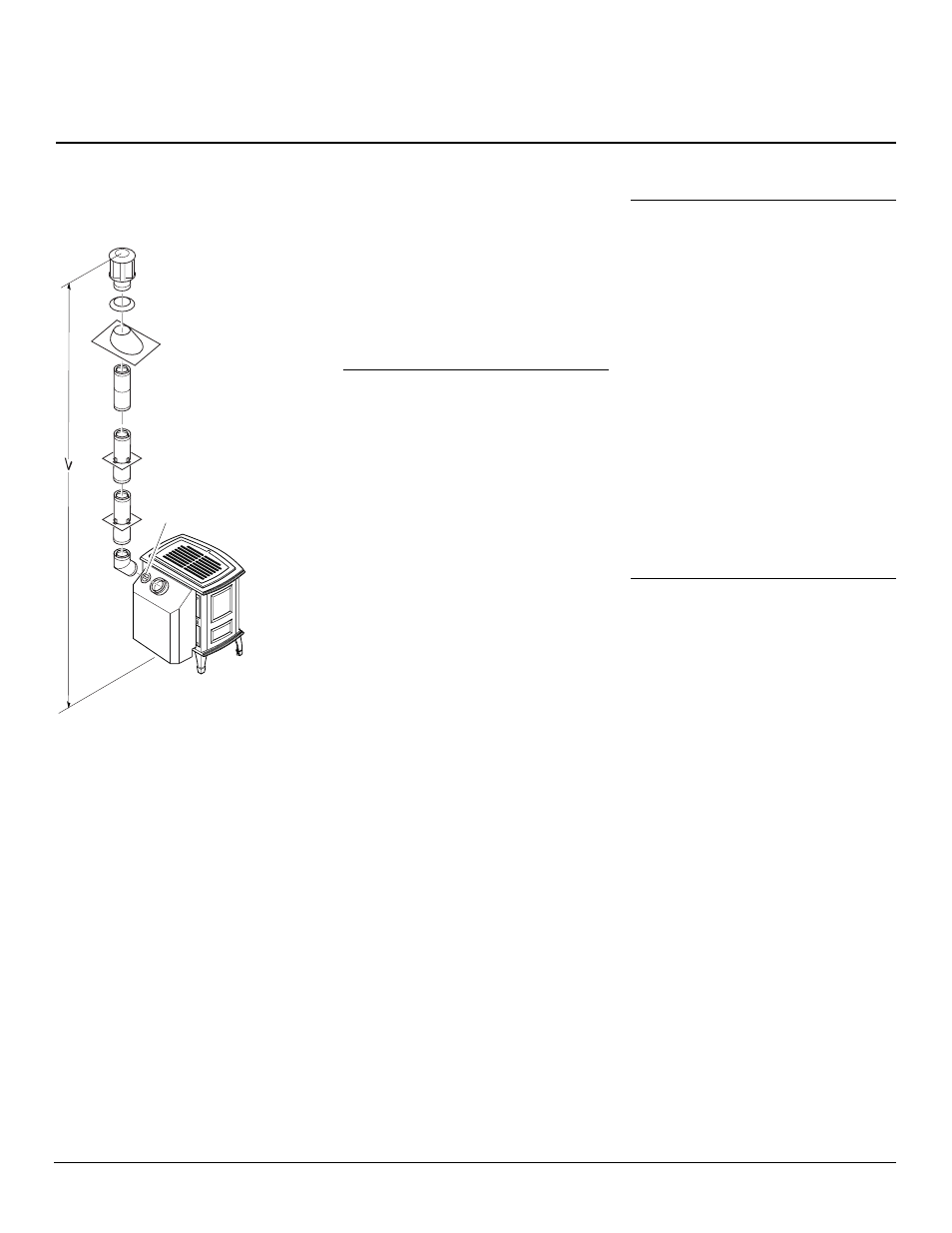

Figure 37 - Vertical Rigid Venting
Configuration With No Horizontal Run
VENTING
INSTALLATION
Continued
Vertical Venting
V = 40' max.
RVKBK Kit Shown
Note: Install
restrictor into 4"
collar of burner
system as shown.
HIGH ALTITUDE
INSTALLATION
Your Vanguard cast iron stove and direct-
vent burner system has been AGA tested
and approved for elevations from 0-2000
feet and CGA certified for elevations from
0-4500 feet.
When installing this stove at an elevation
above 2000 feet (in the USA), you may need
to decrease the input rating by changing the
existing burner orifice to a smaller size. Re-
duce input 4% for each 1000 feet above sea
level. Check with your local gas company for
proper orifice size identification.
When installing this stove at an elevation
above 4500 feet (in Canada), check with
local authorities.
PARTS LISTS FOR VENTING
KITS AND COMPONENTS
Vanguard Rigid Venting
Number Description
GFVKBK Ground Floor Rigid Vent Kit
Includes: 7" x 60
°
Elbow, Ex-
tended 7" Adjustable Pipe (7-12"),
Horizontal Termination, Wall
Thimble and 14 Screws
BVKBK Basement Rigid Vent Kit
Includes: 7" x 30
°
Elbow, 7" x 4'
Pipe, 7" x 90
°
Elbow, 7" Adjust-
able Pipe (7-12"), Wall Thimble,
Horizontal Termination, RTV Sili-
cone and 20 Screws
SVKBK Snorkel Rigid Vent Kit
Includes: 7" x 30
°
Elbow, 7" x 4'
Pipe, 7" x 90
°
Elbow, 7" Adjust-
able Pipe (7-12"), Wall Thimble,
36" Snorkel Termination, RTV
Silicone and 28 Screws
RVKBK Roof Rigid Vent Kit
Includes: Flue Restrictor, Storm
Collar, 7" x 30
°
Elbow, 7" x 4'
Pipe, 7" x 2' Pipe, 7" Adjustable
Pipe (7-12"), Firestop Support,
Roof Flashing, RTV Silicone, Ver-
tical Termination, and 26 screws
D1000BK 7" x 12" Black Coaxial Pipe
(1 pk)
D1010BK 7" x 24" Black Coaxial Pipe
(1 pk)
D1020BK 7" x 48" Black Coaxial Pipe
(1 pk)
D1030BK 7" Adjustable (7-12") Black
Coaxial Pipe (1 pk)
D1050BK 7" x 6" Black Coaxial Pipe (1 pk)
D2000BK 7" X 90
°
Elbow (1 pk)
D2010BK 7" x 45
°
Elbow (1 pk)
D2020BK 7" x 30
°
Elbow
D2030BK 7" x 60
°
Elbow
Number Description
D3000 Wall Strap/Offset Support
(6 pcs.)
D3010 Storm Collar (6 pcs.)
D3040 Vertical Termination Cap (1 pk)
D3020 Wall Thimble (6 pcs.)
D3050 Vertical Restrictor (6 pcs.)
D3060 Ceiling Firestop/Support
(6 pcs.)
D3070 Rectangular Horizontal Rigid
Vent Termination Cap
D3090 Cathedral Ceiling Support
Box
D4000 Roof Flashing 6/12-9/12
D4010 Roof Flashing 9/12-12/12
D5000 Wood/Vinyl Siding Standoff
(6 pcs.)
Vanguard Rigid Venting (Cont.) Consult your local gas company to help de-
termine the proper orifice for your location.
For assistance with any high altitude instal-
lation contact DESA International’s Tech-
nical Service Department at 1-800-DESA-
LOG (1-800-337-2564).
SIMPSON DURA-VENT
GS 4" x 6
5 /
8
" (Black Pipe)
Number Description
Available from DESA International:
SD2040B Simpson Dura-Vent GS
30
°
Elbow (6 pcs.)
SD2050B Simpson Dura-Vent GS
60
°
Elbow (6 pcs.)
Available from Simpson Dura-Vent only:
902B 7" x 48" Pipe
903B 7" x 36" Pipe
904B 7" x 24" Pipe
906B 7" x 12" Pipe
907B 7" x 9" Pipe
908B 7" x 6" Pipe
911B 7" Adjustable (11"-14 5 /8") Pipe
940 Wall Thimble
941 Cathedral Ceiling Support Box
943 Roof Flashing 0/12-6/12
943S Roof Flashing 7/12-12/12
945B 7" x 45
°
Elbow
950 Vinyl Siding Standoff
953 Storm Collar
963 Ceiling Firestop
981 36" Snorkel Termination
984 Horizontal Termination Vent Cap
988 Wall Strap
990B 7" x 90
°
Elbow
991 Vertical High Wind Termination
