INSTALLATION DIRECTIVE 21 V08 EnT M75 - M11 - M12 MAY 2006

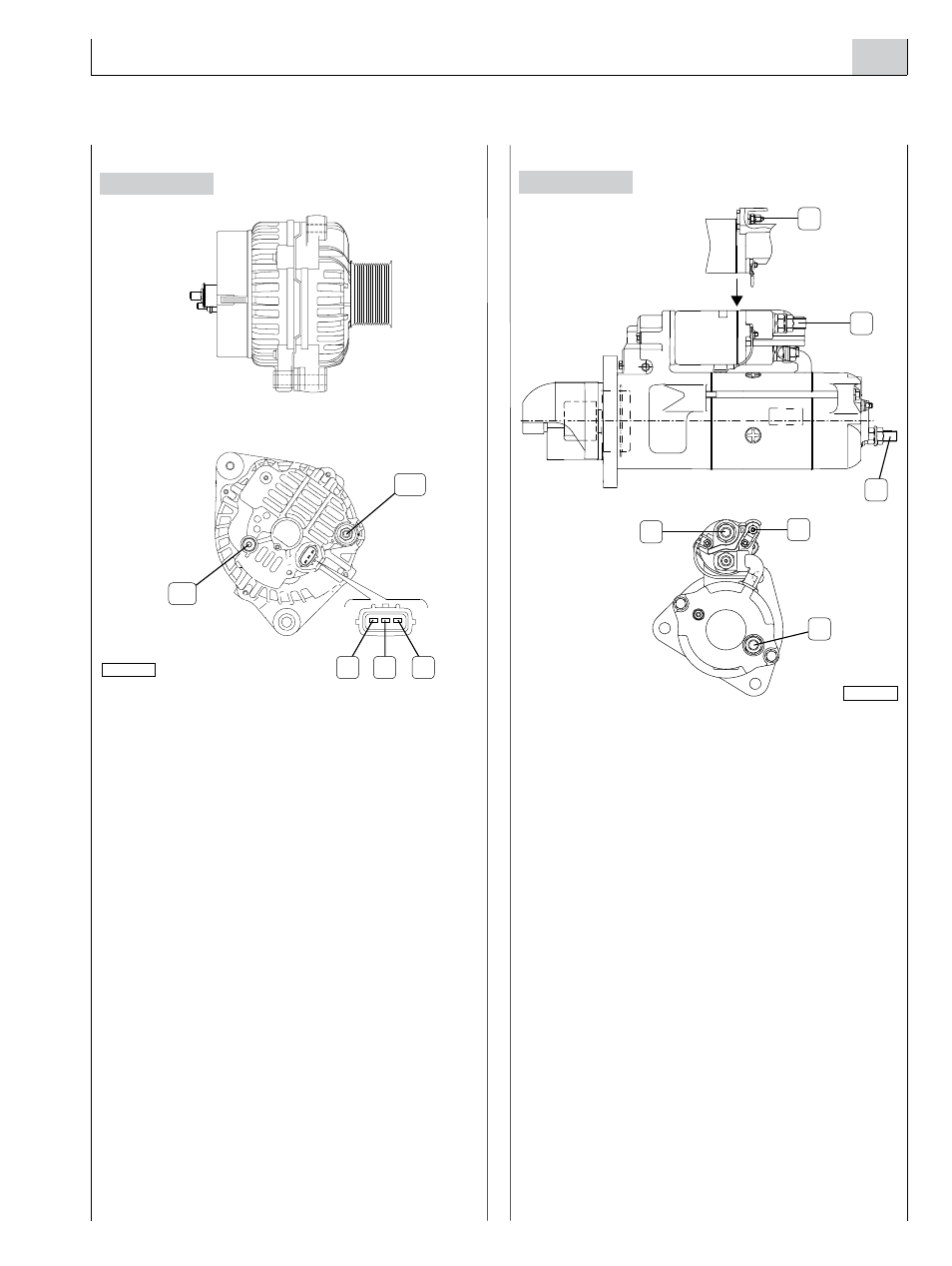

Electrical starting motor
1. Excitation coil command (50) - 2. Positive power
pole (+B) - 3. negative supply pole (−B).
Technical characteristics:
- nominal supply voltage 24 V
- Absorbed power 8.5 kW
- Terminal connection “50”
tightening torque 2 to 3 nm
- Terminal connection “+B”
tightening torque 20 to 30 nm
- Terminal connection “–BATT”
tightening torque 20 to 30 nm
Figure 1
05_076_V
1
3
3
1
2
2
Alternator
Technical data:
- nominal voltage 24 V
- nominal current 90 A
-
Terminal connection “+B” M8 x 1.25
tightening torque 12.5 nm ± 20%
- Terminal connection “–B” M6 x 1
tightening torque 6.0 nm ± 20%
+B. (24 V) Power supply output terminal
–B. (0 V) Power supply output terminal
S. (Sense) Reference voltage of battery charge status
(connected to “+B” terminal or to be con-
nected to the positive pole of the battery in
case of remote installation of the battery);
IG. (Ignition) Regulator enabling signal (connected to volt-
age “+ 15”, driven by key switch);
L. (Lamp) Power supply voltage of recharge/alarm indi-
cator light located on the panel.
Figure 1
05_112_C
- B
+ B
IG S L
