CONNECT WIRING TO VIL1200 INLINE FAN
1. The opposite end of this wiring will be connected to the
rough-in plate in the next step.
2. Remove wiring box cover from the inline fan.
3. Attach an appropriate UL approved cable connector to
the wiring hole in the wiring box.
4. Bring electrical wiring through the cable connector in the
electrical box.

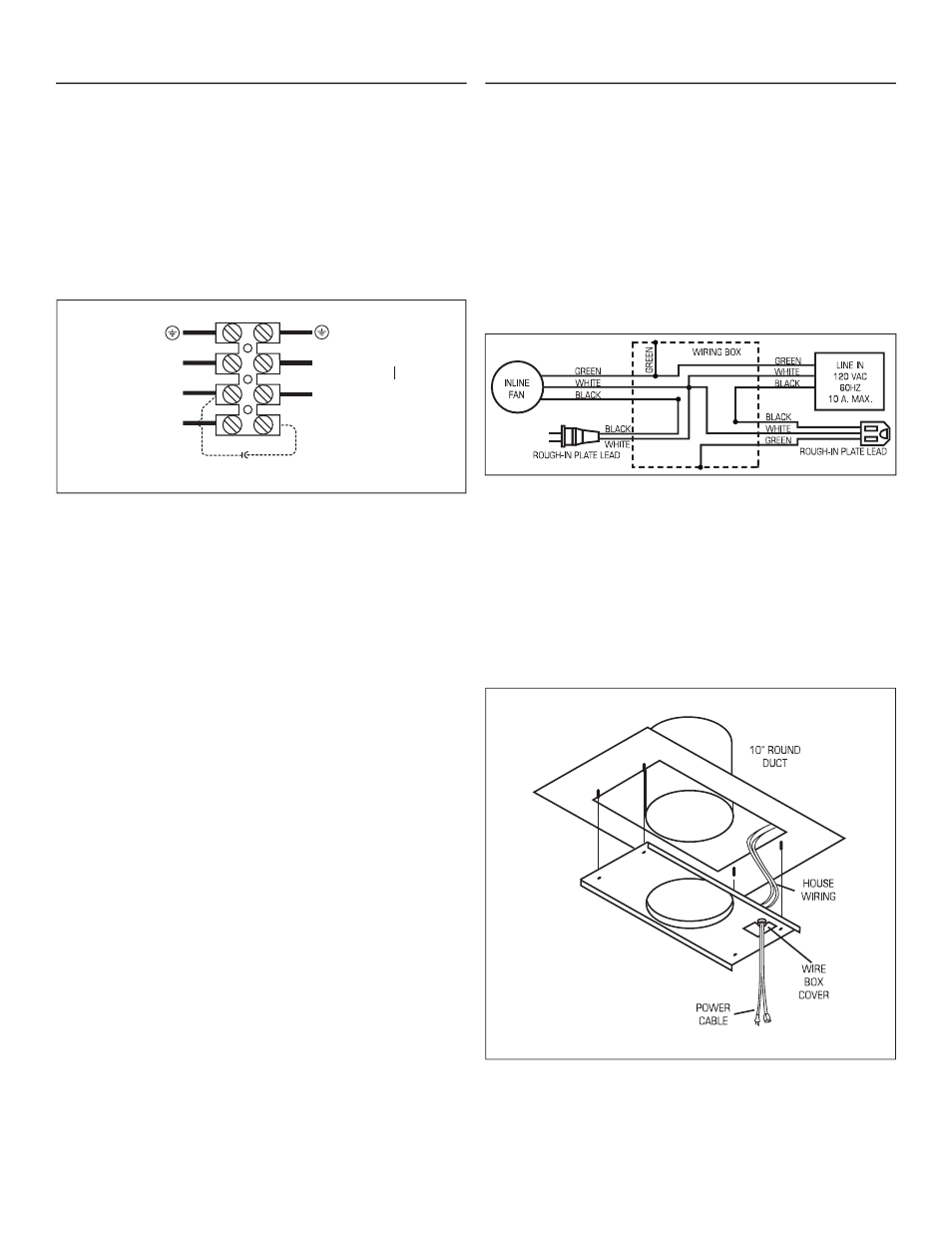

5. Make electrical connections per the diagram shown below
6. Attach wiring box cover.
CONNECT WIRING TO THE ROUGH-IN PLATE
1. Run 115VAC electrical power cable from the service panel
and from the inline fan to the rough-in plate part number
PV300008.
2. Remove appropriate knockouts from the range hood rough
in box.
3. Attach appropriate UL approved cable connectors to the
wiring holes in the range hood rough-in box.
4. Feed 6” of power cable through the cable connectors in
the rough-in plate.
5. Using the diagram below make all electrical connections
to the rough-in plate.
6. Attach wiring box cover to rough-in plate.
7. Attach rough-in plate to the studs at the inside top of
the range hood with the (4) #10-24 nuts part number
PV300146 provided.
8. Connect the plugin power cables of the rough-in kit to
the range hood.
3
�����
�����
�����
�����
���������
��������
���������
���������
������
������� ��
����
������������
115V
