PLANNING THE INSTALLATION
1. Locate the inline fan so that the length of the duct run and
number of elbows needed is kept to a minimum.
2. The inline fan is designed for use with 10” diameter duct.
3. Use rigid metal ductwork.
4. Always install ventilation products with an approved wall
or roof cap.
5. For a truly quiet kitchen ventilation system add a Viking
Inline Duct Silencer part number VSIL10 (sold separately)
to the installation. The simple addition of a inline duct si-
lencer between the range hood and the VIL1200 fan can
typically reduce the perceived sound level of the system
by more than 50%.
MODEL A B C D E Weight
VIL1200 †10 1 14 15 8 21 lbs.
MOUNTING THE VIL1200 INLINE FAN
To minimize any potential vibration noise it is recommended
that the inline fan be mounted with Viking Vibration Isolation
Kit part number ILVK (sold separately).
ILVK ILVK

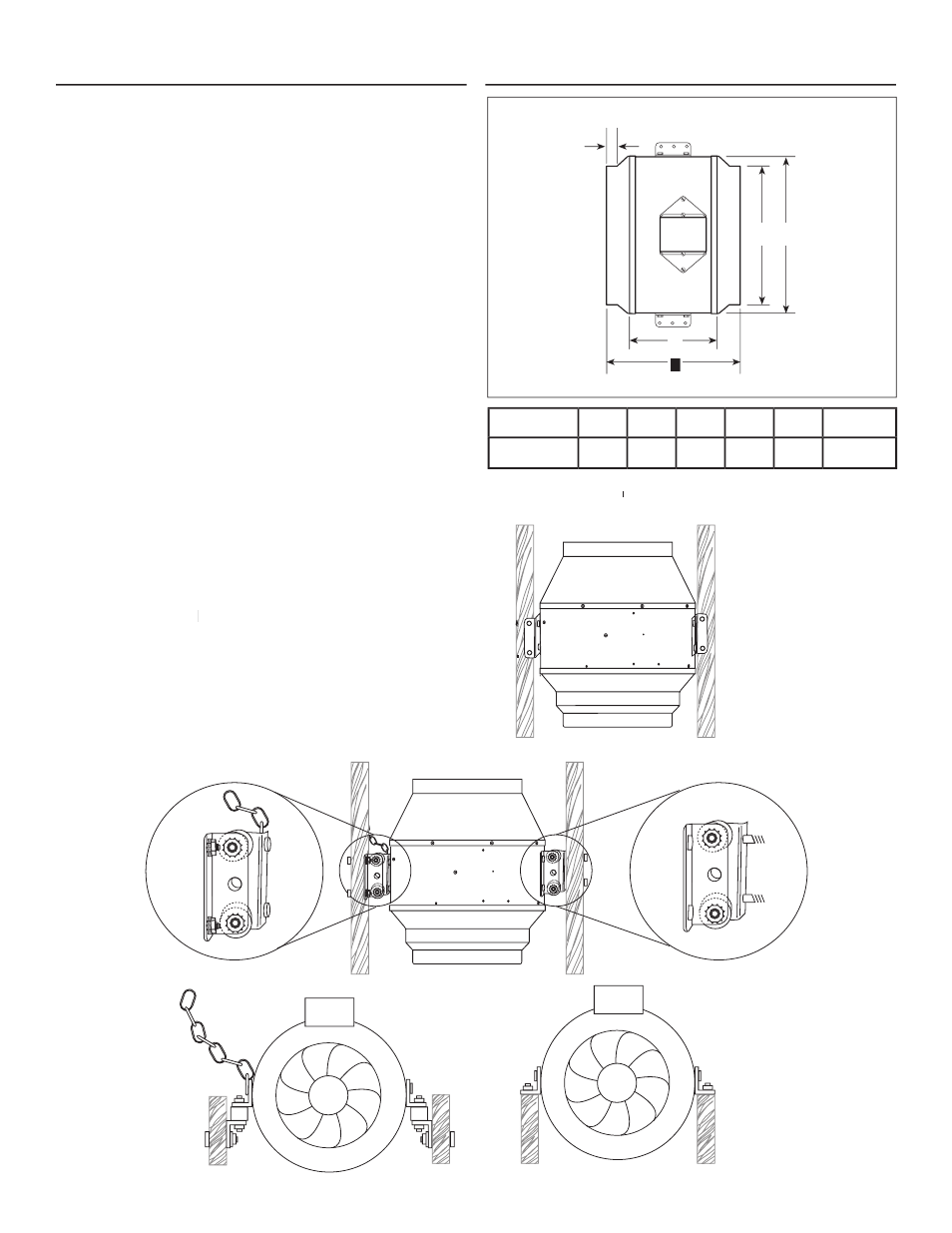

Various mounting methods are shown below.
2
����
�
�
� �
All dimensions in inches.
† Duct connections are ¹⁄₈
¹¹ smaller than the duct size.
Vertical Installation
with out Kit
Vertical Installation
with Kit
Horizontal Installation
with Kit Horizontal Installation
with out Kit
