VIZIO VO22L FHDTV10A User Manual
Version 9/9/2008 17
www.VIZIO.com
Chapter 2 Connecting Equipment

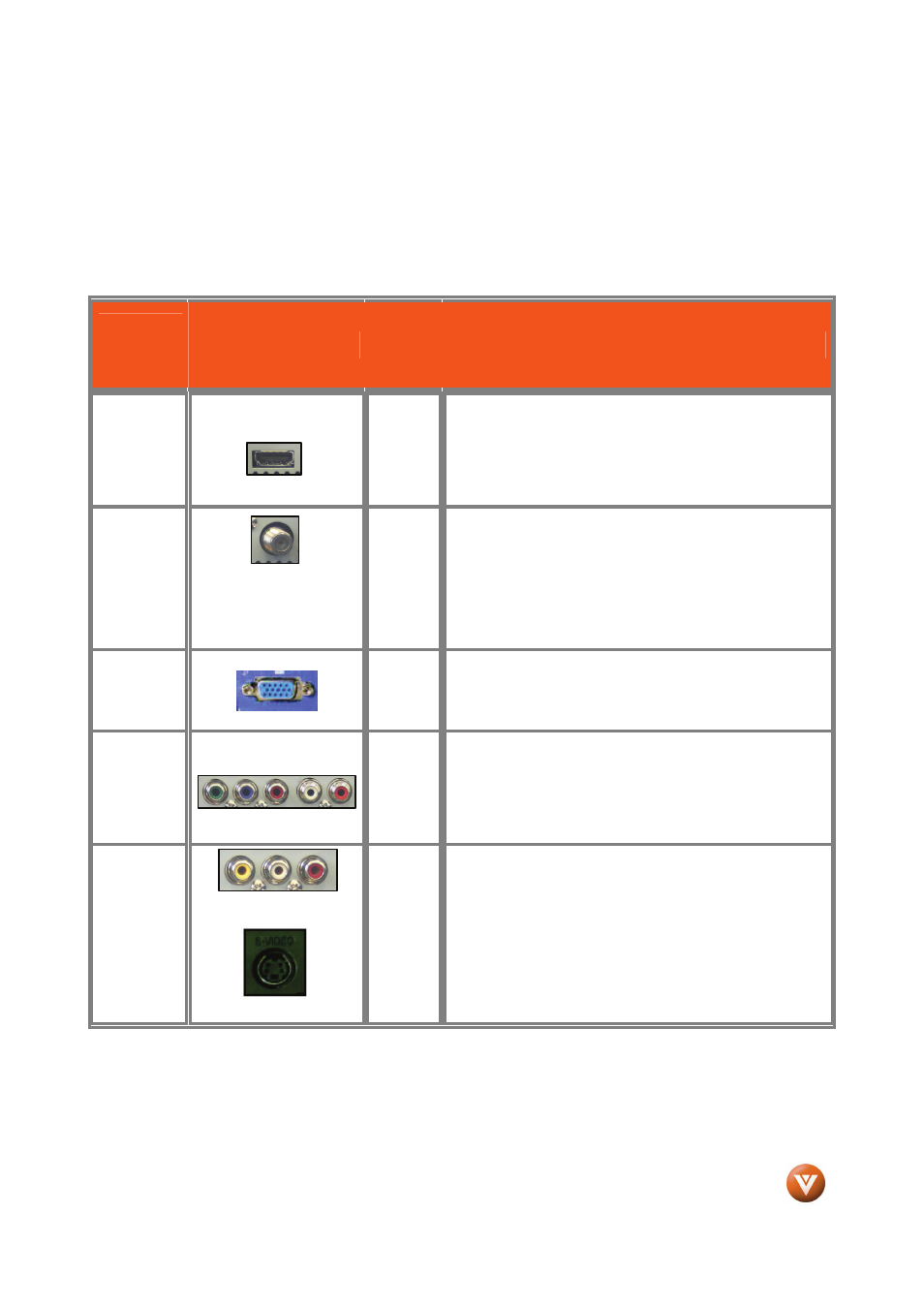

2.1 Which Video Connection Should I Use?
The VIZIO VO22L FHDTV10A has six different ways to connect your video equipment from a basic
connection to the most advanced for digital displays.
Connection
Quality
(type)
Connector
Rear
Panel
Color
Codes
Description
Best
(digital)
White
HDMI (High-Definition Multimedia Interface) - It is the first
and only industry-supported, uncompressed, all-digital
audio/video interface. HDMI provides an interface between
any audio/video source, such as a set-top box, DVD player,
or A/V receiver and an audio and/or video monitor, such as
a digital television (DTV), over a single cable.
Best
(digital)
- - - - - - - -
- - - -
Good
(analog)
Black
DTV Coaxial RF. When used for MPEG2 encoded bit
streams from ATSC broadcast programming, this input
takes advantage of the High Definition content.
- - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - -
TV Coaxial RF. This is the connection for standard NTSC
TV using antenna or cable.
Best
(analog)
Blue
RGB PC (VGA) – This video input has separate red, green
and blue color components. The signal carries horizontal
and vertical sync information on the green signal. This is
most commonly used for PC input.
Better
(analog)
Green
Component - The video signal is separated into three
signals, one containing the black-and-white information and
the other two containing the color information. This
enhancement over S-Video takes advantage of the superior
picture provided by progressive scan DVD players and
HDTV formats.
Good
(analog)
Yellow
and
Red
S-Video (AV) - The video signal is separated into two
signals, one containing the black-and-white information and
the other containing the color information. Separating the
color in this way avoids ‘cross color’ effects where closely
spaced black and white lines are erroneously displayed in
color. It also enables text to be displayed more sharply.
Composite (AV) - The complete video signal is carried
through this single pin connector. This is the most
commonly used video connection.
Note: For more info refer to the Quick Start Guide
