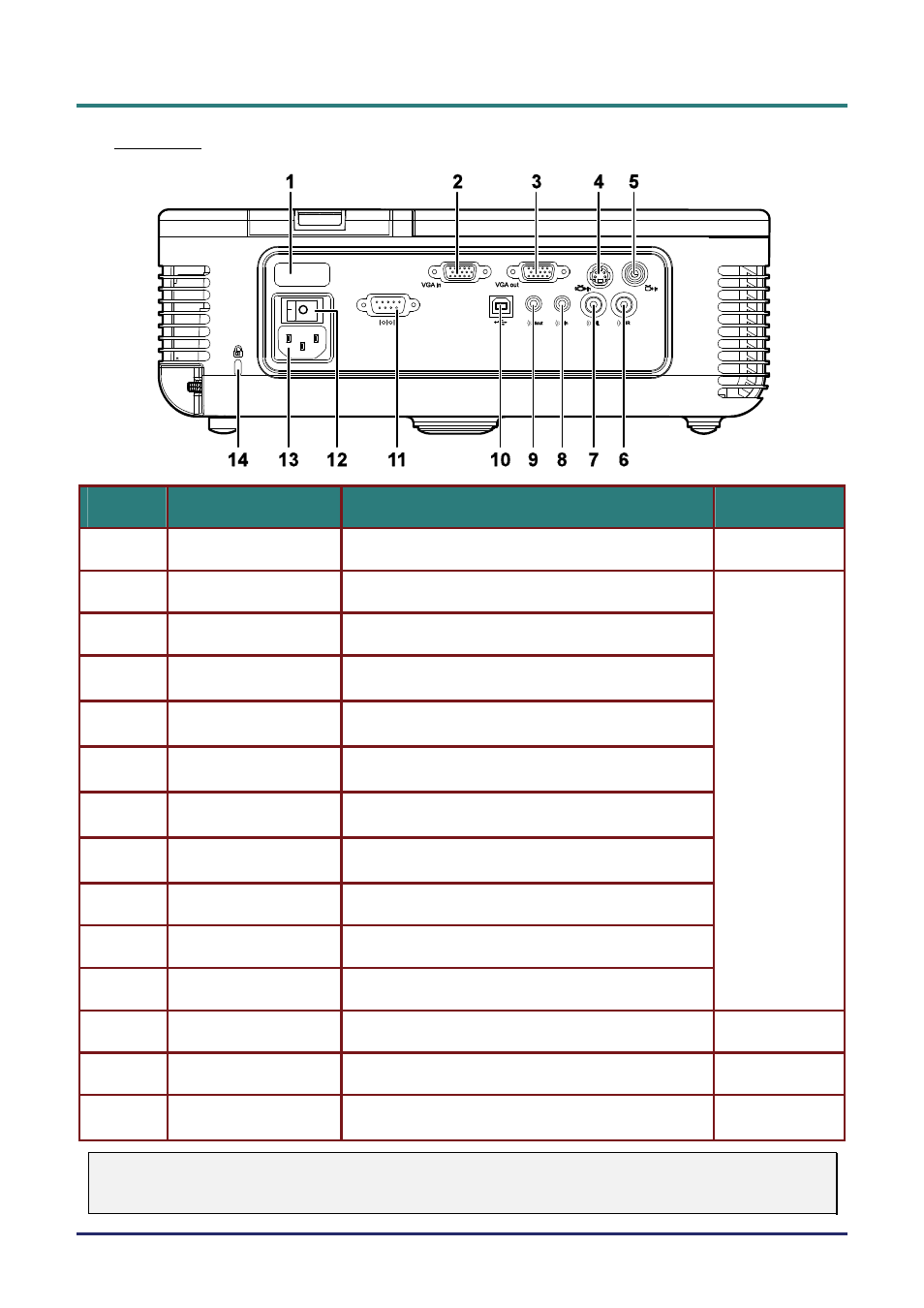

Rear view
I
TEM
L
ABEL
D
ESCRIPTION
S
EE PAGE
:
1.
Rear IR receiver
Receiver for IR signal from remote control
2.
VGA IN
Connect a VGA cable (supplied) from a computer
3.
VGA OUT
Connect to a monitor (not supplied)
4.
S-video
Connect the S-video cable (not supplied) from a
video device
5.
Video
Connect a composite video cable (not supplied)
from a video device.
6.
Audio in-R
Connect the audio cable (not supplied) from an
audio input device.
7.
Audio in-L
Connect the audio cable (not supplied) from an
audio input device.
8.
Audio-in
Connect an audio cable (supplied) from the com-
puter’s audio-out connector.
9.
Audio-out Audio
loop-thru
10.
USB
Connect the USB cable (supplied) from a computer
11.
RS-232
Installation control
12.
Power Switch
Turns the power on and off
13.
Power
Connect the power cord (supplied)
14.
Security Lock
Secure to permanent object with a Kensington®
Lock system
Note:
If your video equipment has both S-VIDEO and RCA jacks (composite video) connect to the
S-VIDEO connector. S-VIDEO provides a better quality signal.
