10

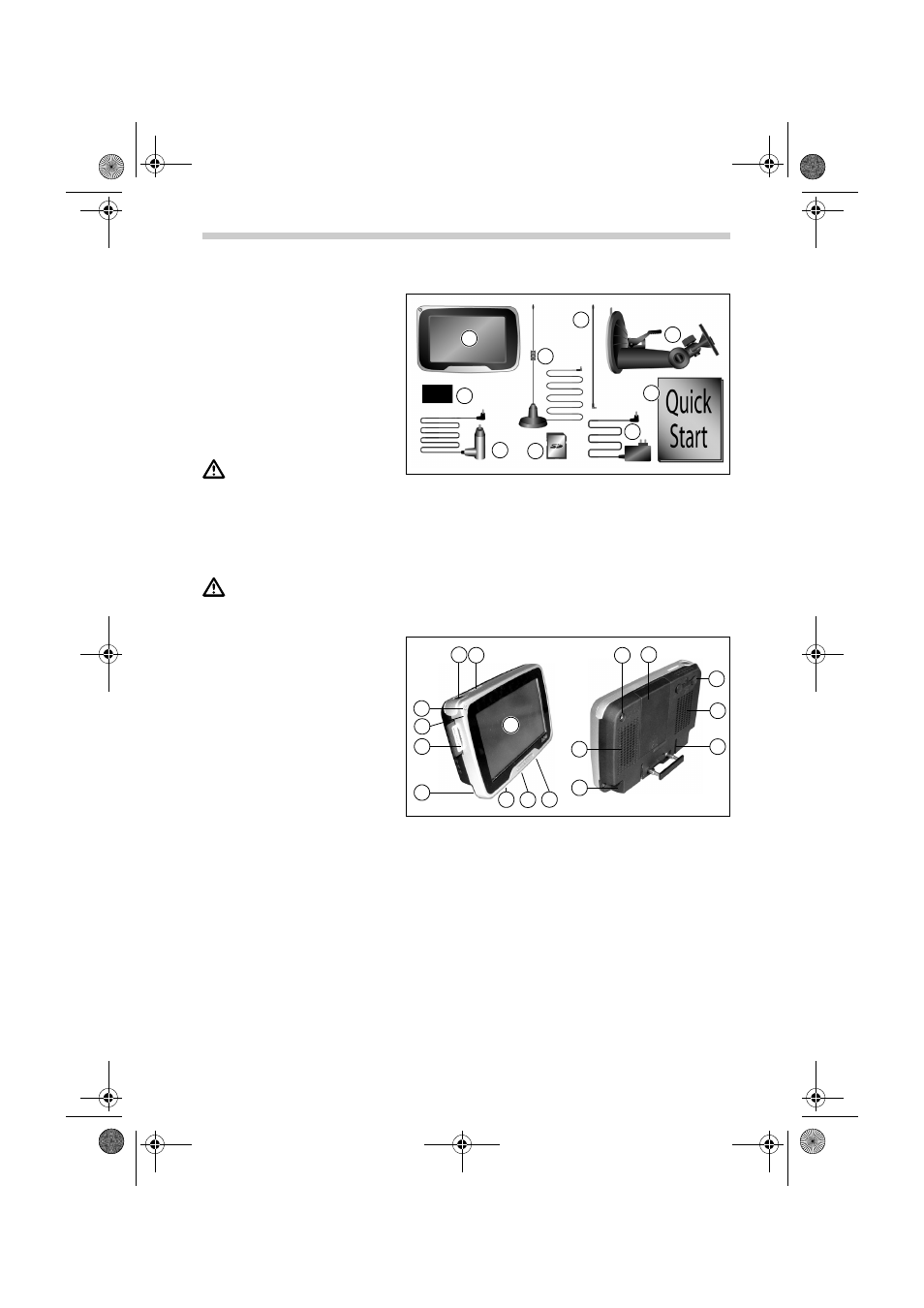

What's included?
1
Navigation system
2
Lithium ion battery
3
Cradle with suction cup to
attach the device to the
windscreen
4
12 V DC cable to power the
navigation system from
within the vehicle (adapter
for cigarette lighter)
5
100/240 V AC adapter
You must not use any
cables other than the AC
adapter and DC cable provided to power the device and to charge the battery!
6
Quick Start Guide
7
SD card with map data
8
DVB-T antenna (with cable)
9
DVB-T antenna (without cable)
Headphones/volume adjustment: high volumes can damage or reduce your hearing.
Overview of device
1
Power button
2
Light sensor
3
Display/touchscreen
4
Status LED
5
Infrared sensor
useful in conjunction with
RCS 5100 steering wheel
remote control (accessory)
6
Compartment for lithium ion
battery (cover)
7
Connection for external GPS
antenna
8
Connections for DVB-T antennae
9
Loudspeaker
10 Grooves for cradle fixation
11 Slot for SD card*
12 Headphone socket
13 Connection for 100 V/240 V adapter or 12 V cigarette lighter cable
14 Serial connection – for active cradle (optional)
15 USB port for connection to your PC
16 Reset button
*"Secure Digital Card" and the "Secure Digital Logo" are legal trademarks of the SD Card
Association.
9
8
7
6
5
4
1
2
3
9
8
7
6
5
10
1
4
3
2
9
11
12
13
14
15
16
PN 4000/6000
