VDO Dayton Truck Navigation Computer PC 5200 TSN - Manual

TRUCK
NAVIGATION

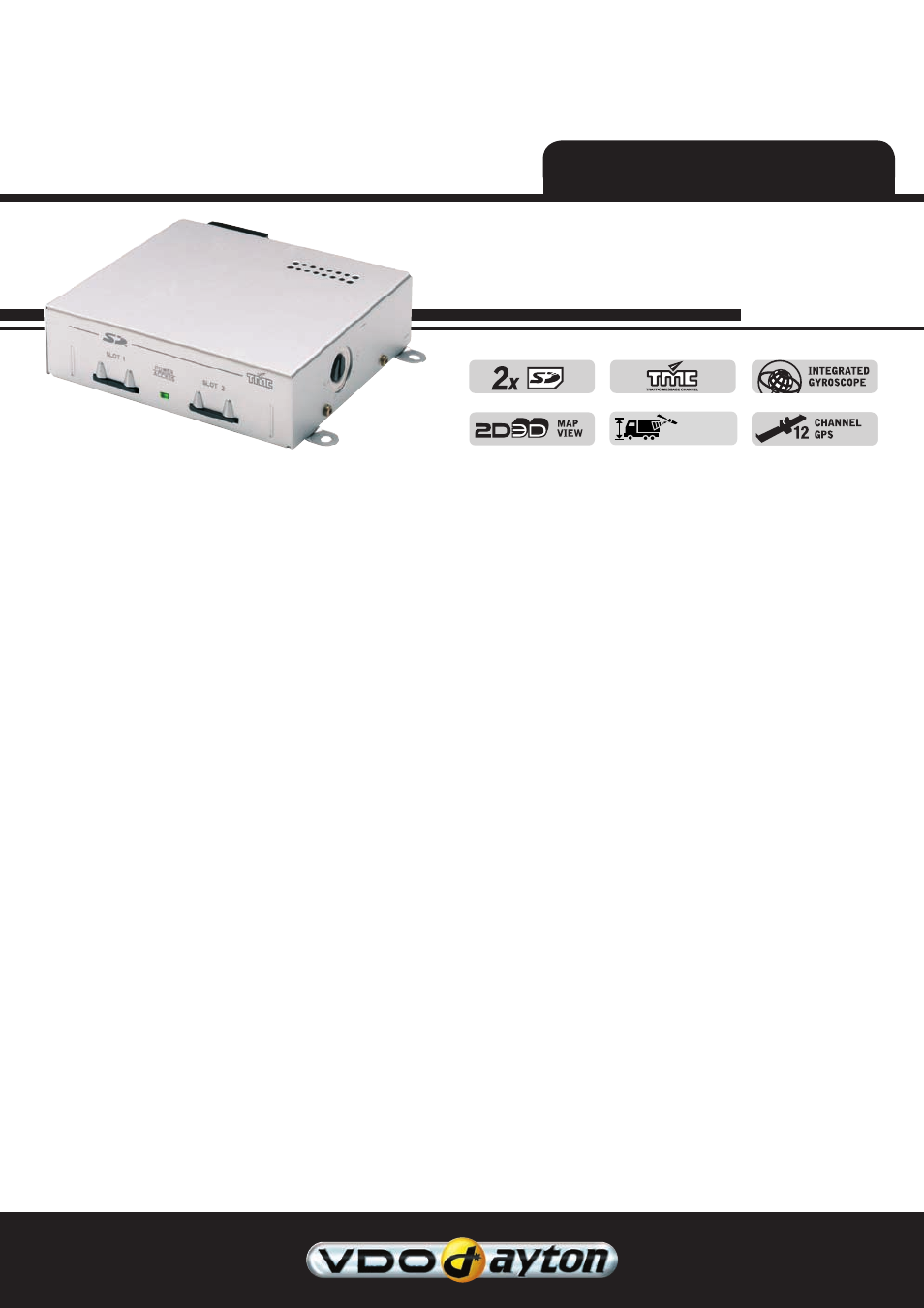

Truck Navigation Computer
PC 5200 TSN
Product Information
• Map-based route calculation with
truck-specific restrictions **
• Display of truck-specific restriction
signs in map **
• Detailed input for vehicle data
(length/height/weight/hazardous goods)
• Truck specific Points of Interest (POIs),
e.g.Trucker restaurants or rest stops,
gas station with HPF • Rest/travel time control
• Lightweight, compact and
easy to install, with optional
speedo meter connection
• 2 SD Card slots for map software
and travel guides
• Integrated RDS-TMC Receiver
• 2D/3D Map View including
Auto-Zoom
Vehicle type-specific navigation
Individual vehicle data is used to calculate the route and display the
appropriate vehicle-specific restrictions on the map. **
Vehicle type definition
PC 5200 TSN allows the driver to configure the navigation system
corresponding to the exact vehicle data. This makes it possible to
adjust the settings for height/length/width, total weight, max. axle
weight, use of trailer and semi trailer as well as the definition of the
hazardous materials transported.
Tour Book for individual tour planning
Up to 10 independent tours with a maximum of 40 different waypoints
each can be arranged individually. The route will be planned according
to the tour book.
Easy Installation
Because the PC 5200 is compact and has a non-sensitive SD card
slot, it can easily be tucked away in almost any vehicle. The turnable
gyro makes it possible to mount the PC 5200 in practically any posi-
tion, including upside down, depending on the individual installation
situation. For added convenience, it is not necessary to connect the
vehicle’s speed signal. *
Travel Time monitoring
The PC 5200 TSN allows the driver to check travel times when
guidance is active. Based on the current time (calculated via GPS),
the estimated travel time, and the user-defined maximum travel time,
the driver is warned when approaching the limit for uninterrupted or
daily travel time.
Integrated RDS-TMC Receiver
Traffic information is available with the built-in TMC receiver.
The additional functions this enables not only deliver better value
for the price, but also make installing the unit even easier: since
all you need is a connection to the FM antenna, the set comes
with an FM window antenna.
Dynamic Navigation via TMC
The system is able to process traffic information, which is provided
through its internal RDS-TMC receiver (Radio Data System - Traffic
Message Channel). This traffic information is evaluated and inclu-
ded in the route calculation. The delta (travel time, distance) for the
current route is shown and the driver can decide whether he wants to
drive this new route or not.
2D/3D Map View incl. Auto-Zoom
The unit’s special software makes it possible to display precise,
smooth maps in either traditional 2D or the new 3D view. Auto
zoom permits the system to choose from among three user-definable
scales. Depending on the speed of the car, the map zoom can work
automatically.
Wide range of destination input options
The wide range of destination input options makes it easy to find
practically any destination. The input function is supported by
”Intelligent Typewriter,” which automatically shows only the
necessary letters, making it much easier to choose the destination.
• Tour Book for up to 10 separate tours
with max. 40 waypoints each
• Infrared Remote Control
• Dynamic Navigation via TMC
• Wide range of destination input options:
- Country, city, street
- Junction, house number
- Postal/ZIP code
- Latitude/longitude
* Slightly reduced positioning accuracy possible. In extreme shadowed areas GPS recep-
tion may not be available. GPS aerial must be mounted intervisible to sky direction.
** Please note that the map material may not provide truck attributes in all regions/countries.
Additional low-ranking roads are also not attributed. In this case, route calculation works without
taking truck restrictions into account. The system displays an indicator of the attribution status.
