Controls and Connections

USB: Connect a USB thumb drive to view photos.

HDMI (1,2,3): Connect HDMI devices.

Component: Connect component device.

Composite: Connect composite device.

3.5mm Stereo Out: Connect 3.5mm audio device.

Cable/Antennal: Connect RF/Coaxial connector from cable, antenna, or

satellite box.

RGB PC: Connect RGB cable from computer. Use 3.5mm port to

connect PC audio.

3.5mm PC

Audio In:

Connect 3.5mm cable from PC audio out when using
RGB PC port to display PC output.

Optical Digital

Audio Out:

Connect SPDIF/Optical audio device (soundbar,
receiver, etc).

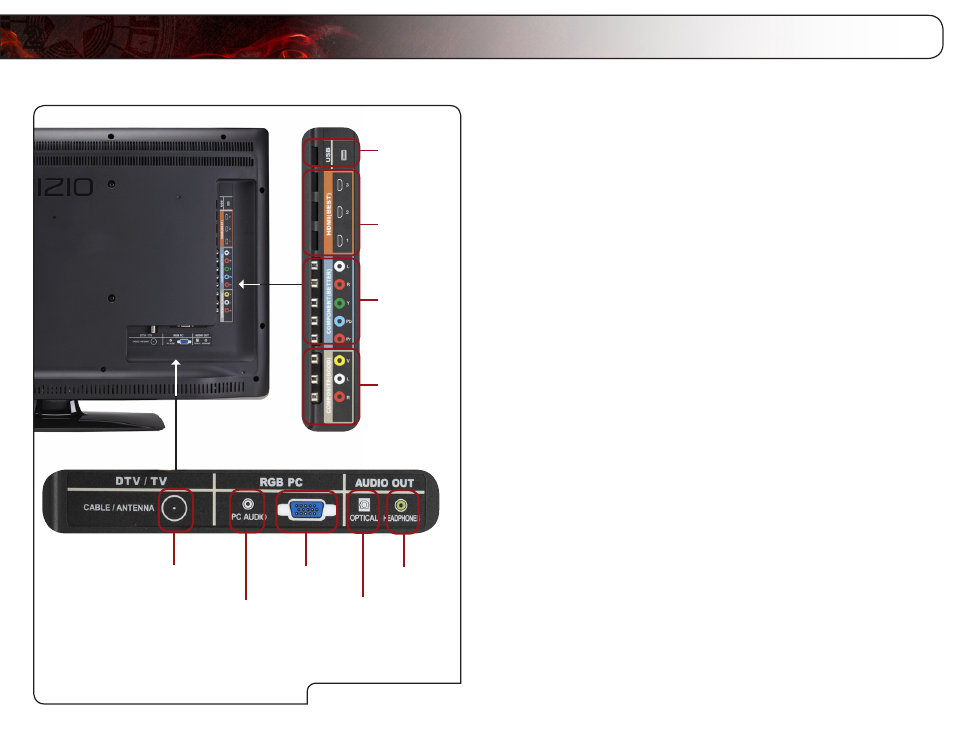

Rear Panel

Rear Panel

RGB PC

Optical Digital

Audio Out

USB

HDMI (1,2,3)

Composite

Component

3.5mm Stereo

Out

Cable/Antenna

3.5mm PC Audio In
