Getting Started
ViewSonic 17 VT2645 / VT3245 / VT3745
English
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775

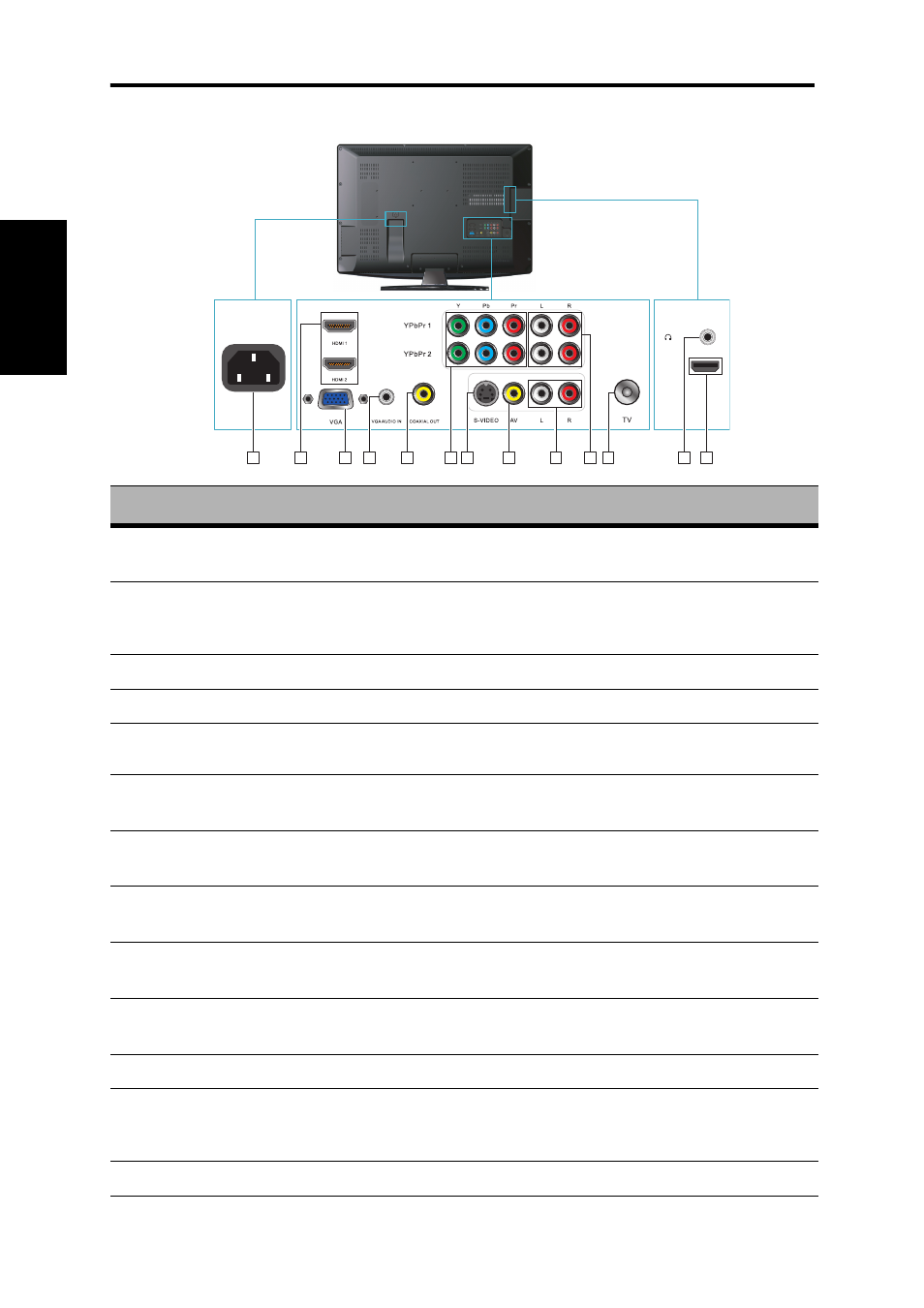

Rear View of VT3745
Item Description
1 Power (AC input)
Plug-in the supplied AC Power cord and connect to the AC
input power source (110V~120V).
2 HDMI 1 / 2
Connect this port to the HDMI/HDMI-DVI jack of the com-
patible equipment. *If you use HDMI-DVI
connections, please use PC Audio In for audio input.
3 VGA Signal Input Connect to VGA Out on your computer.
4 VGA Audio In Connect to Audio Out on your computer.
5 Coaxial Out
Use a coaxial cable to connect to a digital audio receiver sup-
porting the S/PDIF standard, such as a home theater receiver.
6 YPbPr 1 / 2
Connect to an external device, such as a VCR, STB, or a DVD
player.
7 S-Video Input
Connect to an external device, such as a VCR, STB, or a DVD
player.
8 AV
Connect to an external device, such as a VCR, STB, or a DVD
player.
9
R/L Audio Input
(AV/S-Video) Connect to an external device, such as a VCR, STB, or a DVD
player.
10
R/L Audio Input
1 / 2 (YPbPr) Connect to an external device, such as a VCR, STB, or a DVD
player.
11 TV Cable/Antenna Connect to a cable or antenna TV.
12 Headphone Jack
Connect to your headphones. By connecting the headphones,
you can listen to the sound from the TV on headphones. *If
you connect the headphones, the TV speakers will be muted.
13 Service Port Service only. Not available for users.
AC
SERVICE
ONLY
1 3 2 4 5 7 11 10 12 8 6 9 13
