Getting Started
ViewSonic 15 VT2645 / VT3245 / VT3745
English
Contact ViewSonic service team at: http://www.ViewSonic.com or call our service team: United States 1-800-688-6688, Canada 1-866-463-4775

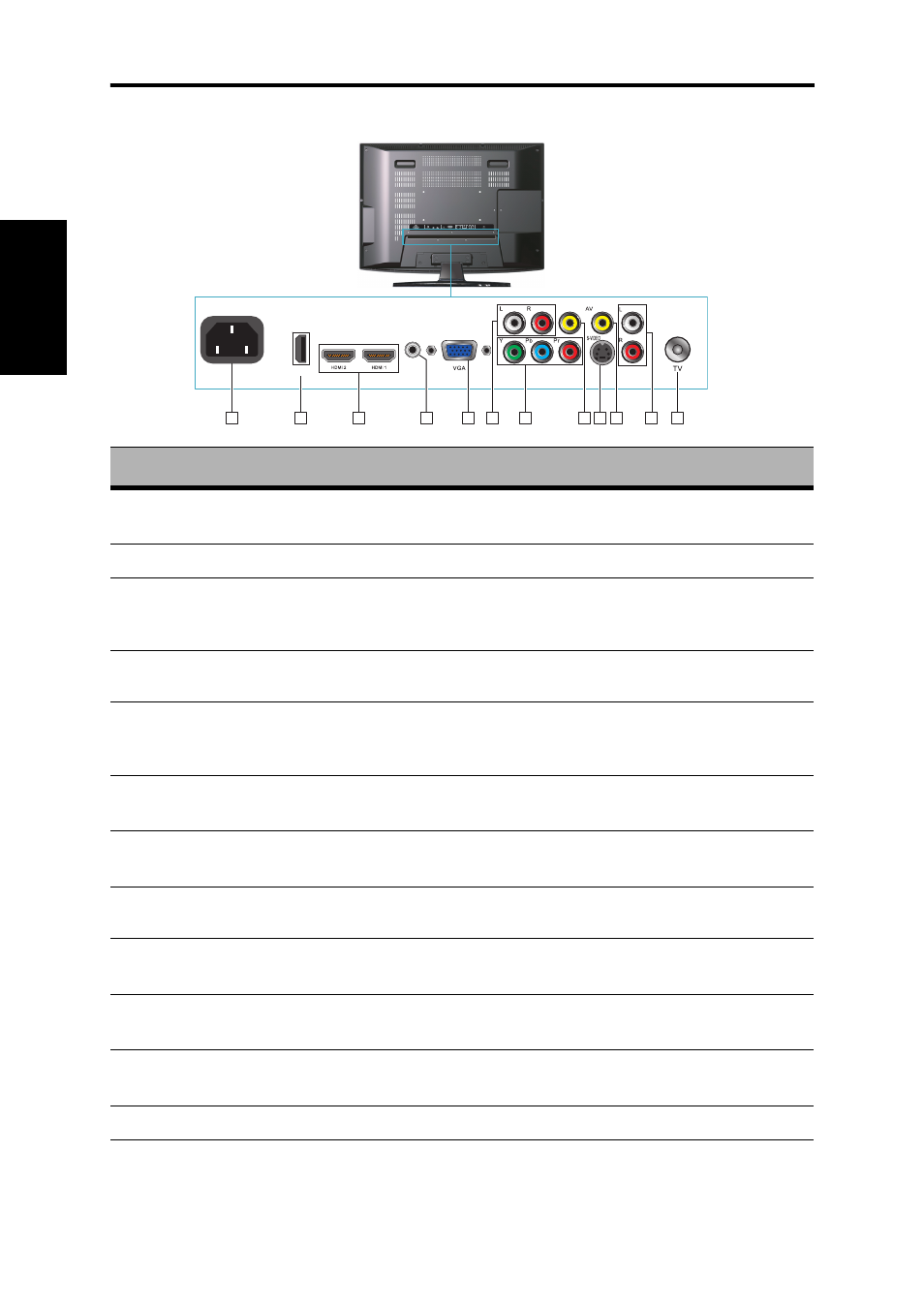

Rear View of VT2645
Item Description
1 Power (AC input)
Plug-in the supplied AC Power cord and connect to the AC
input power source (110~120V).
2 USB Service Port Service only. Not available for users.
3 HDMI 1 / 2
Connect this port to the HDMI/HDMI-DVI jack of the
compatible equipment. *If you use HDMI-DVI
connections, please use PC Audio In for audio input.
4 PC Audio In
Connect the PC Audio Out on your computer to the PC
Audio In on the rear of the LCD TV.
5 VGA Signal Input
Connect a 15-pin D-sub RGB cable to the RGB output of
your computer and the other end to the RGB input on the
rear of the LCD TV.
6
R/L Audio Inputs
(YPbPr) Connect to an external device, such as a VCR, STB, or a
DVD player.
7 YPbPr
Connect to an external device, such as a VCR, STB, or a
DVD player.
8 Coaxial
Connect to a digital audio receiver supporting the
S/PDIF standard, such as a home theater receiver.
9 S-Video Input
Connect to an external device, such as a VCR, STB, or a
DVD player.
10 AV
Connect to an external device, such as a VCR, STB, or a
DVD player.
11
R/L Audio Input
(AV/S-Video) Connect to an external device, such as a VCR, STB, or a
DVD player.
12 TV Cable/Antenna Connect to a cable or antenna TV.
AC IN
SERVICE PORT
USB
SPDIF OUT
PC AUDIO
1 2 3 4 5 6 10 8 11 7 9 12
