1. Connect the three
separate component
video cables to the
DVD player’s.
Y, Pb
and Pr ports and
to the Y, Pb and Pr
ports on the TV.

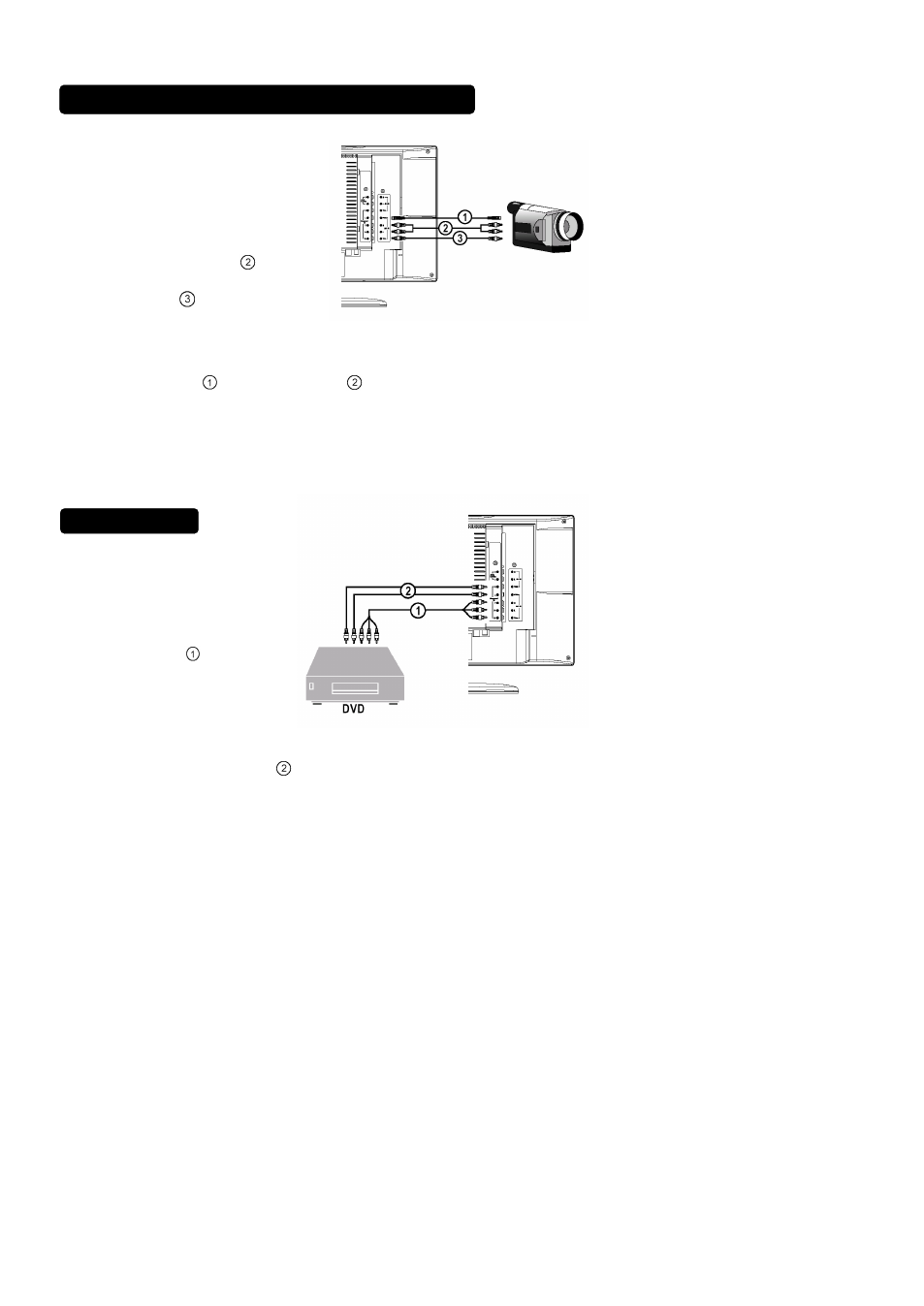

CAMERA, CAMCORDER, VIDEO GAME SET, …
How to connect
2. S-Video
Connection
S-VHS quality with an S-VHS camcorder is obtained by connecting the S-VHS cable with the
S-VIDEO input and AUDIO input .
How to use
1. Select VIDEO or S-VIDEO input source (see P7 TV/ VIDEO)
2. Turn on the external AV equipment.
DVD PLAYER
How to connect
2. Connect the audio cables to the DVD player’s AUDIO L and R ports and to the L and R
AUDIO AV ports on the TV.
How to use
1. Select
COMPONENT , (see P7 TV/ VIDEO)
2. Turn on the DVD set.
1. Composite Video:
Connect your camera,
camcorder, videogame
set,… to Audio port
(Audio L for mono) and
Video port
.
