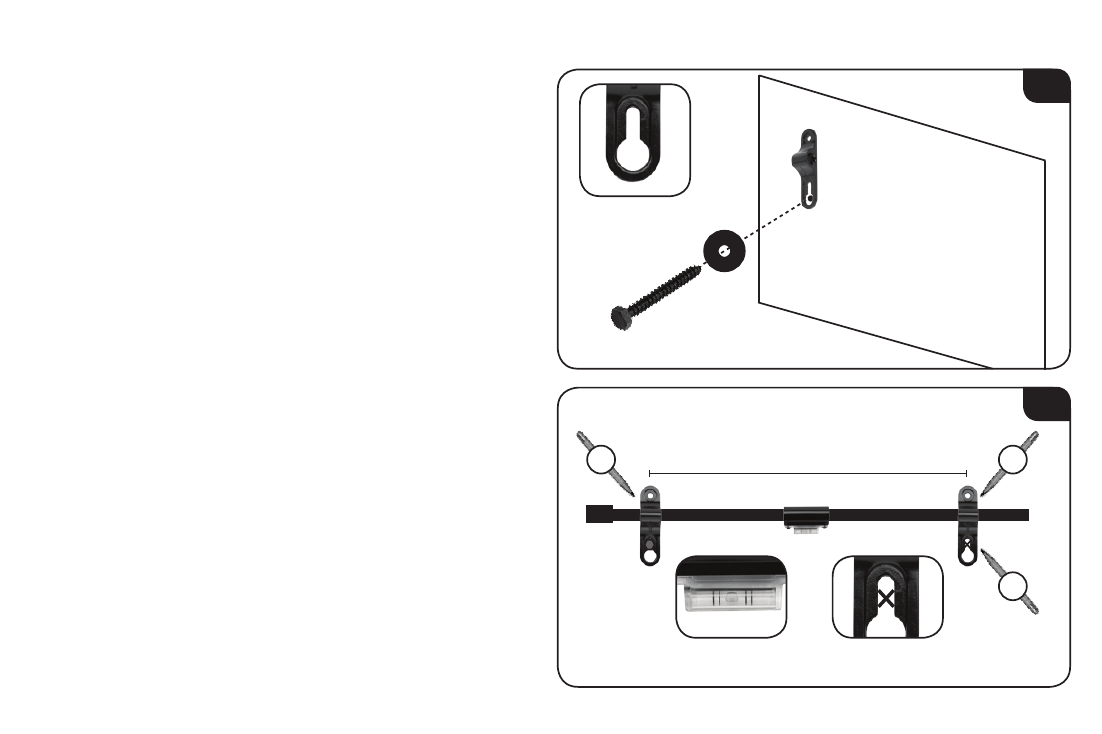

3. Remove 1 lag bolt and 1 washer from the pouch labeled
LAG.
Place a bracket (
part A) against the wall as shown, and use a
wrench to insert the lag bolt and washer into the anchor.
4. Push the bar through the opening in the bracket ( part A) as
shown.
Push the other bracket ( part A) onto the bar and hold it flat
against the wall. Ensure it is at least 16” from the other
bracket.
Snap on the leveler ( part E) and level the bar.
Mark the location of the 3 holes on the brackets as shown.
3
Use Bottom Hole
Level Bar
16”
1 2
3
Make Mark
