16 107157
UNVENTED NATURAL GAS FIREPLACE
®
For more information, visit www.desatech.com

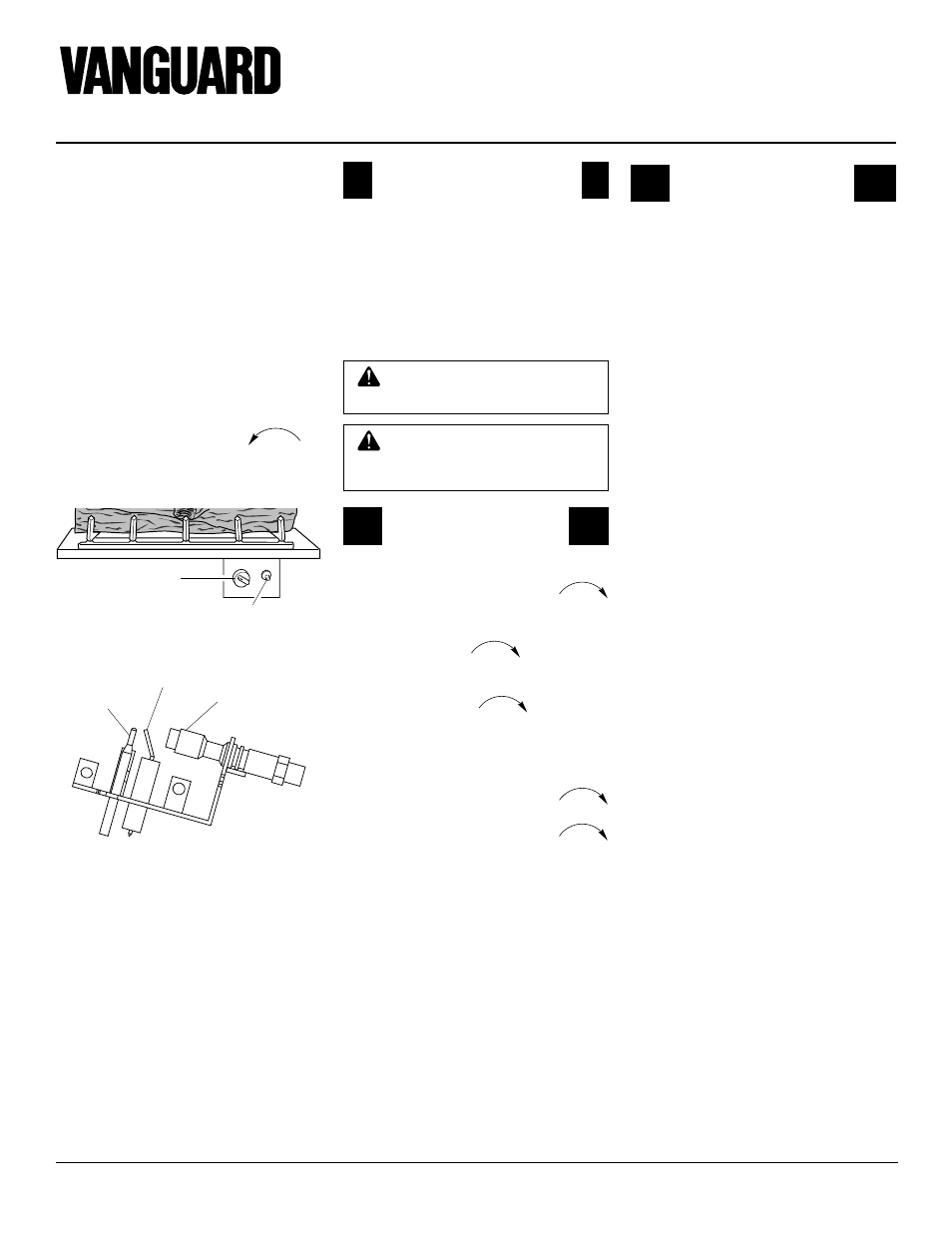

Figure 30 - Pilot
WARNING: Do not operate
heater between locked positions.
CAUTION: Do not try to adjust
heating levels by using the equip-
ment shutoff valve.
VARIABLE CONTROL
OPERATION
The variable control valve can be set to any
heat setting and flame height desired, by
simply turning the control knob until that
setting is attained. Even the lowest setting
provides realistic flames and glowing em-
bers from two burners. Selecting higher
settings produces greater heat output. This
results in increased heating comfort.
Thermocouple
Ignitor Electrode
Pilot Burner
TO TURN OFF GAS
TO APPLIANCE
Shutting Off Fireplace
1. Turn control knob clockwise
Clockwise
to the HIGH position.
2. Slightly depress control knob and
turn clockwise
Clockwise
to the PILOT
position.
3. Slightly depress control knob and
turn clockwise
Clockwise
to the OFF
position.
Shutting Off Burners Only (pilot
stays lit)
1. Turn control knob clockwise
Clockwise
to the HIGH position.
2. Press in and turn clockwise
Clockwise
to the PILOT position.
IGNITOR
Figure 29 - Control Knob and Ignitor
Button Location
OPERATING
FIREPLACE
Continued
Ignitor Button
Control Knob
Continued
MANUAL LIGHTING
PROCEDURE
1. Follow steps 1 through 5 under Light-
ing Instructions, page 15.
2. Depress control knob and light pilot
with match.
3. Keep control knob pressed in for 30
seconds after lighting pilot. After 30
seconds, release control knob. Now
follow step 8, column 1.
7. Keep control knob pressed in for 30
seconds after lighting pilot. After 30
seconds, release control knob.
Note: If pilot goes out, repeat steps
3 through 7.
• If control knob does not pop out
when released, contact a qualified
service person or gas supplier for
repairs.
8. Slightly depress and turn control
knob counterclockwise
C-clockwise
to
the HIGH position. Both burners
should light. Set control knob to ei-
ther HIGH or LOW.
