Vidikron VL-37 Owner’s Operating Manual
21
RS-232 Controller
Connection
Use a standard, 9-pin RS-232 cable to connect a PC or home theater control/automation
system (if present) to the RS-232 port on the DView; see Figure 3-7.
For more information about using this connection, refer to Serial Communications on
page 47.

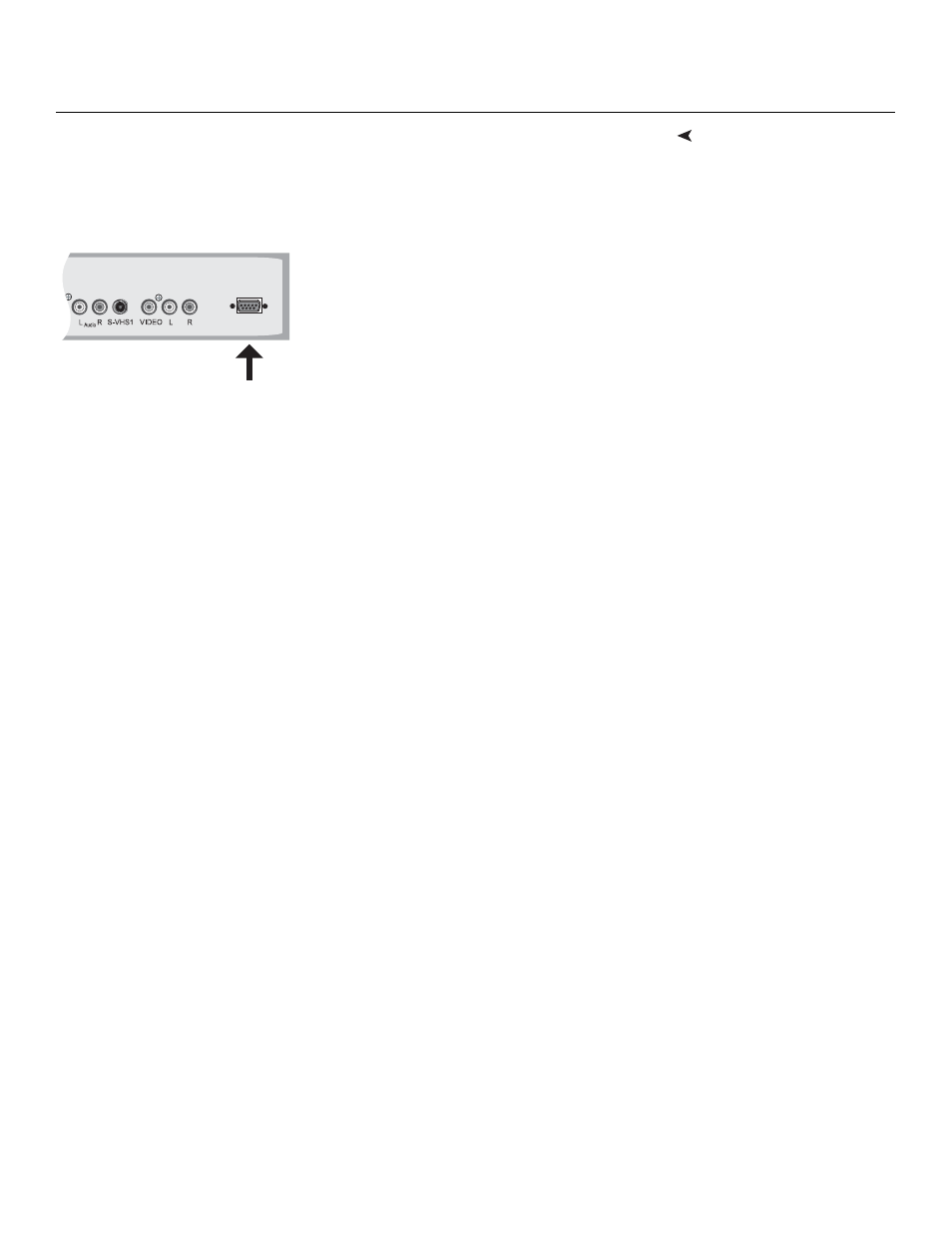

Figure 3-7. RS-232 Control System Connection
Connector Pin Assignments:
2 Receive
Data
3 Transmit
Data
5
Ground
1, 4, 6, 7, 8, 9
Not Connected
INPUT1
MONITOR-OUT
