MONITOR OUT Connection
The DView has a monitor out feature for connecting a second VCR or other auxiliary
equipment. Connect the MONITOR OUT audio and video jacks to the audio and video inputs
of the VCR or other equipment as shown in Figure 3-5.
You can route either the main or picture-in-picture (PIP) source to the monitor outputs. For
more information, refer to Monitor Out on page 37.

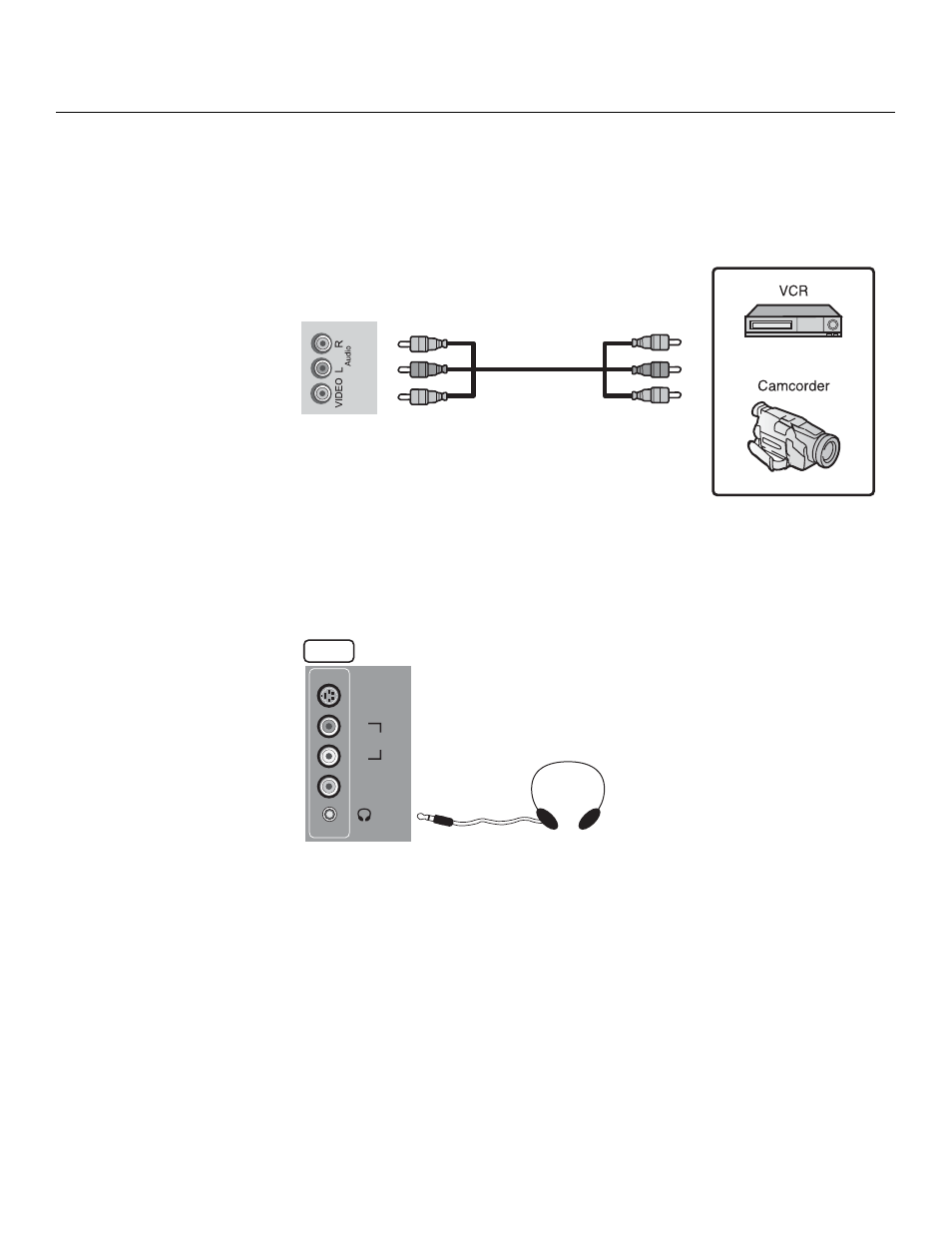

Figure 3-5. Monitor Output Connections
Connecting Headphones
You can connect a set of headphones to the DView to watch a program without disturbing
others. Connect them to the headphone output located at INPUT 2; see Figure 3-6.
Figure 3-6. Connecting Headphones
➤
MONITOR OUT
➤
Input2
S-Video
Video
R
Audio
L
