Vidikron VL-37 Owner’s Operating Manual
19
Component Video Connections: If you have a DVD player or DTV decoder with a
component (YPbPr) output, connect it to INPUT 3 or INPUT 4 of the DView as shown in Figure
3-3.

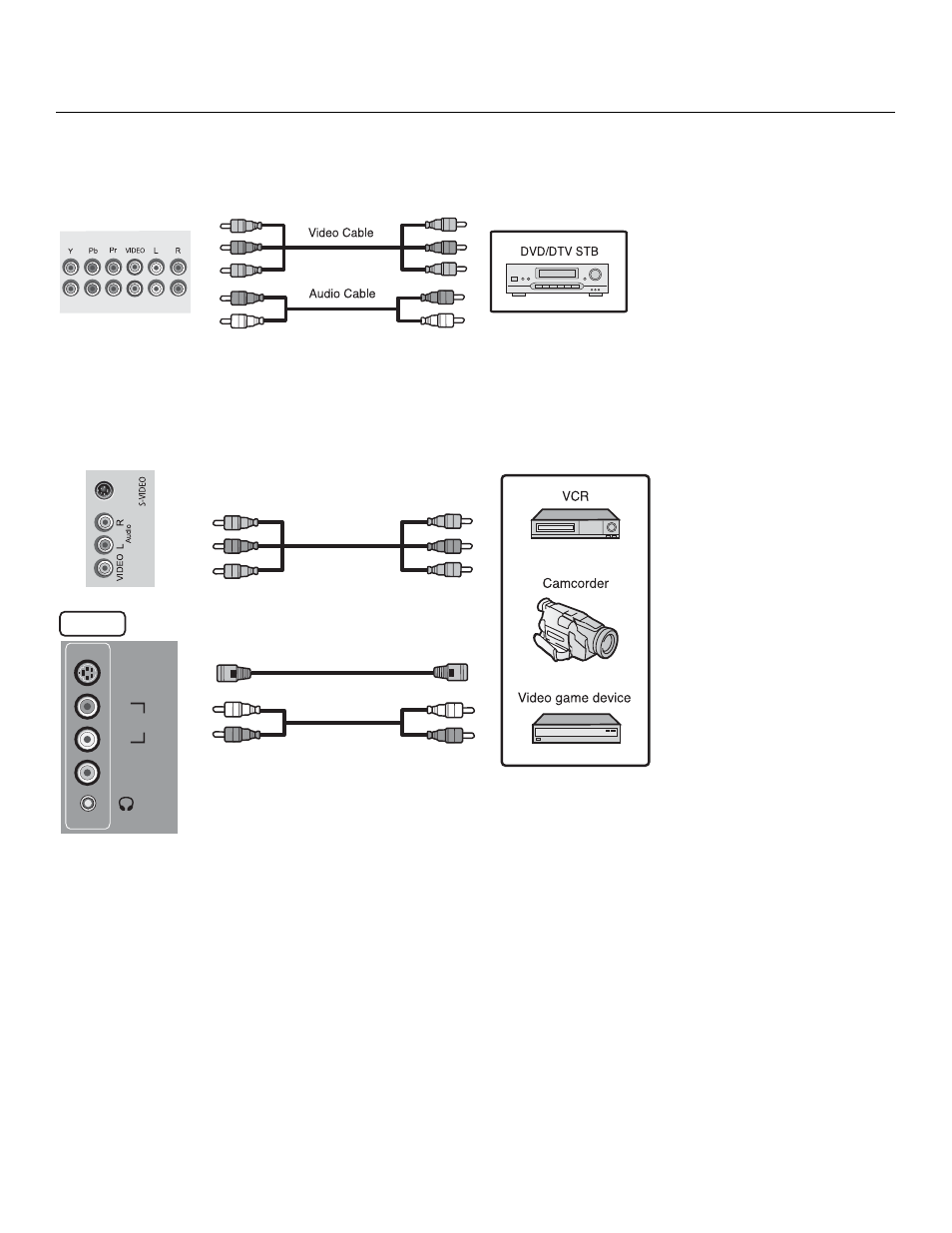

Figure 3-3. Component Video Connections
Composite/S-Video Connections: The DView has two (2) S-Video and four (4) composite
video inputs for connecting a VCR, camcorder, laser disc player or DVD player; see Figure 3-4.
Figure 3-4. Composite and S-Video Connections
INPUT4
INPUT3
INPUT1
Input 2
S-Video
Video
R
Audio
L
Composite Video
(INPUT 1, INPUT 2, INPUT 3 or INPUT 4)
S-Video
(INPUT 1 or INPUT 2)
