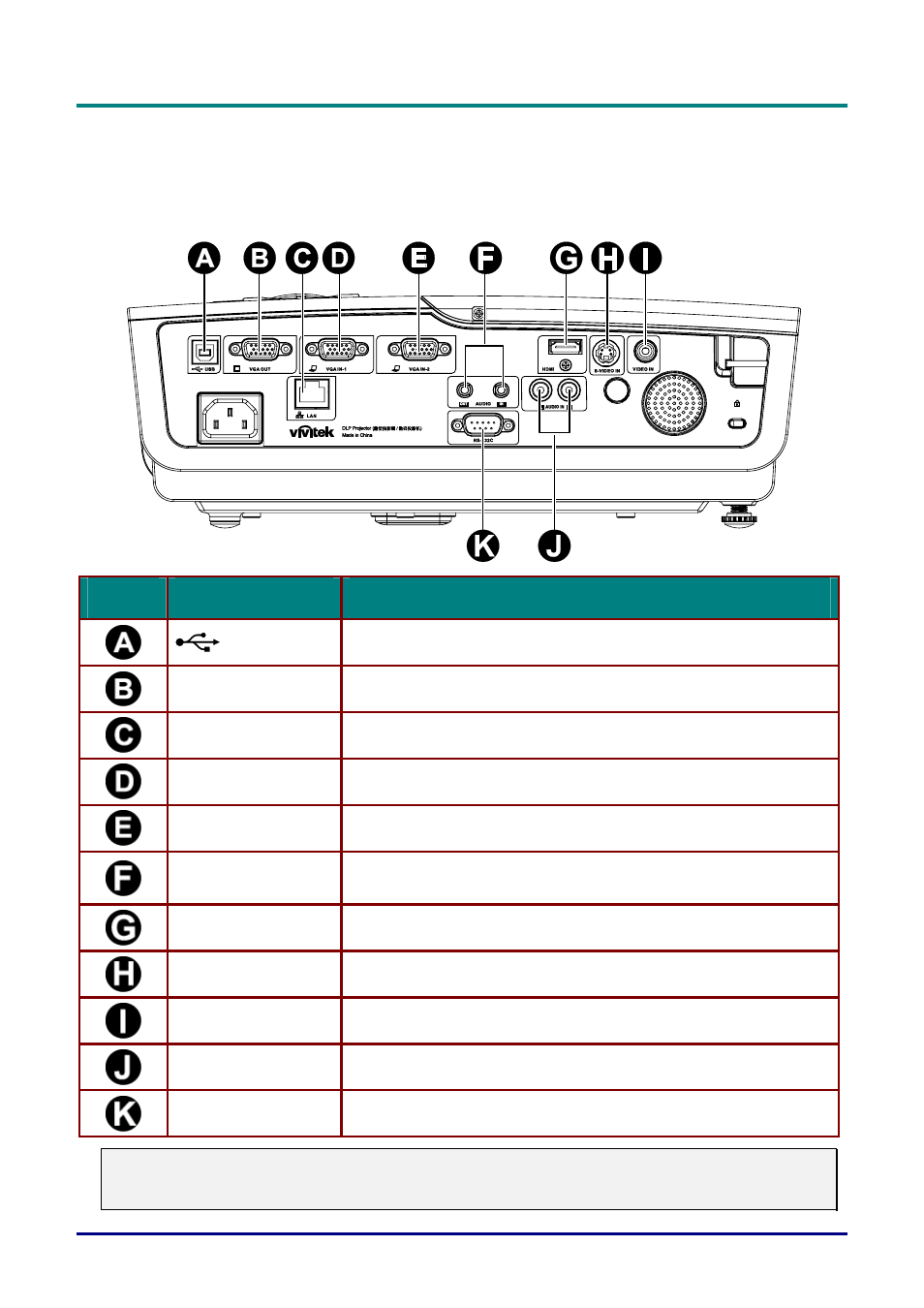

Connecting Input Devices
A PC or notebook computer and video devices can be connected to the projector at the same time. Video
devices include DVD, VCD, and VHS players, as well as movie camcorders and digital still cameras.
Check the user manual of the connecting device to confirm it has the appropriate output connector.
I
TEM
L
ABEL
D
ESCRIPTION
(USB)
Connect the USB CABLE from a computer.
VGA OUT
Connect the RGB CABLE to a display.
LAN
Connect a LAN CABLE from a computer
VGA IN – 1
Connect the RGB CABLE from a computer and components
VGA IN – 2
Connect the RGB CABLE from a computer.
AUDIO IN
AUDIO OUT
Connect an AUDIO CABLE from the input device
Connect an AUDIO CABLE for audio loop through
HDMI
Connect an HDMI CABLE from an HDMI device
S-VIDEO
Connect the S-VIDEO CABLE from a video device.
VIDEO
Connect the COMPOSITE CABLE from a video device.
AUDIO IN (L and R)
Connect the COMPOSITE CABLES from a video device
RS-232C
Connect the RS-232 serial cable for remote control
Warning:
As a safety precaution, disconnect all power to the projector and connecting devices before making
connections.
– 10 –
