Proper installation/ducting is
extremely important to ensure
maximum performance. Use a qualified
and trained installer.
DUCTING
• Check with a qualified and
trained installer or local codes
for makeup air requirements,
if any.
• Max. duct run
o For 300 – 1,200 CFM—50’
(15.2 m)
o For 1,500 CFM—75’
(22.9 m)
o Duct run length is for
general reference only;
always use a qualified and
trained installer.
o Straight runs and gradual
turns are best; for example,
each 90° elbow is equivalent
to 5’ – 10’ (1.52 –
3.05 cm) of straight run.
• 7” round duct for 300 – 600
CFM; 10” for 900 – 1500 CFM
o Never use flexible duct; it
creates back pressure/air
turbulence and greatly
reduces performance.
GAS
Not applicable
ELECTRICAL
• Hardwire direct with two-wire
with ground
• 120 VAC/60 Hz
• Max. amp usage (rating
includes rec. ventilator kit
rating)
PLUMBING
Not applicable
P L A N N I N G A N D D E S I G N G U I D E
V I K I N G R A N G E . C O M • 1 - 8 8 8 - V I K I N G 1

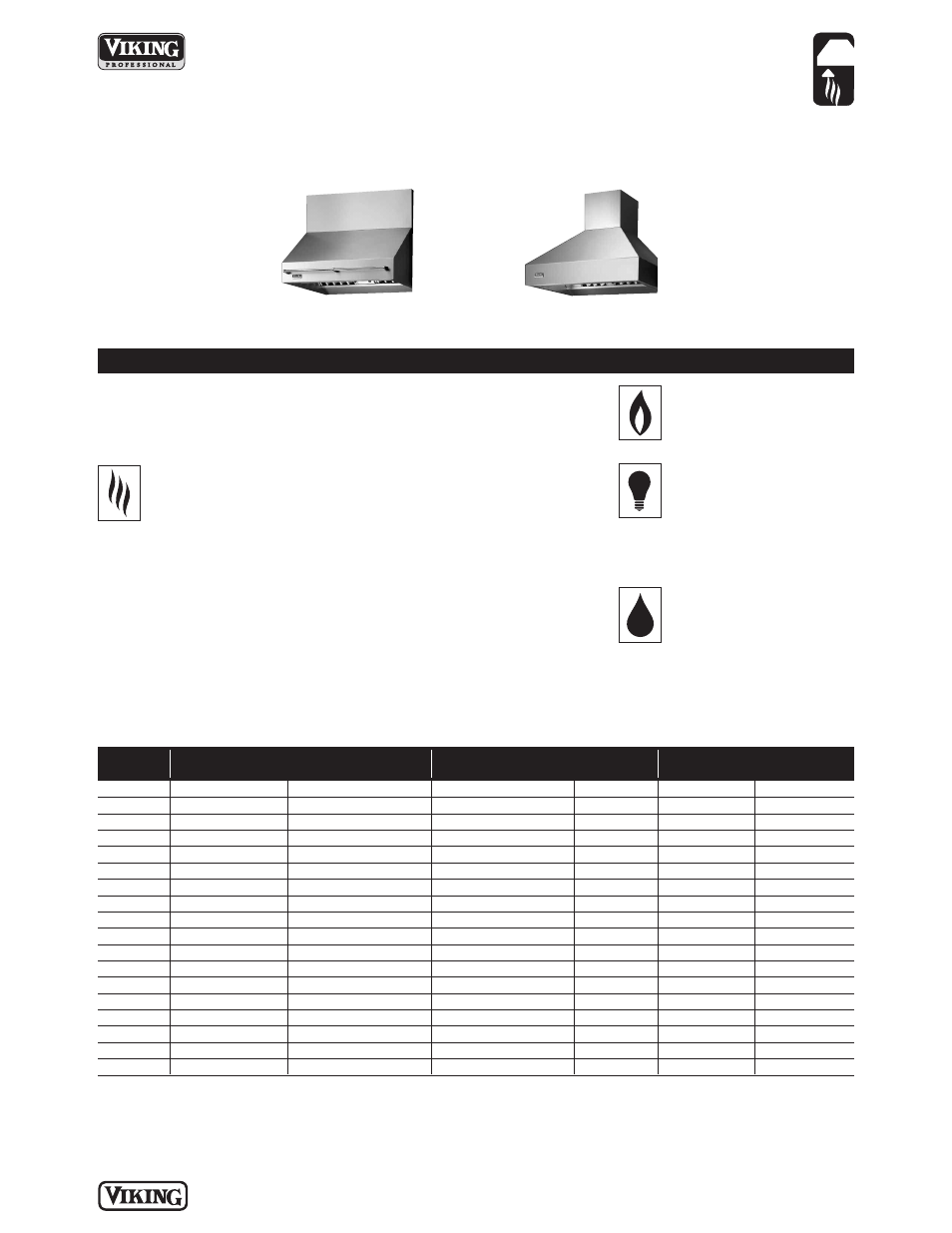

VCWH Professional
Chimney Wall Hood
VWH Professional
Wall Hood
VENTILATION
Professional Built-In 18”H.
Wall Hood/Chimney Wall Hood
Installation Requirements
Model Ventilator Kits Duct Size Max. Amps
Interior Exterior Interior Exterior Interior Exterior
VWH24481 VINV300/600 DEV900/1200*/DIL900/1200 7” (17.8 cm) 10” (25.4 cm) 5.0/6.2 8.7/6.1
VWH30481 VINV300/600 DEV900/1200*/DIL900/1200 7”(17.8 cm)/10” (25.4 cm) 10” (25.4 cm) 5.0/6.2/8.7 8.7/6.1
VWH36481 VINV300/600/1200* DEV900/1200*/DIL900/1200 7”(17.8 cm)/10” (25.4 cm) 10” (25.4 cm) 5.0/6.2/8.7 8.7/6.1
VWH42481 VINV600/1200* DEV900/1200*/DIL900/1200 7”(17.8 cm)/10” (25.4 cm) 10” (25.4 cm) 6.2/8.7 8.7/6.1
VWH48481 VINV1200* DEV1200/1500**/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.1 8.4/9.1
VWH54481 VINV1200* DEV1200/1500**/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.1 8.4/9.1
VWH60481 VINV1200* DEV1200/1500**/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.5 8.8/9.5
VWH66481 VINV1200* DEV1200/1500**/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.5 8.8./9.5
VWH36781 VINV300/600/1200* DEV900/1200*/DIL900/1200 7”(17.8 cm)/10” (25.4 cm) 10” (25.4 cm) 5.0/6.2/8.7 8.7/6.1
VWH48781 VINV1200* DEV1200/1500**/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.1 8.4/9.1
VWH60781 VINV1200* DEV1200/1500**/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.5 8.8/9.5
VCWH3048 VINV300/600 DEV900/1200*/DIL900/1200 7” (17.8 cm) 10” (25.4 cm) 3.9/6.0 8.7/6.0
VCWH3648 VINV300/600* DEV900/1200*/DIL900/1200 7” (17.8 cm) 10” (25.4 cm) 3.9/6.0 8.7/6.0
VCWH4248 VINV600* DEV900/1200*/DIL900/1200 7” (17.8 cm) 10” (25.4 cm) 6.0 8.7/6.
VCWH4848 VINV1200* DEV1200/1500*/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.5 8.5/9.2
VCWH5448 VINV1200* DEV1200/1500/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.5 8.5/9.2
VCWH6048 VINV1200* DEV1200/1500/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.9 8.9/9.7
VCWH6648 VINV1200* DEV1200/1500/DIL1200 10” (25.4 cm) 10” (25.4 cm) 11.9 8.9/9.7
* A 1,200 CFM interior- or exterior-power ventilator should be used when installed over range/rangetop with gas char-grill.
** It is recommended that the 1,500 CFM ventilator be used with longer duct runs.
Note: Maximum amp rating for hoods includes recommended ventilator kit rating; All products must be hard wired with 2-wire with ground. An interior-
or exterior-power ventilator kit must be purchased for installation with all 18”H. hoods.
Note: All CFMs are based on tests with 0.1 static pressure. Without applying static pressure (some brands do not), CFM could be
greatly overstated.
UTILITY REQUIREMENTS
R E V I S E D 5 / 2 / 1 1
© 2 0 1 1 V R C — INFORMATION SUBJECT TO CHANGE
