VIZIO VS42L FHDTV10A User Manual

Version 2/11/2008

19

www.VIZIO.com

2.4

2.4

2.4

2.4

Connecting Your Basic Set

Connecting Your Basic Set

Connecting Your Basic Set

Connecting Your Basic Set-

-

-

-Top Box

Top Box

Top Box

Top Box

2.4.1

2.4.1

2.4.1

2.4.1

U

U

U

Using Composite Video

sing Composite Video

sing Composite Video

sing Composite Video


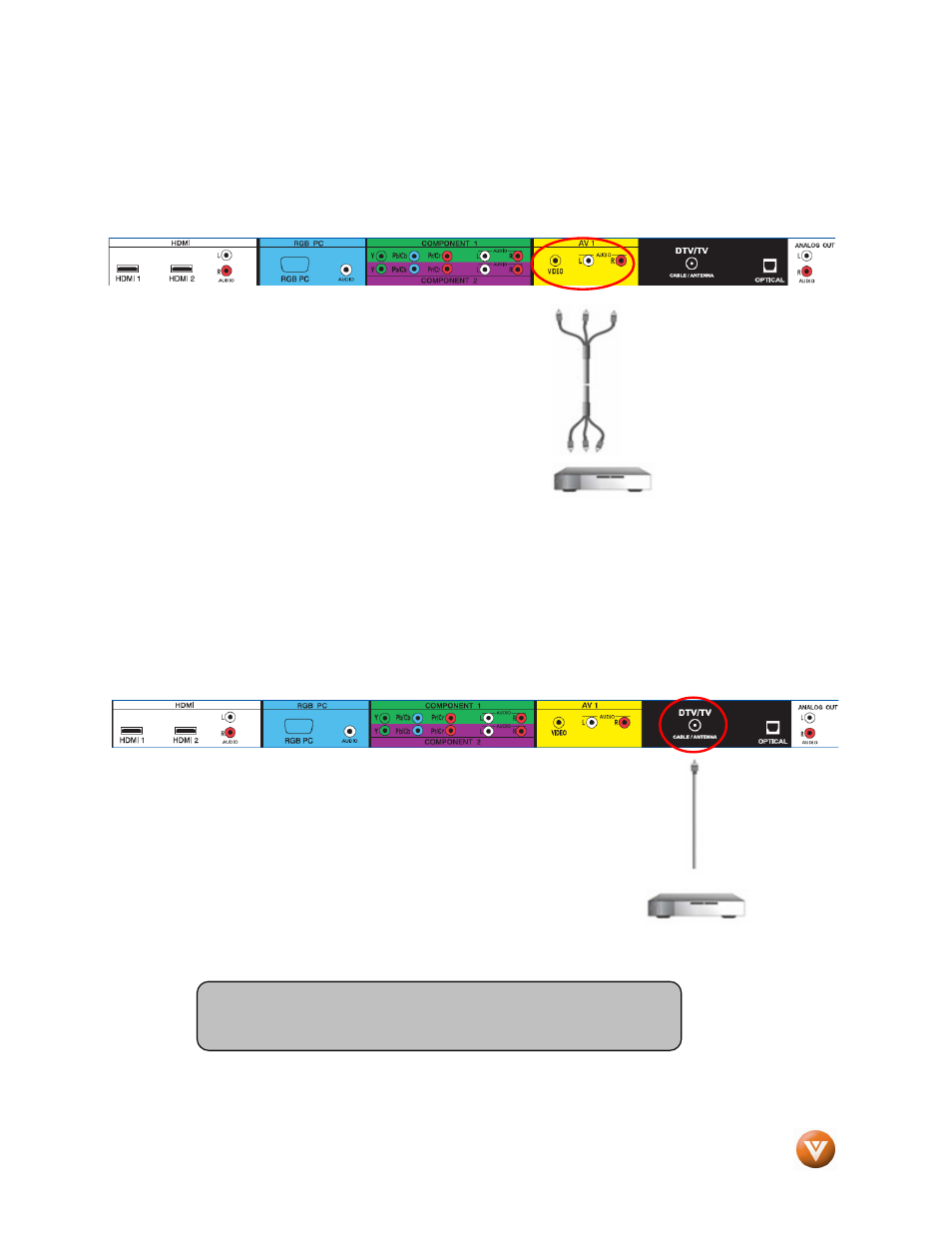

1.

Turn off the power to the HDTV and Set-Top Box.

2.

Using the AV Cable, connect the Video (yellow
color) connector on your Set-Top Box to the
corresponding Video (yellow color) connector in
the AV1 group (yellow color area) at the rear of
the HDTV.

3.

Using the white and red connectors, connect the
cable to the audio output connectors associated
with the Video output on your Set-Top Box and
connect the other end to the audio connectors
associated with the AV1 input (yellow color area) at the rear of the HDTV.

4.

Turn on the power to the HDTV and Set-Top Box.

5.

Select AV1 using the INPUT button on the remote or side of the HDTV, or directly by
pressing the AV button on the Remote Control.


2.4.2

2.4.2

2.4.2

2.4.2

Using Coax (RF)

Using Coax (RF)

Using Coax (RF)

Using Coax (RF)


1.

Turn off the power to the HDTV and Set-Top Box.

2.

Using a Coax (RF) cable, connect one end to the TV OUT (RF) on
your Set Top Box and the other end to the DTV/TV input at the rear
of the HDTV.

3.

Turn on the power to the HDTV and Set-Top Box.

4.

Select TV using the INPUT button on the remote or side of the
HDTV, or directly by pressing the TV button (below the WIDE
button) on the Remote Control.






Note: Refer to your Set Top Box user manual for more information
about selecting the video or RF output of the product.
