Mgb series – Utica Gas-fired Boiler User Manual
Page 28
*
Pump size
Boiler
Natural
Dimensions
Supply &
No.
Gas
Return
Inlet
A
B
C
D
E
F
Tappings
MGB 50
1/2"
11.1/8"
5.1/2"
4"
30.3/4"
36.1/4"
6"
1.1/4"
MGB 75
1/2"
15
7.1/2"
5"
30.3/4"
37.3/4"
6"
1.1/4"
MGB 100
1/2"
15
7.1/2"
6"
30.3/4"
37.1/4"
6.1/2"
1.1/4"
MGB 125
1/2"
18.7/8"
9.1/2"
6"
30.3/4"
37.1/4"
6.1/2"
1.1/4"
MGB 150
1/2"
18.7/8"
9.1/2"
7"
30.3/4"
37.3/4"
7"
1.1/4"
MGB 175
1/2"
22.3/4"
11.3/8"
7"
30.3/4"
38.3/4"
7"
1.1/4"
MGB 200
1/2"
22.3/4"
11.3/8"
8"
30.3/4"
38.3/4"
8"
1.1/4"
MGB 250
3/4"
265.8"
13.1/4"
8"
32.3/4"
40.3/4"
8"
1.1/4"
MGB 300
3/4"
30.1/2"
15.1/4"
9"
32.3/4"
42.3/4"
10"
1.1/4"

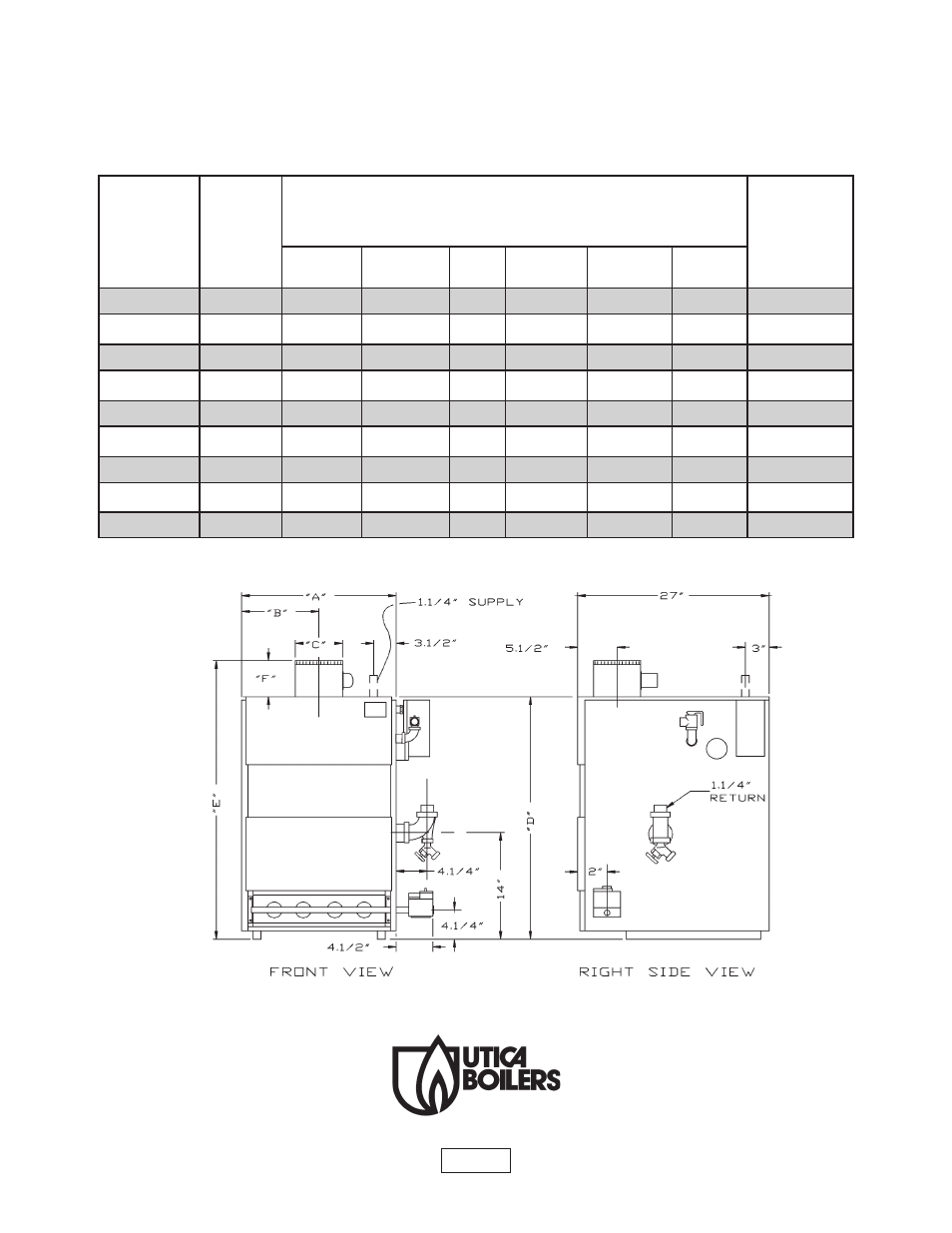

MGB SERIES
MGB SERIES
MGB SERIES
MGB SERIES
MGB SERIES
DIMENSIONS FOR N
DIMENSIONS FOR N
DIMENSIONS FOR N
DIMENSIONS FOR N
DIMENSIONS FOR NA
A
A
A
ATURAL GAS
TURAL GAS
TURAL GAS
TURAL GAS
TURAL GAS AND PR
AND PR
AND PR
AND PR
AND PROP
OP
OP
OP
OPANE GAS
ANE GAS
ANE GAS
ANE GAS
ANE GAS
*
Propane gas inlet, all units, 1/2"
37611601
PAGE 27
REV 14.1, May 2004
Solutions you can be comfortable with.
