2175BEVS/2175BEVOL2 Beverage Center
www.U-LineService.com
12
03/2008

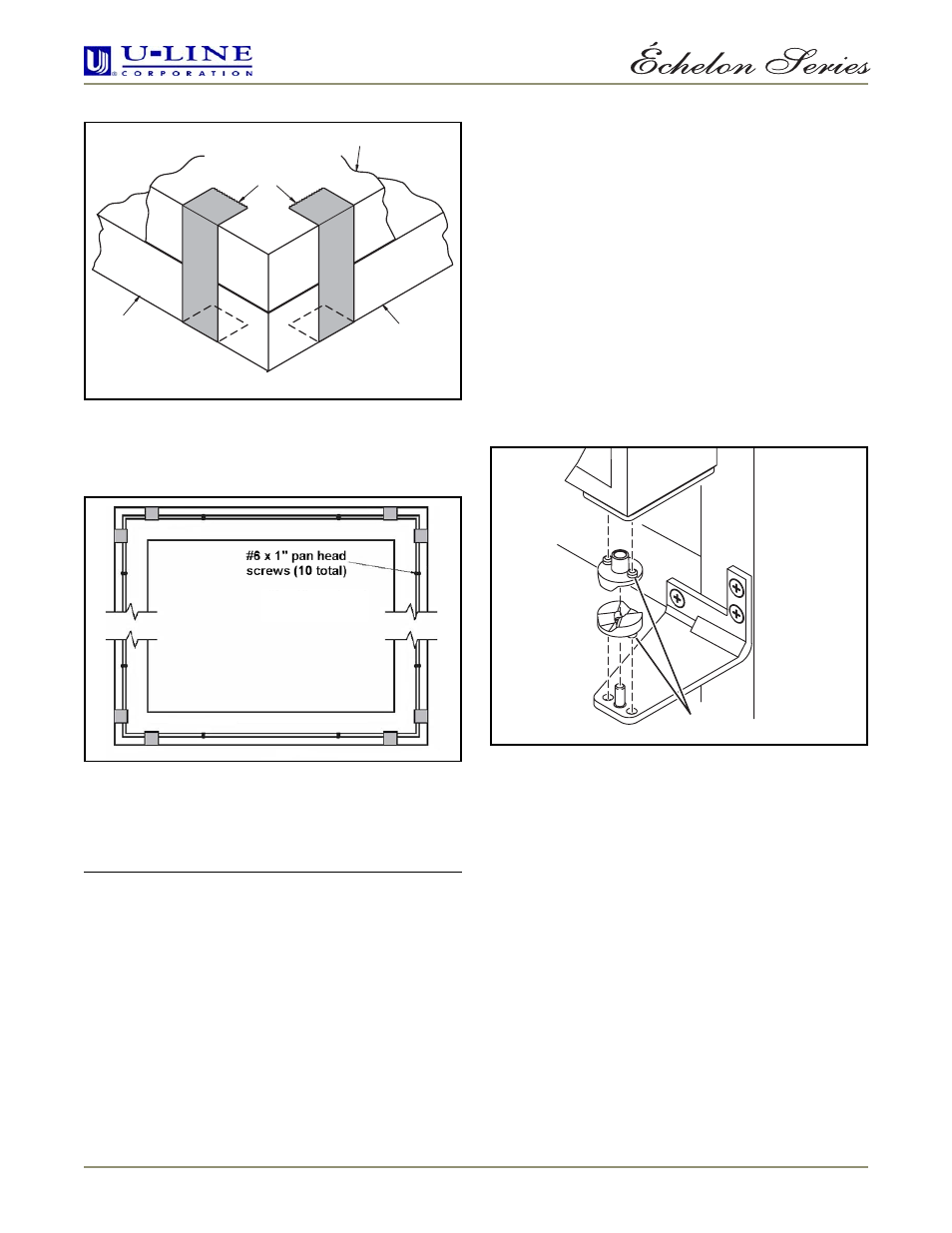

Figure 17
12. Use the door frame holes as a guide to lightly punch
pilot holes for the #6 x 1” pan head screws (Figure 18).
Figure 18
13. Attach the door to the overlay using #6 x 1” wood
screws.
IMPORTANT
If you decide to drill pilot holes, remove the wood
overlay from the door, and do not use a drill larger
than 7/64”, and do not drill deeper than 3/8”. The
door frame and wood overlay must be aligned
properly or the door will not operate correctly.
Note: After attaching the wood to the door, double check
the bottom pivot hole location. If the hole in the pivot
bracket is covered by any wood, chase thru the hole with
a 11/32” drill to open hole in door panel. DO NOT drill
deeper than 1/4” deep.
ASSEMBLING DOOR TO CABINET
14. Starting at the corners and working toward the center,
push the door gasket back into place. Make sure gasket
is fully seated on all four sides and corners.
15. Check the closure assembly on the bottom hinge to be
sure it is seated correctly in the bosses in the hinge.
16. Position door over closer. Be sure the door hinge plate
holes align with the bosses on the closer (Figure 19).
Failure to do so will result in the door not sitting in the
proper position and door will not align correctly.
(Sometimes it is helpful to open the door 180° to have
the closer and pivot plate align correctly.)
Figure 19
17. Holding the door in the closed position, install the pivot
post (removed in step 7) thru the top hinge into the top
pivot plate. Tighten securely with a Phillips screwdriver,
making sure post is seated fully.
18. Adjust door as needed for proper closure. Refer to the
following section for adjustment procedures.
TAPE
DOOR FRAME
BOTTOM OF
OVERLAY
TOP OF
OVERLAY
ULIN_0418_A
Door closers
ULIN 0004 A
