2175BEVS/2175BEVOL2 Beverage Center
www.U-LineService.com 10 03/2008
Overlay Frame
(2175BEVOL2 Units Only)
FRAME PREPARATION
IMPORTANT
The thickness of the wood overlay panel must be
3/4".
1. Use the following instructions to create or have a
wood overlay panel created for your Échelon Wine
Captain or Beverage Center model as shown in Figure
13.
2. Drill holes for pivot pins, upper door hinge and lower
door hinge as shown.
3. The overlay door panel must be installed in accordance
with the Installation Instructions starting on page 9.

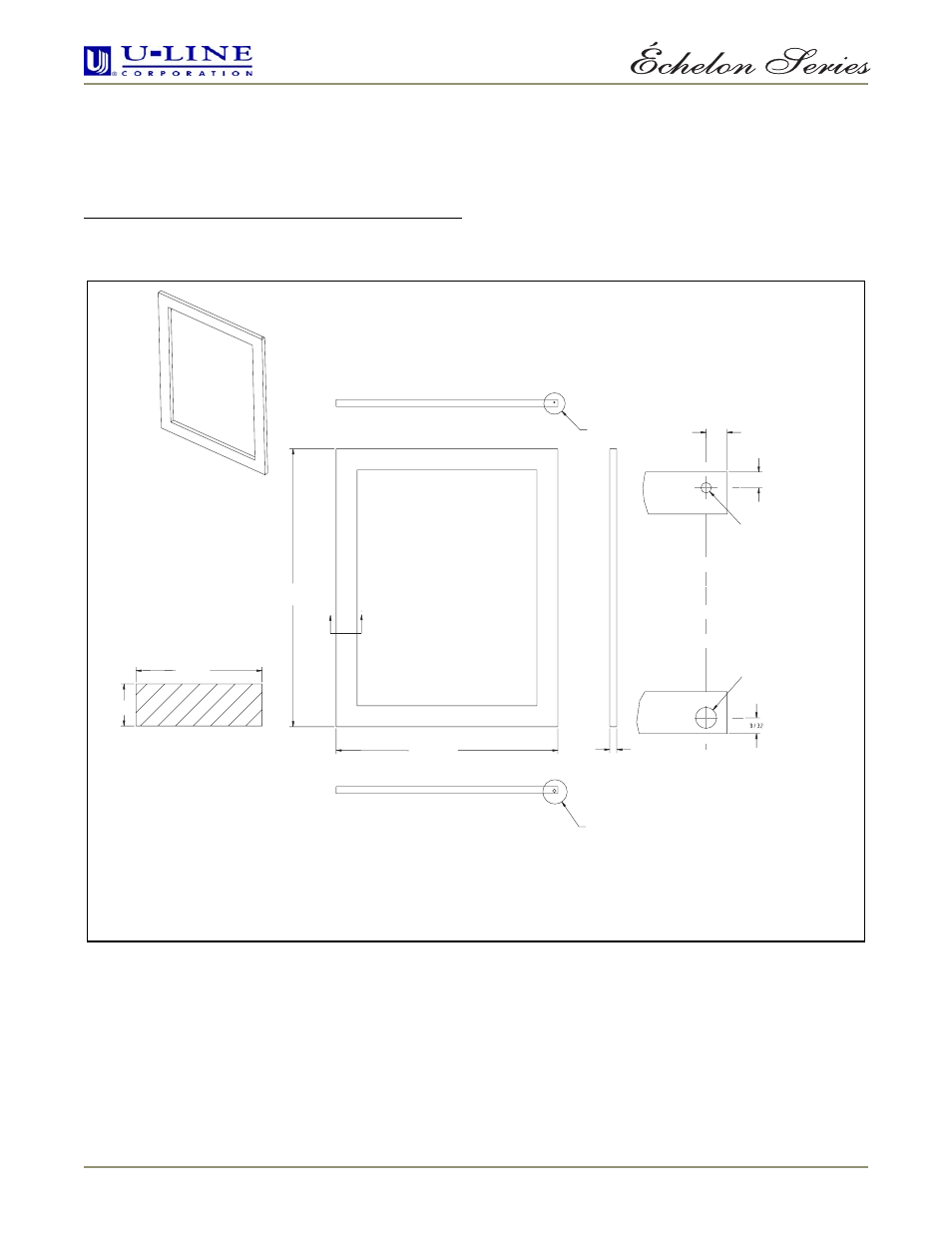

Figure 13
9/32
Dim A: 23-3/4”
2275WCOL
2175WCOL2
2175BEVOL2 Dim A: 14-3/4”
2115WCOL2
See Detail C
3/4”
Detail C
Scale 2:1 Door bottom
Ø 3/8” x 1/4” deep
Chamfer 1/32” x 45°
Detail A
Scale 2:1 Door top
Ø 3/16” x 11/16” deep
9/32”
3/8” See Detail A
29-3/4”
NOTE: Front view of
wood panel with
right-hand hinge shown
(mirror image
for left-hand hinge)
Section A-A
Scale 2:1
Typ 4 places
NOTE: Final component
is only a picture frame.
No panel inside of rails
and stiles.
Right-hand
isometric view
shown.
Opposite
for left-hand
A A
Dim. A
3/4”
2-1/4”
ULIN_1024_A
