1.4 Internal components

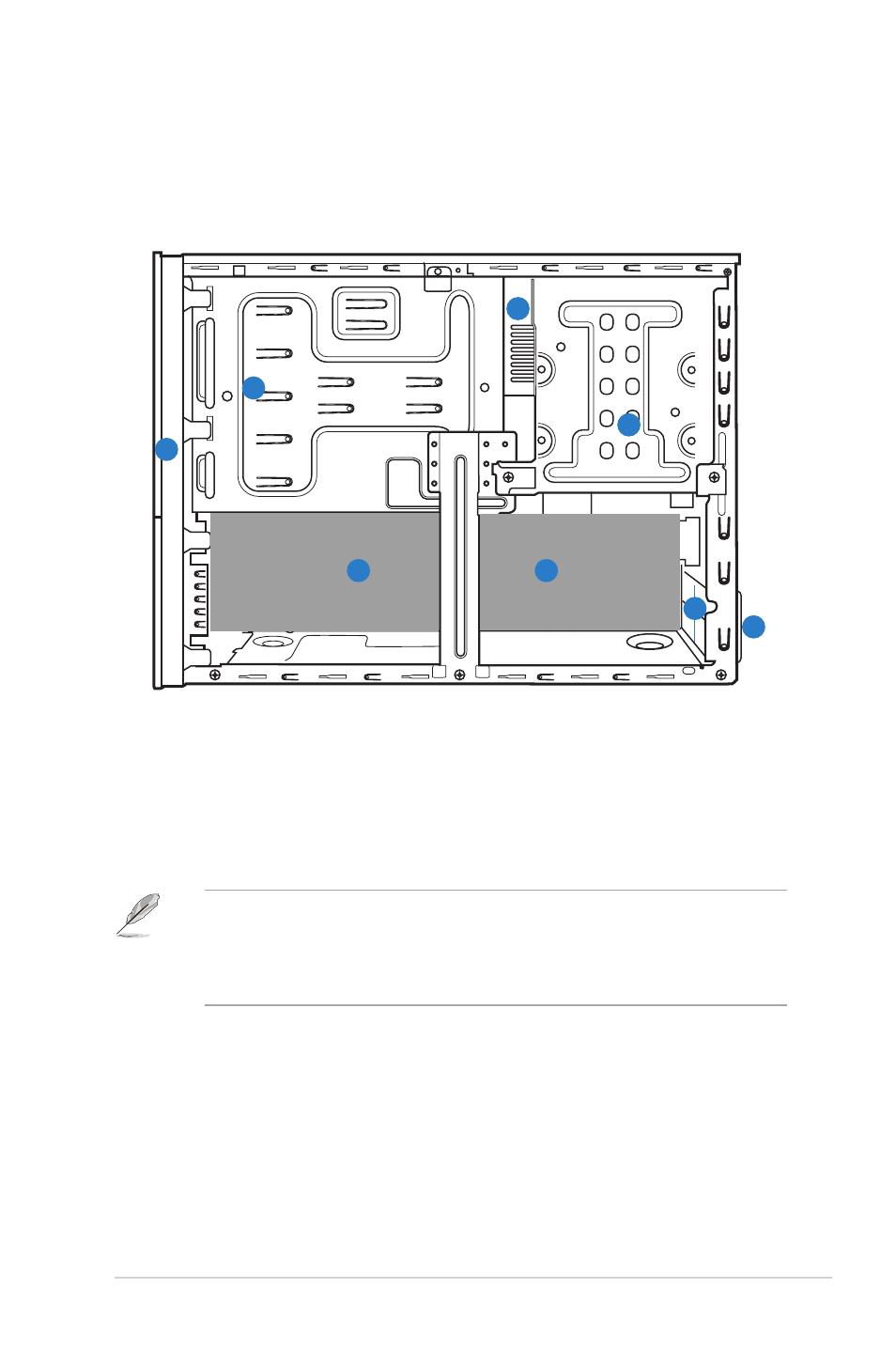

The illustration below is the internal view of the system when you remove the side
cover and the power supply unit. The installed components are labeled for your
reference.
• Refer to the bundled Quick Installation Guide for installing additional
system components and get assistance from professionals when you
disassemble or assemble the system.
• Refer to the Chapter 4 in this user guide for motherboard details.
1. Front panel cover
2. 5.25-inch optical drive bays
3. Hard disk drive bay
4. Power supply unit (under the HDD bay)
5. ASUS motherboard
6. Expansion slot metal brackets
7. Metal bracket lock
1
3
4
5
2
6
5
7
