- 26 -

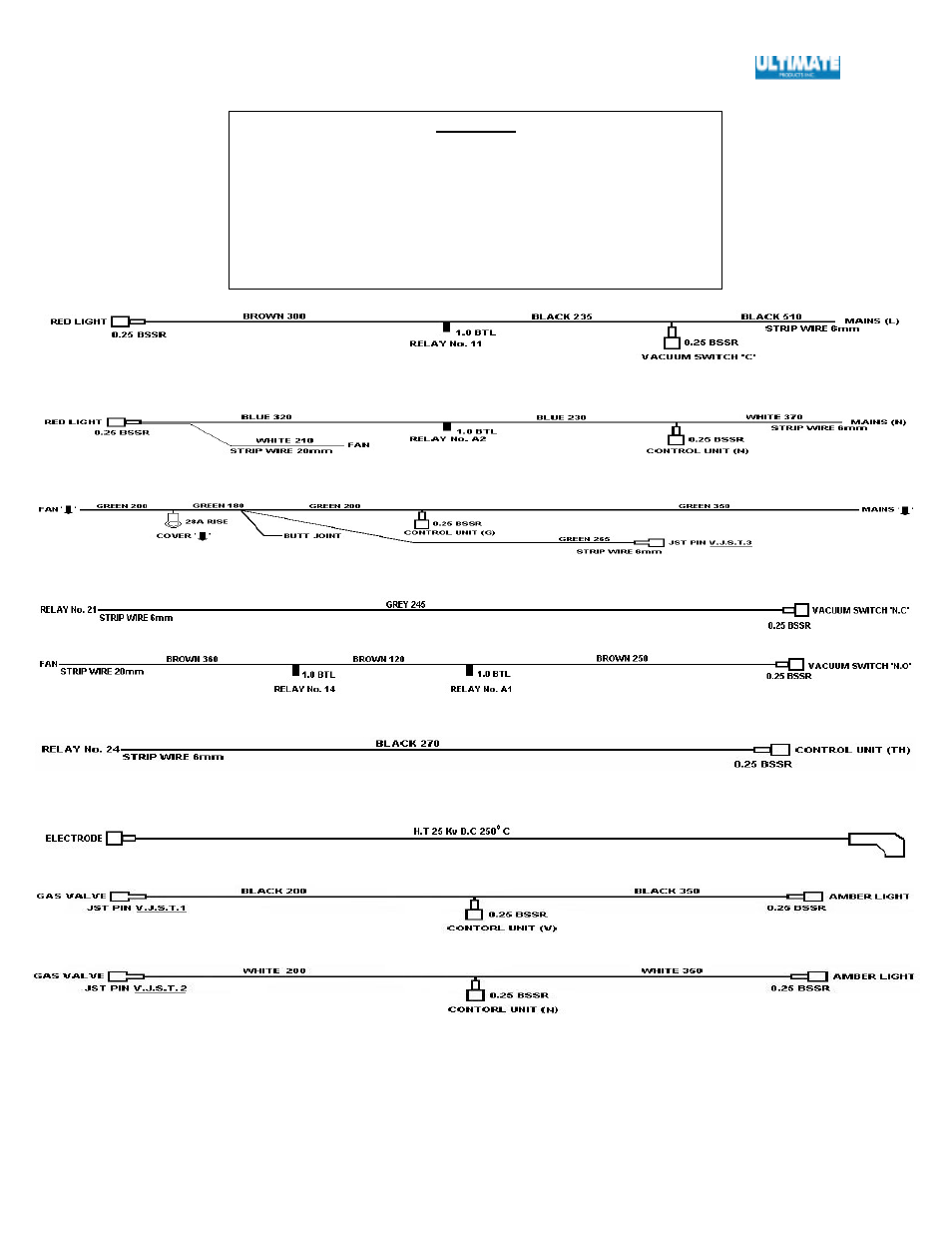

LEGEND
0.25 BSSR
0.25” INSULATED FEMALE RECEPTACLE
1.0 BTL
1.0mm
2
NON-INSULATED BOOTLACE TERMINAL
2BA RSE
2BA RED SHROUDED EYELET
0.187 BSSR
0.187” INSULATED FEMALE RECEPTACLE
0.25 NIFR
0.25” NON- INSULATED FLAG TERMINAL
5 NIFB
5mm NON- INSULATED FEMALE BULLET
WIRE SPECS:
ALL ~ 18 A.W.G. UL 1015
WIRE LENGTH TOL:
+10 / -0
