22 1115R, 1175R, 29R, 1175BEV

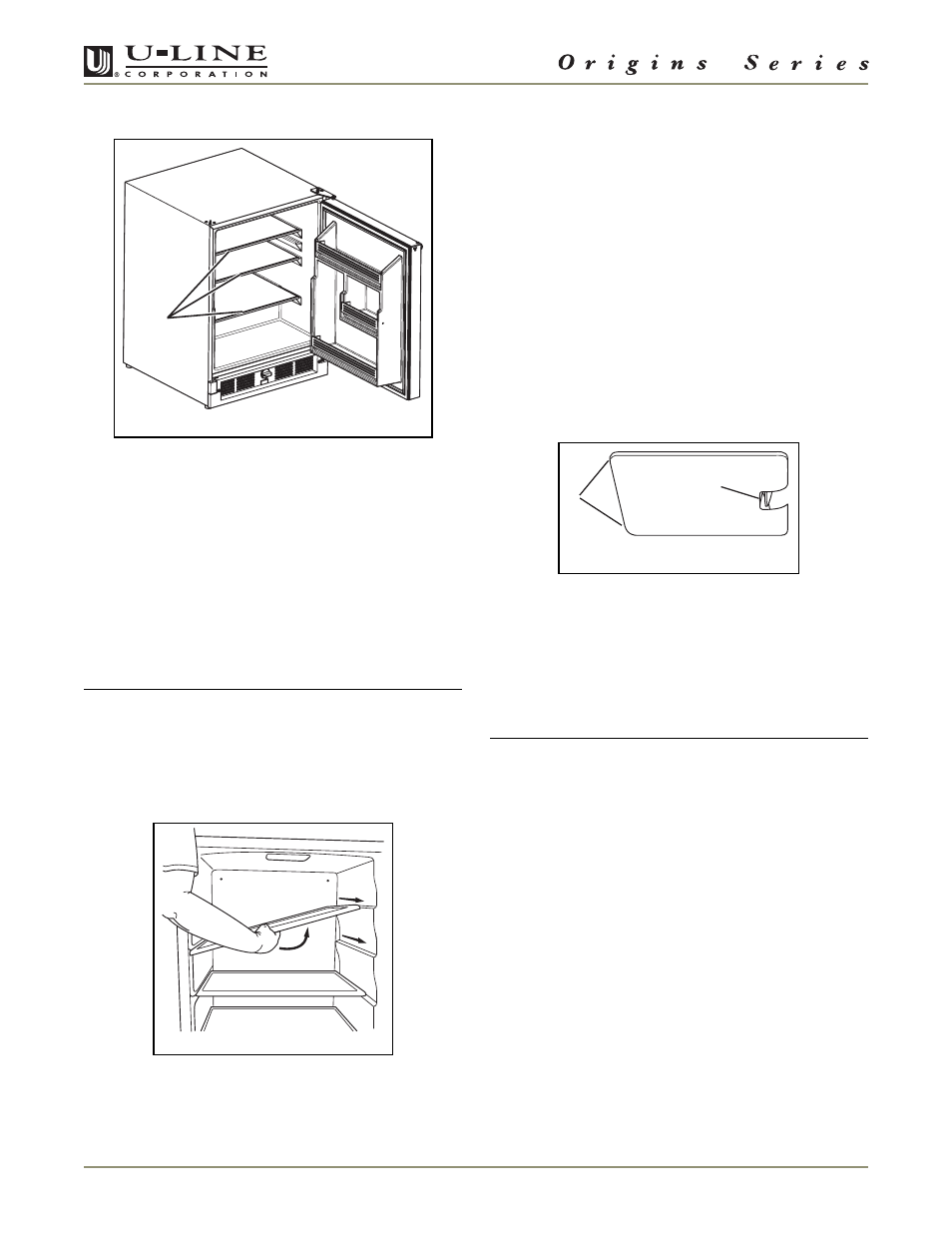

Glass Shelf Removal/Installation
Figure 48
For Models 29R and 1175BEV (Model 29R illustrated
above), reposition the shelves as follows:
1. Open door completely.
2. Grasp the shelf edge in the center (Figure 48, 1), and
slide the shelf from the unit.
3. Reposition the shelf as required, ensuring the raised
white edge strip is toward the rear of the unit and the
decorative graphics, if applied, are on the underside of
the shelves.
IMPORTANT IMPORTANT
• Make sure the shelves are inserted fully into the
unit.
• The white edge strip toward the rear prevents
cans and bottles from freezing against the cold
evaporator.
For all other models, reposition the shelves as follows:
Figure 49
1. Pull shelf out about 6" (Figure 49, 1), until back of
shelf clears the “hump” on the right-hand side.
2. Tilt up right-hand edge of shelf (Figure 49, 2).
3. Remove shelf from unit by pulling out (Figure 49, 3).
Insert the shelves as follows:
1. To move to a different position in the unit, insert shelf
at an angle, approximately 15-20°, over the rib in the
side of the unit where you want to place the shelf. The
shelf must be started into the unit at an angle to clear
the door.
2. Continue to slide the shelf into the unit at an angle
until it clears the door.
3. Lower the shelf and push it in completely.
Light Bulb Replacement
1115R, 1175R and 1175BEV
To replace the light bulb in your U-Line unit:
Figure 50
1. Grasp the edges of the light housing lens
(Figure 50, 1) opposite the exposed tab, and gently
push the lens towards the tab (Figure 50, 2).
2. Pull the edge of the lens down (Figure 50, 1), and
swing it out of the light housing.
IMPORTANT IMPORTANT
ALWAYS use a genuine U-Line replacement bulb (P/N
31317) in the light housing. Use of any other bulb
within the housing will generate excessive heat,
causing damage to the light housing and cabinet
interior, and compromising the precise temperature
control of your unit.
3. Replace the bulb only with a genuine U-Line P/N 31317
replacement.
4. Replace the lens by first inserting the tab side back into
the housing at a slight angle. While gently pushing the
lens towards the tab end, push the free end up into the
housing, and release when you will hear a snap/click.
ULIN_0199_A
1
2
3
1
ULIN_0066_A
1
2
ULIN_0001_A
