UNIDEN Model uh095sx Dual Band (UHF CB/AM CB) Radio
Controls/Connectors

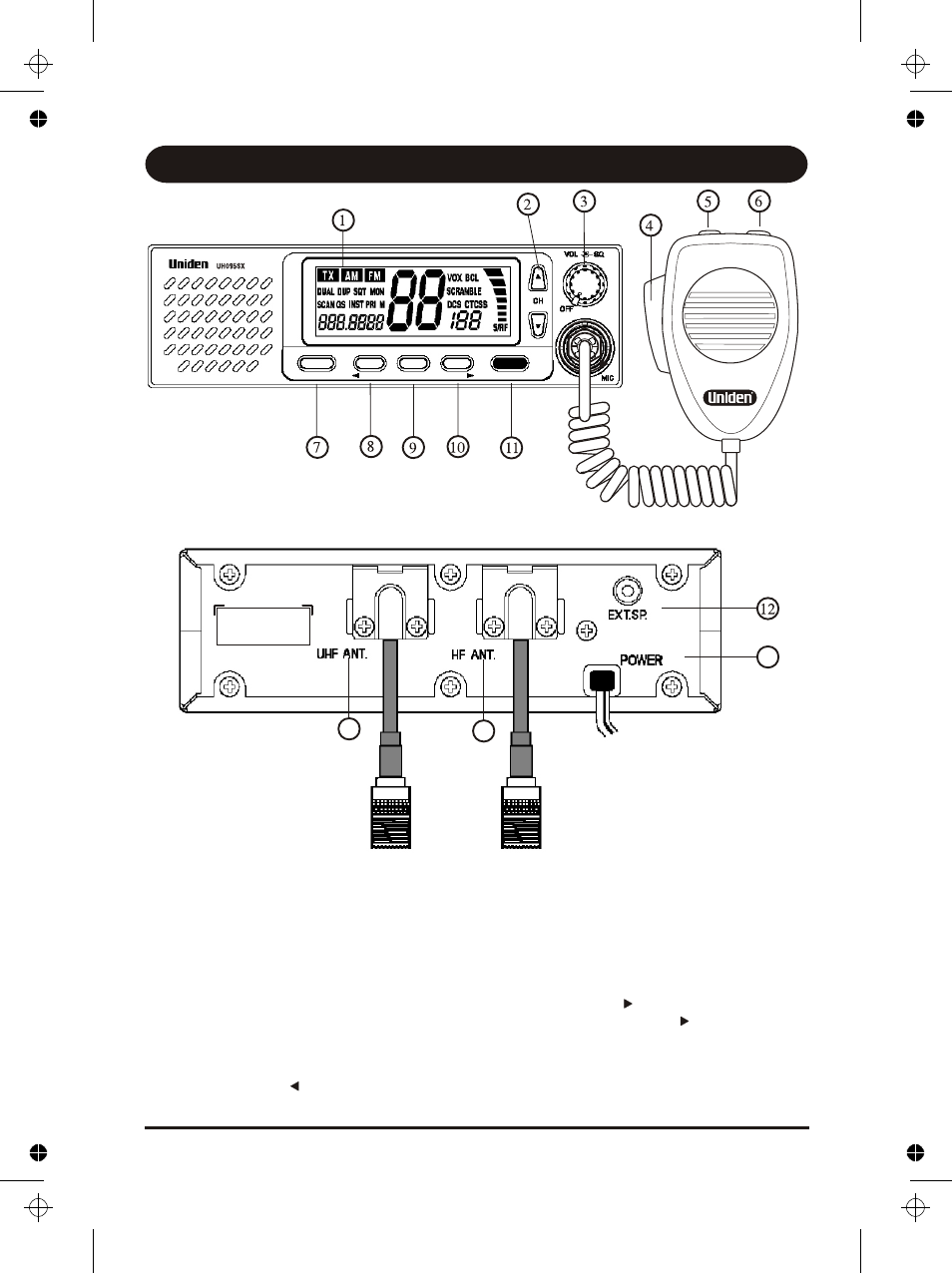

Controls and Connectors
Ref. Item Page Ref. Item Page
(1) Liquid Crystal Display (LCD) 4 (9) SCRAM/DCS/CTCSS
(2) Channel Up/Down 7 - Scramble, DCS/CTCSS Button 14
(3) ON/OFF, Volume & AM Squelch 6 (10) MON/FM SQ/
(4) Push to Talk (PTT) Switch 8 - Monitor, FM Squelch/ Button 7,12
(5) Call Button 8 (11) AM/FM/DUAL Button 6, 7
(6) INST - Instant Button 8 (12) External Speaker Jack -
(7) MENU/ENTER Button 8-9, 11-14 (13) Power Input (13.8VDC) -
(8) SCAN/MEM/ Button 10, 11, 12 (14) HF Antenna Connection (AM) -
(15) UHF Antenna Connection (FM) -
3
13
14 15
SCAN
MEM
SCRAM MON
FM SQ
AM/FM
DCS/CTCSS
POL MENU
ENTER DUAL
