Jumper Setting

3-6

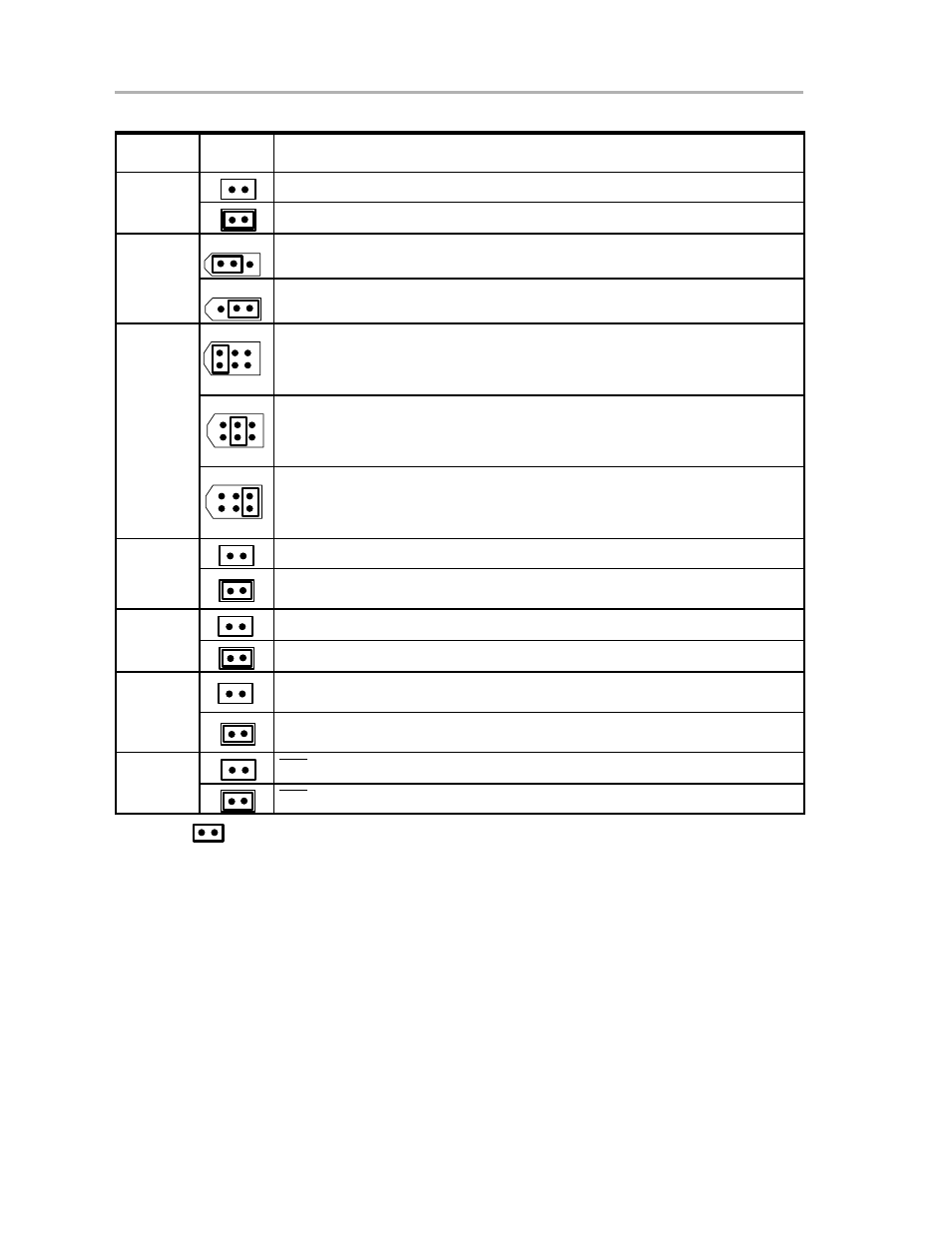

Table 3-5. Jumper Setting Function (Continued)

Reference

Jumper

Setting

Function

Disconnects AGND from DGND.

W11

Connects AGND and DGND together.

1

3

Positive supply rail of op-amp is powered by +15V.

W12

1

3

Positive supply rail of op-amp is powered by V

CC

.

2

6

4

1

5

3

Routes the raw output of the DAC7741 to J4-2 and J5 output terminals.

W13

2

6

4

1

5

3

Routes the output of U2 to J4-2 and J5 output terminals. Used for unipolar and bipolar
modes of operation.

2

6

4

1

5

3

Routes the output of U2 to J4-2 and J5 output terminals. Used for capacitive load
driving.

Disconnects exREFin from the negative input terminal of U2.

W14

Allows exREFin to be routed to the negative input terminal of U2 used for
experimentation purposes only.

Disconnect the negative terminal of U2 to AGND and disable 2x gain.

W15

Configures U2 for a 2

×

gain output.

RSTSEL pin is pulled high and configures the DAC to midscale when POR or reset is
initiated.

W16

RSTSEL pin is pulled low and configures the DAC to minscale when POR or reset is
initiated.

RST pin is pulled high and configures the DAC not to reset (default state).

W17

RST pin is pulled low and holds the DAC to reset state.

Legend:

Indicates the corresponding pins that are shorted or closed.
