33
Connecting Sensors to the XVS
Each XVS may have up to 16 Sensor inputs. These inputs can be used with devices such as infrared devices, motion device, glass
breakage alarms, door and window trips, and many more. The Sensors can be set to Normally Open or Normally Closed inside the
software.

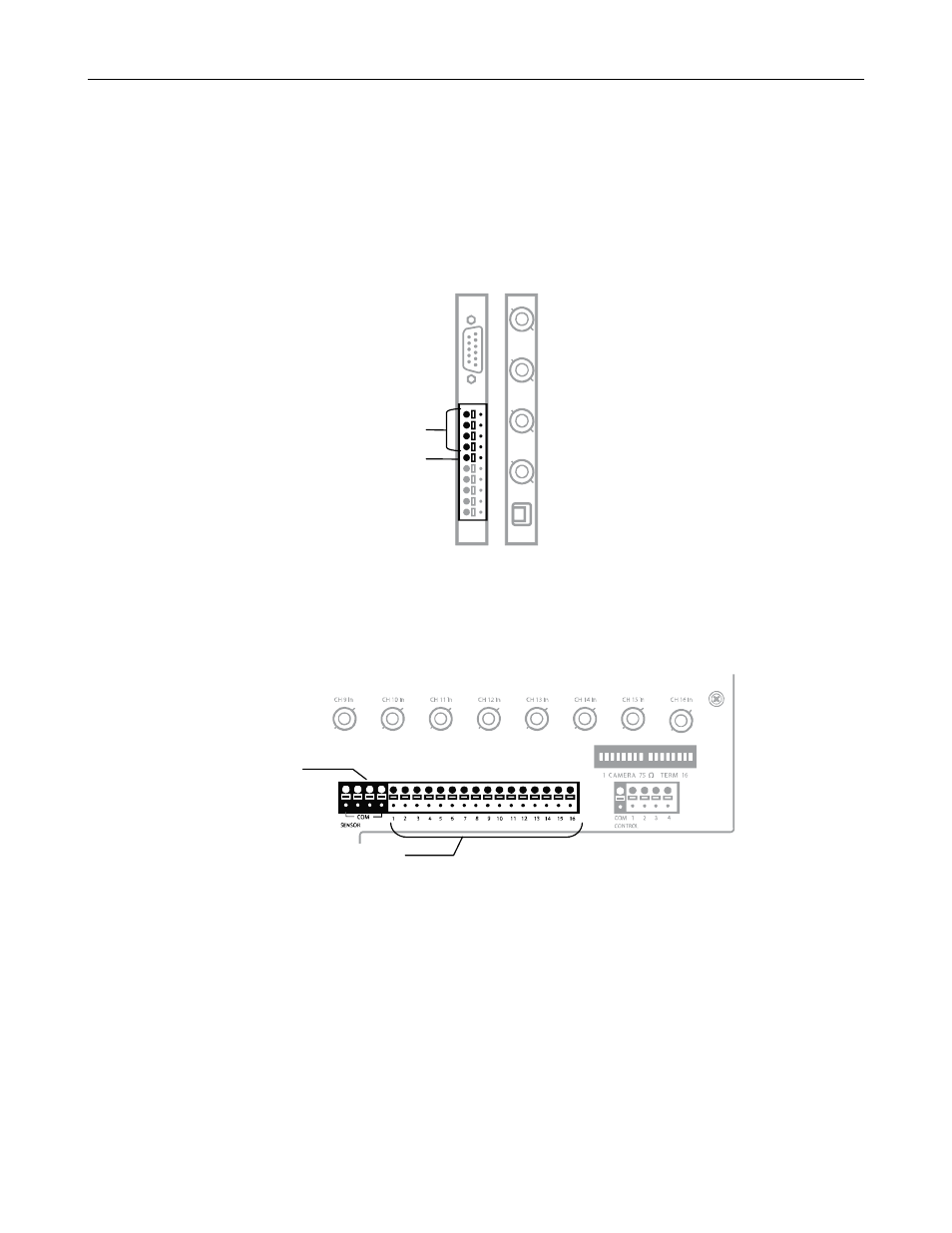

There is 1 Common Grounds (-) and 4 sensor inputs (+). There is no power supplied to the ports so an external power supply must be
used if power is necessary.
4 Channel
16 Channel
There are 4 Common Grounds (-) and 16 sensor inputs (+). There is no power supplied to the ports so an external power supply must
be used if power is necessary.
Common Ground
Sensor Inputs
Common Ground
Sensor Inputs
