20

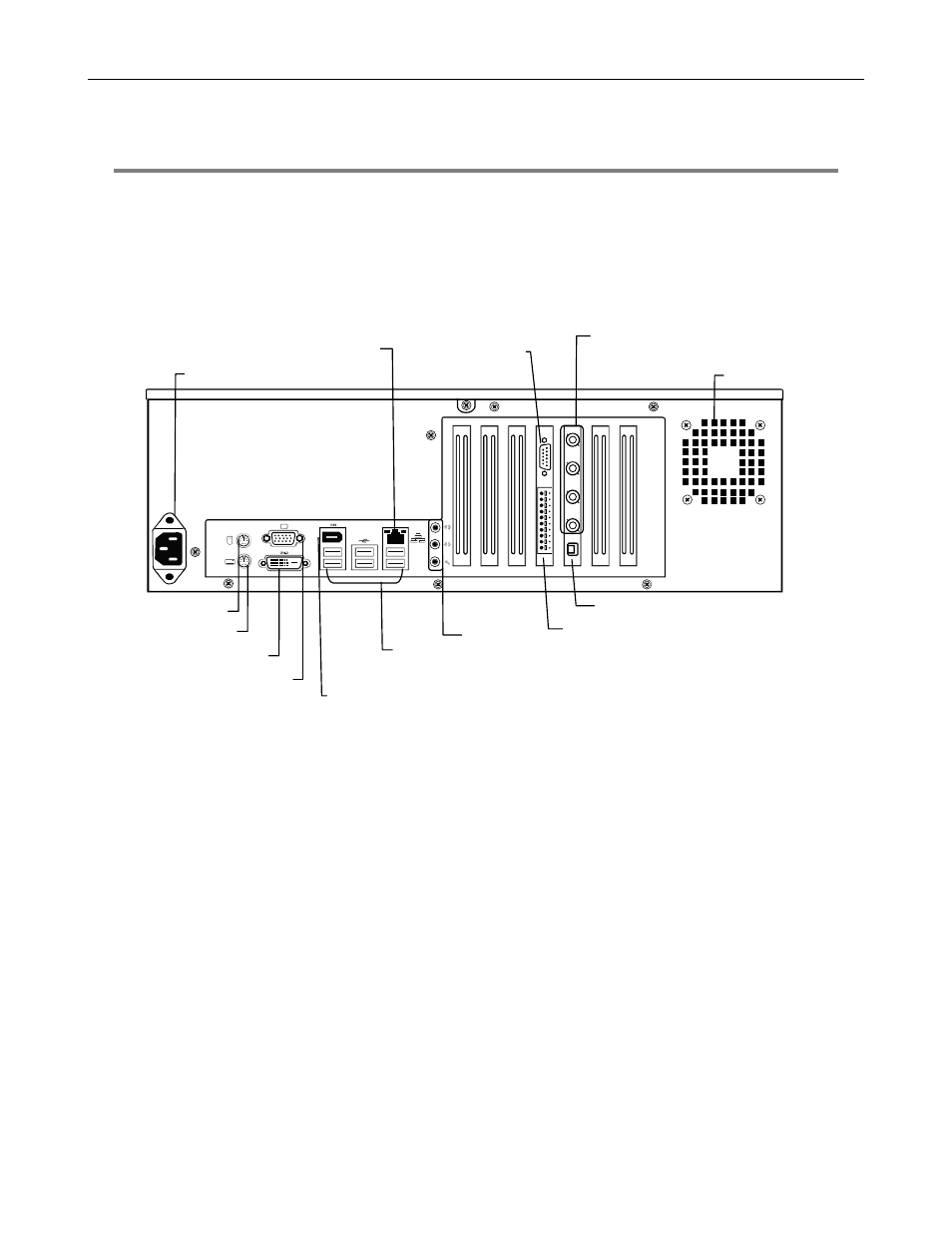

REAR PANEL CONNECTORS
The rear panel of the DVR contains the connectors used to attach cameras, sensors, and relays to the DVR. Below are diagrams that
outline the location and description of each connector:
XVS
4 Channel
BNC Connectors for Video Input
Cooling Fan
Audio/Spot
Monitor Output
AC Power Connector
RJ-45 Network Jack
Fire Wire
Audio
• Line In – line level
• Speaker Out
• Microphone In – not used
Sensors & Control Outputs
SVGA Output
PS/2 Mouse Input
PS/2 Keyboard Input
DVI-D Port
USB Ports
RS-485 Interface
