Model Number T90S3S08KS6XSN T90S3S10KS6XSN T90S3S16KS6XSN T90S3S22KS6XSN
Capacity KVA/KW 80/72 100/90 160/144 225/202.5
Topology True On-Line, Double Conversion, Advanced Multi-Level IGBT Technology
Input Voltage 480 V, Three-Phase, Three-Wire + Ground/Bypass Input, 480 V, Three-Phase, Three-Wire + Ground
Voltage Range 480 V, -20% to +15% (384 to 552 V Without Utilizing Battery)
Power Factor Greater than 0.99
Current THD <3% at 100% Load (No Input Filter Required)
Frequency 60 Hz (± 10%)
Output Voltage 480 V, Three-Phase, Three-Wire + Ground
Frequency 60 Hz, ±0.01% (In Free-Running Mode)
Voltage Regulation ±1.0% (0.5% Typical)
Power Factor 0.9 Lagging
Power Factor Range 0.9 to 1.0 Lagging
Voltage THD <2% for Linear Load, <5% for Non-Linear Load
Overload (Inverter) 125% for 2 Minutes; 150% for 60 Seconds
Overload (Bypass) 1000% for One Cycle
Battery DC Link 480 VDC
Ripple Voltage ±0.23% ±0.29%
Environment Temperature Range 32° to 104°F (0° to 40°C)
Relative Humidity 5% to 95% Non-Condensing
Heat Rejection 11,307 BTUs/Hour 14,133 BTUs/Hour 19,408 BTUs/Hour 27,292 BTUs/Hour
Efficiency (Full-Load) 95.6% 95.6% 96.5% 96.5%
Efficiency (20% Load) 92.5% 92.5% 94.6% 94.7%
Altitude 7380 Feet Maximum Without Derating (2250 Meters)
Audible Noise 69.5 dBA at 1 Meter
Dimensions Dimensions (W x D x H) 27.6 x 32.8 x 80.6 in.
(700 x 832 x 2047 mm)
35.4 x 32.8 x 80.6 in.
(900 x 832 x 2047 mm)
Weight 835 lbs. (388 kg) 855 lbs. (388 kg) 1160 lbs. (526 kg) 1230 lbs. (558 kg)
Features Digital Signal Processor (DSP) Control, Fully Digital IGBT Converter & Inverter, High Efficiency Over Wide Load Range,
Transformer-Less Design, N+1 and N+N (Up to Four in Parallel) Capability, Dual-Input Feed, Electronic Battery Isolation,
RS232 and Dry Contact Interface, Small Footprint, Lightweight Design
Standards UL 1778, CUL, ISO9001, ISO14001, ANSI C62.41 (IEEE 587), FCC Class A, Article 47, Part 15.B
Warranty Three Years Onsite (Optional Two Year Extended Warranty)
See Toshiba Warranty Policy for Full Details
Service 24-Hour, 365-Day Technical Support 1-877-867-8773
UPS ADJUSTABLE SPEED DRIVES MOTORS CONTROLS INSTRUMENTATION PLC
INDUSTRIAL DIVISION
13131 West Little York Road, Houston, Texas 77041
Tel 713/466-0277 Fax 713/466-8773
US 800/231-1412 Canada 800/872-2192 Mexico 001/800/527-1204
www.toshiba.com/ind
Copyright 12/2008 UPS G9000 B05 23 08-001
Available Through:
*UPSg9000MMCT081209*

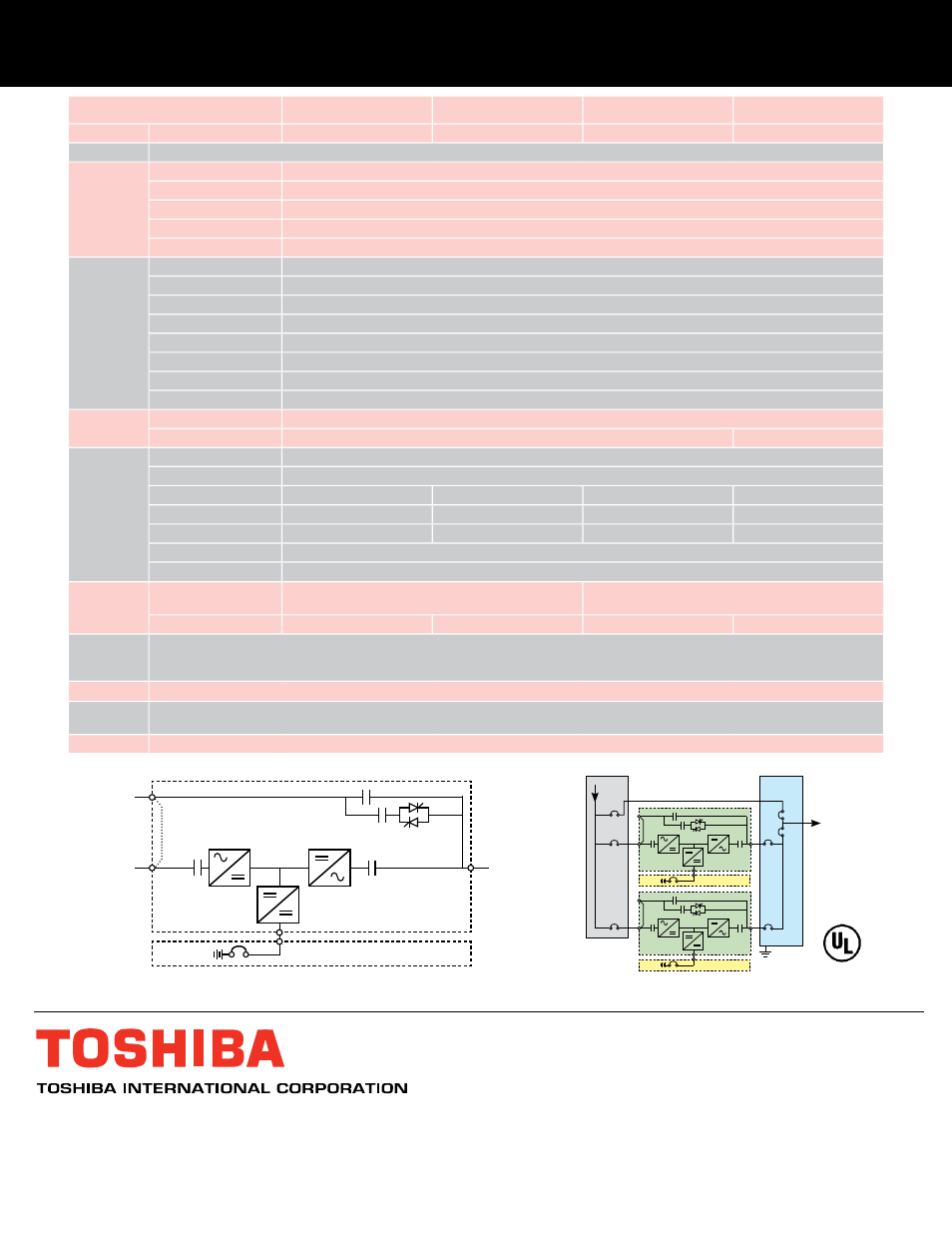

G9000 Series 80/100/160/225 KVA UPS
Battery
Cabinet
ac/dc IGBT
converter
dc/ac IGBT
Inverter
Static Transfer Switch
G9000 Series UPS Module
AC Output
480 Vac
Three-Phase,
Three-Wire with
Ground
AC Input
480 Vac
Three-Phase,
Three-Wire with
Ground
Bypass Input
480 Vac
Three-Phase,
Three-Wire with
Ground
dc/dc IGBT
chopper
Optional Jumper for Single-Source Input
Two G9000 UPS Modules in
Parallel Configuration
ac
OUTPUT
TIE
caBINET
ac
INPUT
UPS #1
UPS #2
