PKG-SVX14A-EN 15
dimensions &
weights
Installation

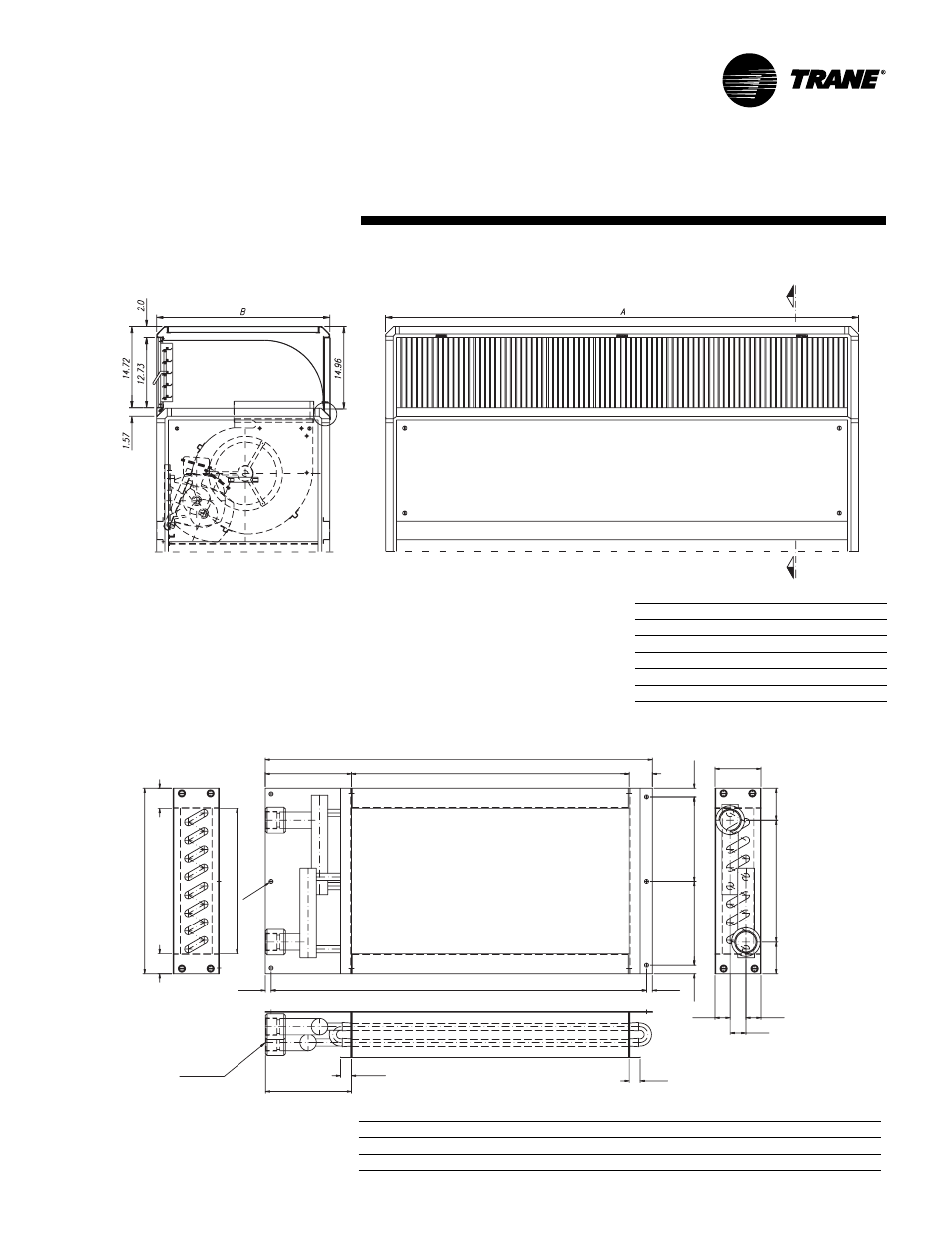

Plenum
Plenum dimensions & weight, in-lbs.
unit size A B weight
3-ton 31.89 22.24 44
5-ton 36.41 24.01 54
7.5-ton 40.94 28.74 73
10 & 12-ton 65.75 29.52 120
15-ton 80.31 29.52 146
A
B
C
D
E
F G
0.39
0.28
1.38
1.38
5.91 1.57
3.15
0.39
0.59
0.59
2.18
2.18
8.39
1.03 1.03
1.08
0.75
0.75
5.9
1.0 NPT
Hot water coil
3 & 5-ton units
SCWH/SCRH Hot water coil dimensions & weights, 3 & 5-ton units, in-lbs.
size A B C D E F G weight
3-ton 26.46 18.98 25.67 5.79 5.79 10.00 12.76 13
5-ton 30.98 23.50 30.20 7.040 7.040 12.50 15.26 18
