SECTION THREE: DESCRIPTION

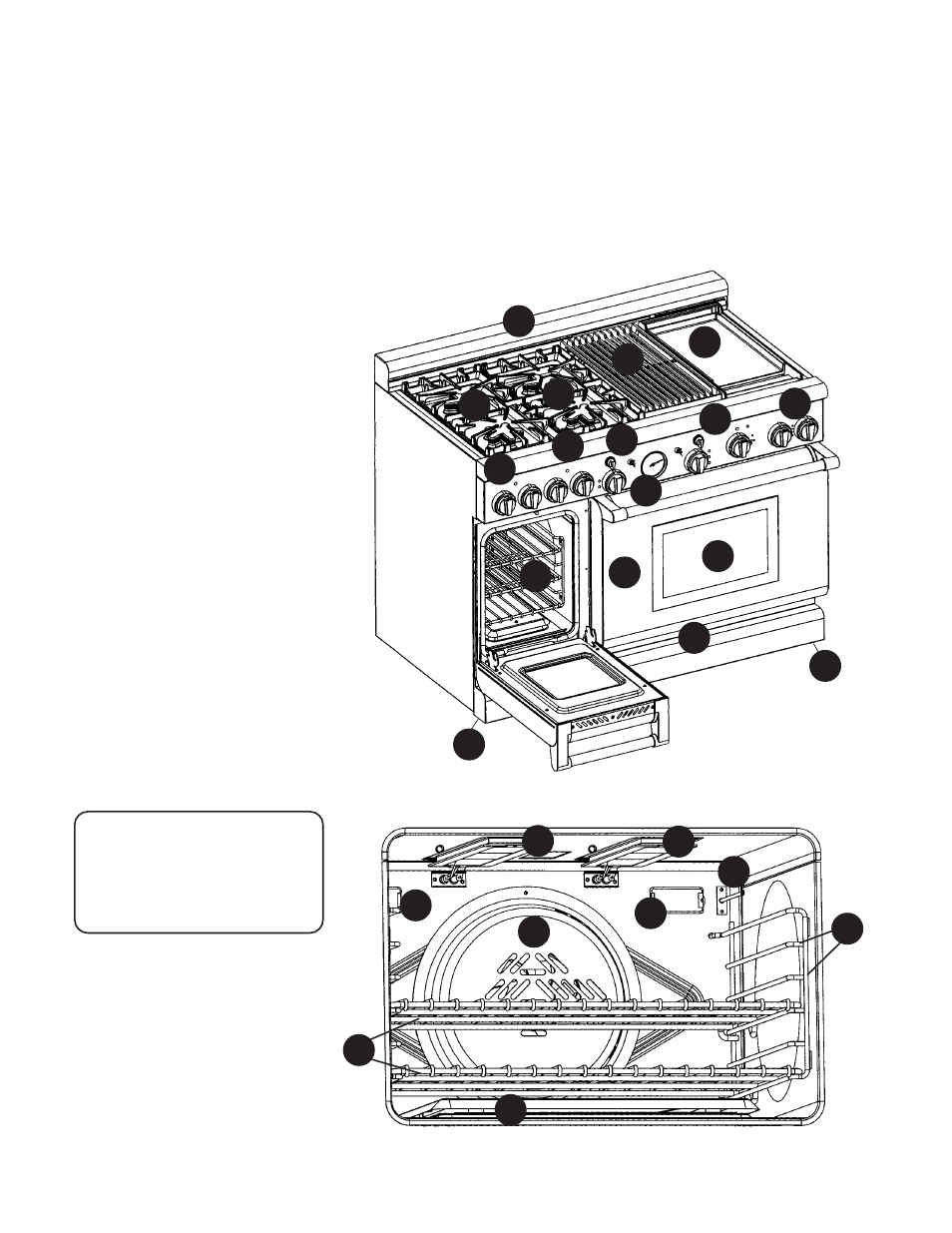

Model and Parts Identification
1. 22" High Shelf Backguard,
12" Low Back, or Island Trim
(Backguard ordered sepa-
rately)
2. Burner Grates & Burners
3. Grill
4. Griddle
5. Control Knobs, ExtraLow
®
Burners (2)
6. Control Knobs, Standard
Burners (2)
7. Control Knobs, Grill (1) and
Griddle (1)
8. Oven Controls, Temperature
Indicator
9. Oven Light Switch
10. Oven Door
11. Viewing Window
12. 12-inch Oven
(2 racks included)
13. Kick Panel (Product Rating
Label Located Behind Kick
Panel)
14. Range Feet (4)
Gas Model PG484GG - Shown Has a grill, a griddle and four burners, two ExtraLow® and two standard.
Model PG486GD – Has a griddle and six burners, two ExtraLow® and four standard.
Model PG486GL – Has a grill and six burners, two ExtraLow® and four standard.
Key for PG48GG Models
(shown)
Gas Oven Interior
15. Oven Interior Lights
16. Broil Burners
17. Oven Thermostat
18. Rack Guides
19. Oven Rack
(3 included, not shown)
20. Bake Burner (hidden)
21. Convection Fan Cover
8
WARNING:
To provide proper
ventilation, do NOT
remove range feet.
▲
!
1
2
2
3
4
14
7
6
5
11
9
10
14
12
13
8
9
15
16 16
17
18
15
19
20
21
