15
MODELS 12190, 12191 & 12193 3HP, 5HP & 6.5HP MODEL TILLERS
REF PART
No. No. DESCRIPTION QTY.
REF PART
No. No. DESCRIPTION QTY.
TINES, WHEELS
1 1100044 Bolt–Hex Head, 5/16-18 x 3/4,
Grade 5, Tine Mounting ............. 12
2 1817060 Tine–Twin-Edged, Left-Facing ....... 3
3 1732499 Locknut–Hex Hd., 5/16-18 ............ 12
4 1982612 Bolt–Hex Hd., 3/8-16 x 2 (tine
holder to tiller shaft) .................. 2
---- 1916783 Replacement Set of 6 Tines–
including three right-facing tines,
three left-facing tines; and all
required assembly hardware .....
1
4A 1733398 Locknut– Hex Hd., 3/8-16 ............. 2
5 1817059 Tine–Twin-Edged, Right-Facing..... 3
6 1916691001 Tine Holder– left side (A) .............. 1
1916702001 Tine Holder– left side (B) .............. 1
1916704001 Tine Holder– left side (C) .............. 1
6A 1916692001 Tine Holder– right side (A) ............ 1
1916703001 Tine Holder– right side (B) ............ 1
1916705001 Tine Holder– right side (C) ............ 1
7 55095-01 Wheel & Tire Assy–Left Side (A) ... 1
20918-01 Wheel & Tire Assy–Left Side (B) ... 1
2706-01 Wheel & Tire Assy–Left Side (C) ... 1
8 55095-02 Wheel & Tire Assy–Right Side (A) 1
20918-02 Wheel & Tire Assy–Right Side (B) 1
2706-02 Wheel & Tire Assy–Right Side (C) 1
9 9380 Clevis Pin–.312 x 1-3/4, secures
wheel hub to wheel shaft ........... 2
10 9338 Hair Pin Cotter .............................. 2
IMPORTANT: LEFT AND RIGHT SIDES OF TILLER ARE DETERMINED BY STANDING IN THE OPERATOR
POSITION (BEHIND THE HOOD) AND FACING THE DIRECTION OF FORWARD TRAVEL.

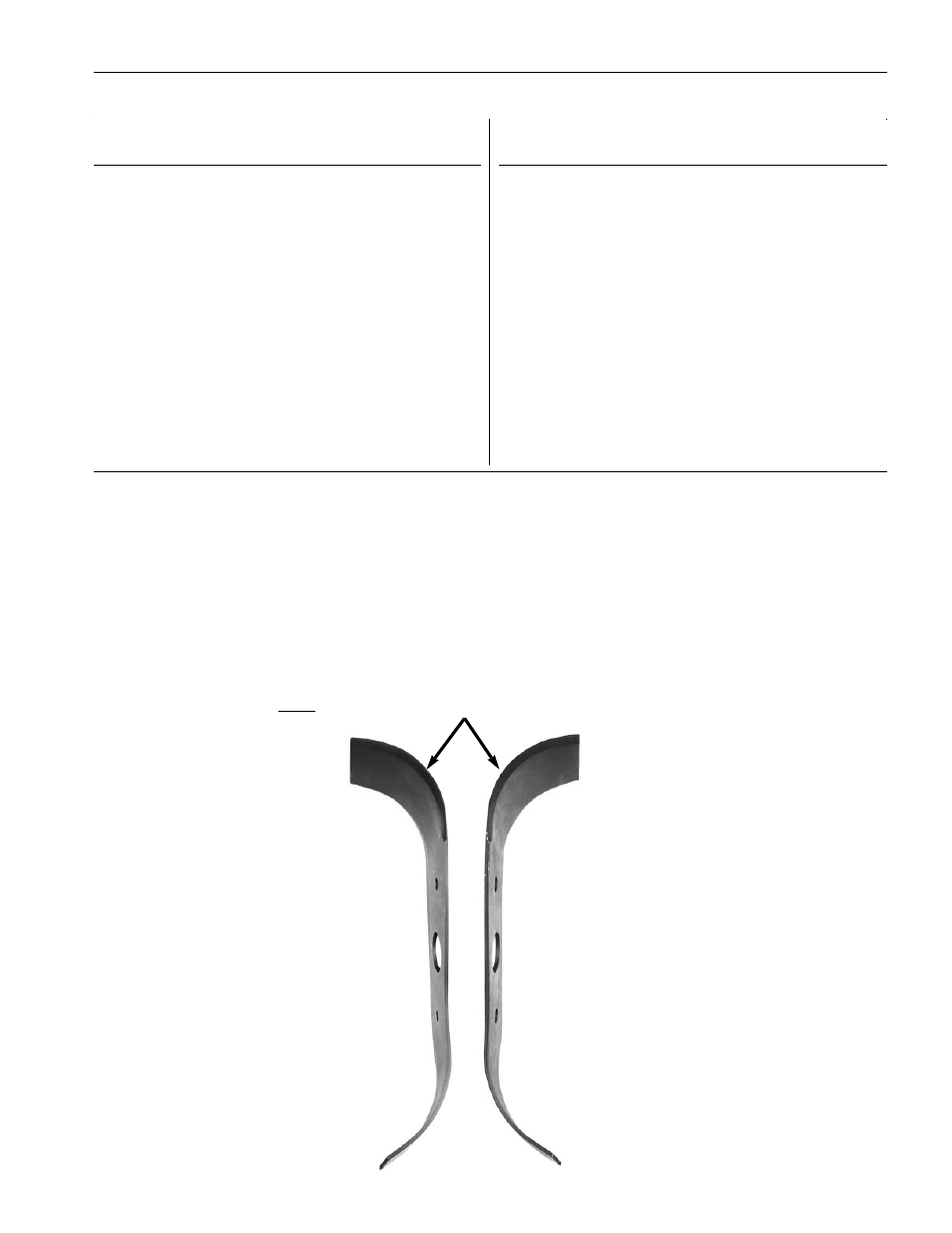

RIGHT-FACING TINE LEFT-FACING TINE
(TOP)
(BOTTOM)
MOUNT TINES SO THE CUTTING EDGE AT THE
TOP OF EACH TINE FACES THE OPERATOR
(A) Model 12190 – 3HP
(B) Model 12191 – 5HP
(C) Model 12193 – 6.5 HP
